■ 용도 : Flask, Petri Dish, Tube, Elisa Plate 등 샘플 혼합 및 배양
■ 시간, 온도, 속도 표시 및 설정 가능
■ Brushless DC Motor의 사용으로 저소음 및 뛰어난 안정성 보장
■ 뚜껑을 열면 자동으로 작동이 멈추는 Running Safety System
■ 자동 전원 복구, 과열 방지 장치 내장, Temperature Calibration 기능
■ 다양한 Platform 장착 가능 (별도 구매)

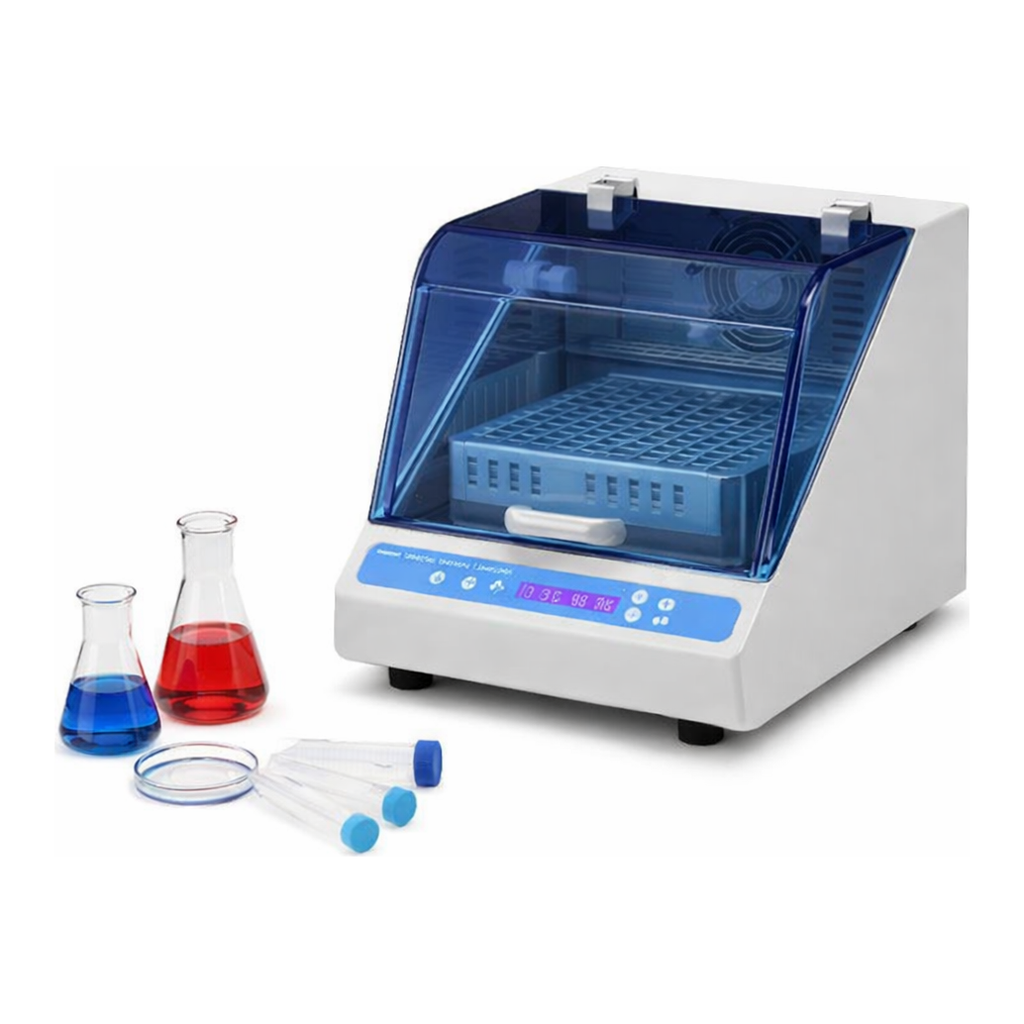

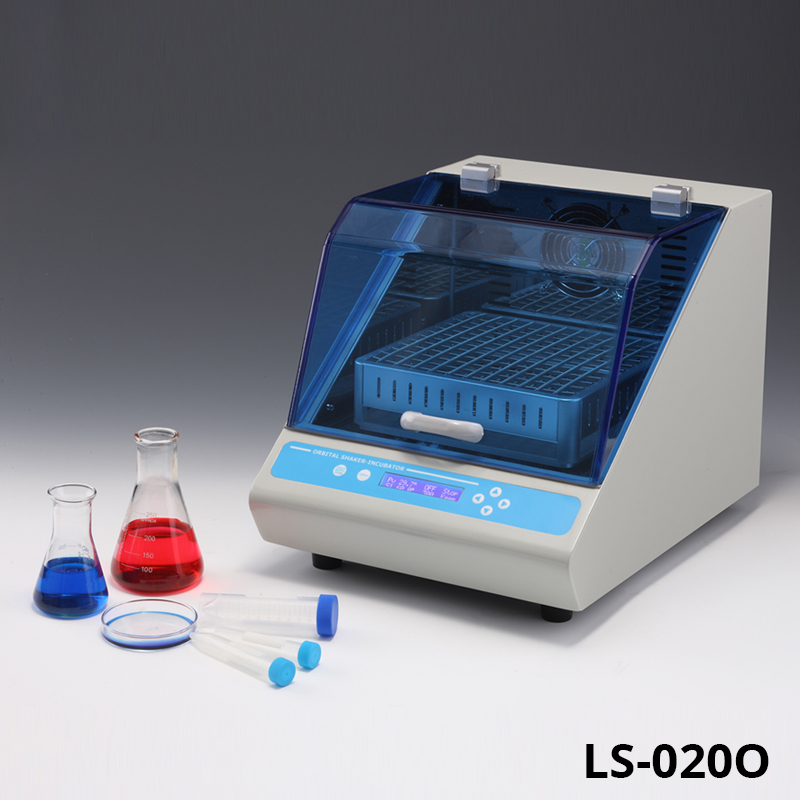

■ LK Labkorea Compact Table Top Shaking Incubator, 230×230mm Platform
| Cat. No |
Model |
Temp. Range |
Speed |
| S04-480-031 |
LS-020O |
Ambient +5℃ ~ 60℃ |
50 ~ 300 rpm |
Table Top Shaking Incubator, 350×350mm Platform
| Cat. No |
Model |
Temp. Range |
Speed |
| S04-480-035 |
LS-030O |
Ambient +5℃ ~ 60℃ |
50 ~ 250 rpm |
| | | |
| --- | --- | --- |Tool/Dispersing Element for T10 basic
| Cat. No. | | S04-480-031 | S04-480-035 |
| --- | --- | --- |
| Model | | LS-020O | LS-030O |
| --- | --- | --- |
| Speed Range | | 50 ~ 300 rpm | 50 ~ 250 rpm |
| Shaking Motion | | Orbital | |
| Mixing Orbit | | 20 mm | |
| Controller | Control | Microprocessor Thermo Controller | |
| Display | LCD | |
| Timer | 1 min ~ 99h 59min | |
| Temperature | Range | Ambient +5 ~ 60℃ | |
| Accuracy | Max. ±0.5℃ (at 37℃)
Temperature Calibration Function | |
| Uniformity |
| Heating Time | | Max. 15 min ( 25 → 60℃) | Max. 20 min ( 25 → 60℃) |
| Internal Chamber Height | | 182 mm | 325 mm |
| Plate Size | | 230×230 mm | 350×350 mm |
| Size | | w421×d320×h338 mm, 4 kg | w632×d502×h512 mm, 10 kg |
| Electric Supply | Power | 220 V, 50/60 Hz | |
| Fuse | 250 V, 3A, Ø5×20 | |
| Max. Consumption | 350 W | 600 W |
Optional Platform for LS-020O
| Cat. No |
Model |
Description |
| S04-480-951 |
LS-1 |
for 5×250 ml Conical Flask |
| S04-480-954 |
LS-2 |
for 9×100 ml Conical Flask |
| S04-480-957 |
LS-3 |
for 10×50 ml Tube |
| S04-480-960 |
LS-4 |
for 18×15 ml Tube |
| S04-480-963 |
LS-5 |
Spring Wire Rack |
| S04-480-966 |
LS-6 |
for 4 Elisa Plate or Deep-Well Plate |
| S04-480-969 |
LS-7 |
for 5 Petri Dish |
Optional Platform for LS-030O
| Cat. No |
Model |
Description |
| S04-480-972 |
LS-T1 |
for 9×250 ml Conical Flask |
| S04-480-975 |
LS-T2 |
for 25×100 ml Conical Flask |
| S04-480-978 |
LS-T3 |
for 16 Petri Dish |
| S04-480-981 |
LS-T4 |
Spring Wire Rack |
