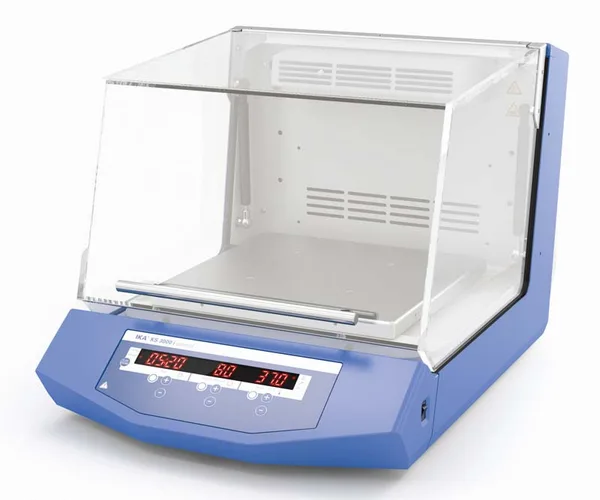

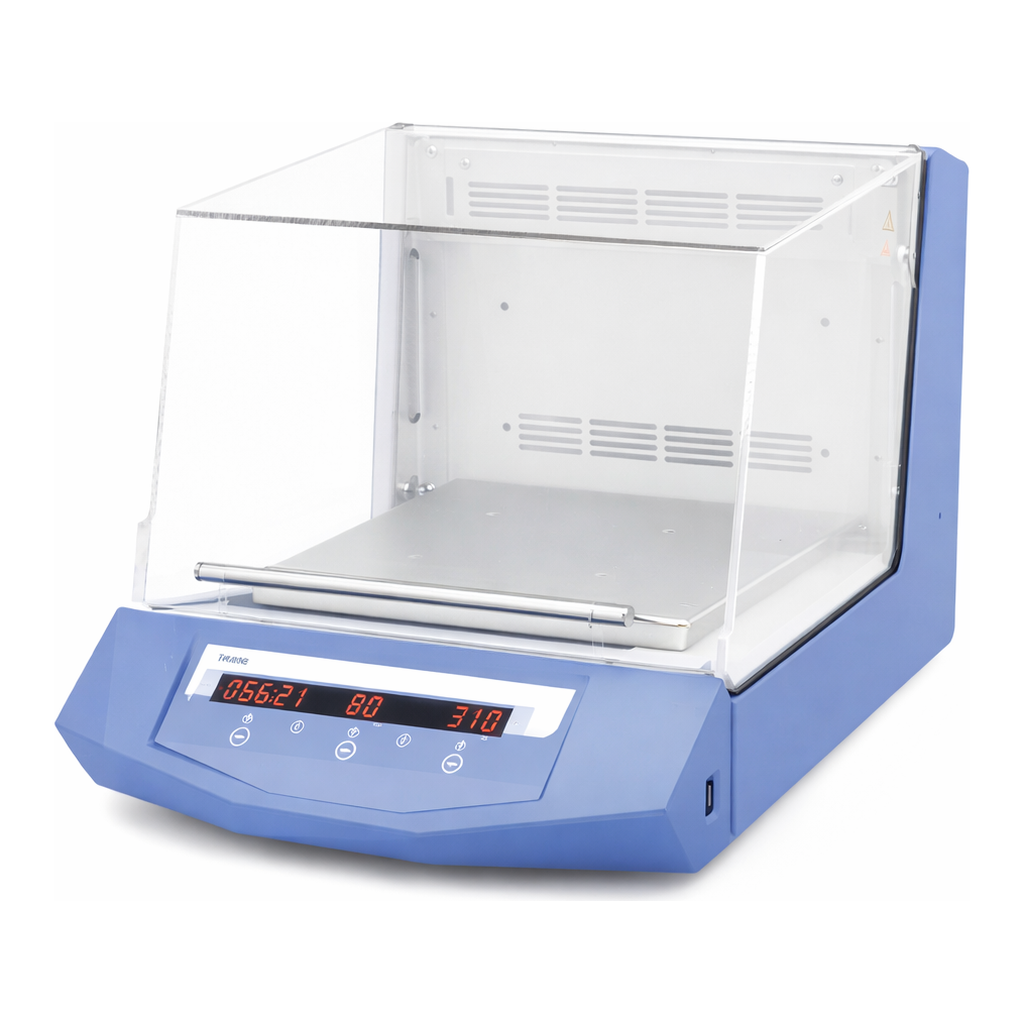

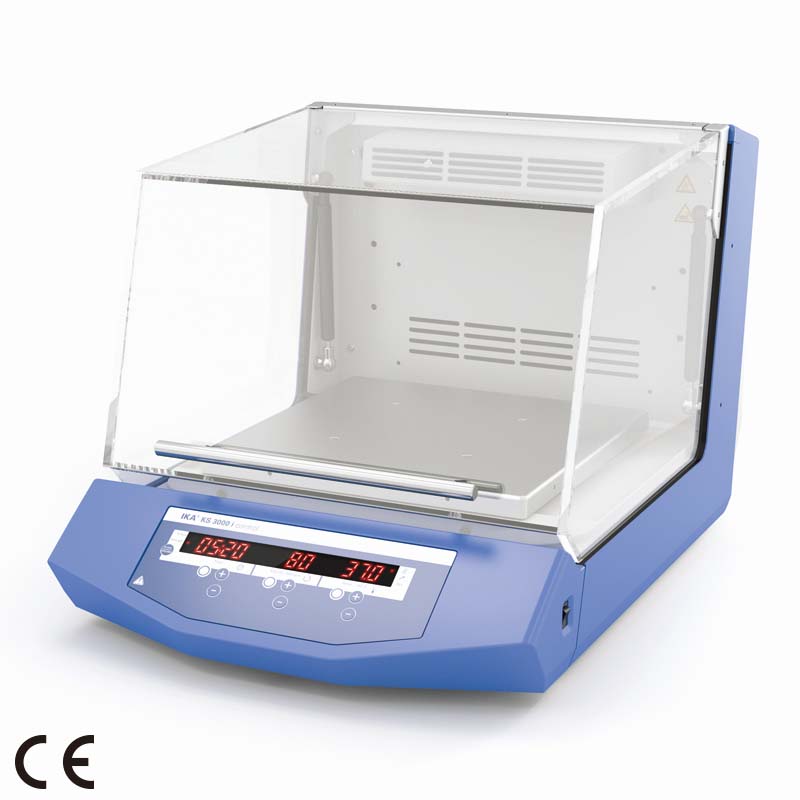

IKA Digital Incubating Shaker 인큐베이팅 쉐이커, KS 3000 & KS 4000

■ Shaking Movement : Orbital (원형운동)

■ Integrated PID Temperature Control (PT1000.60 Sensor)
■ 뚜껑을 열면 자동으로 장비는 멈춤
■ Large LED Display (Temp. and Speed)
■ Cooling Coil이 장착되어 있어 -10℃까지 온도 조절이 가능
(KS3000ic control) - 단 3℃의 Feeding Water가 필요
■ Protection class acc. to DIN EN 60529 (IP30)

IKA KS 3000 소형 인큐베이팅 쉐이커, 7.5 Kg

Cat. No.	Model	Type	외부 냉각 장비
S04-05-158	3940000	KS 3000 i control	X
S04-05-160	3940100	KS 3000 ic control	O

KS 4000 대형 인큐베이팅 쉐이커, 20 Kg

Cat. No.	Model	Type	외부 냉각 장비
S04-05-163	3510000	KS 4000 i control	X
S04-05-170	3510100	KS 4000 ic control	O

Specifications

Cat. No.	S04-05-158	S04-05-160	S04-05-163	S04-05-170
Type	KS 3000 i control	KS 3000 ic control	KS 4000 i control	KS 4000 ic control
Temp. Range	5℃ ~ 80℃	-10℃ ~ 80℃ (외부냉각장비)	5℃ ~ 80℃	-10℃ ~ 80℃ (외부냉각장비)
Shaking Diameter	20 mm
Max. Shaking Weight	7.5 kg		20 kg
Motor 입출력	45/10 W		82/24 W
Speed Range	10 ~ 500 rpm
Timer	1 sec ~ 999 hr
Heat Output	1000 W
Temp. Stability	±0.1 K
Size	w465×d695×h430 mm		w580×d750×h525 mm
Weight	35 kg	37 kg	50 kg	55 kg
Interface	RS232, USB		RS232
전기규격	230 V, 50/60 Hz

• Optional Accessory

For KS 3000 소형 인큐베이팅 쉐이커, 7.5 Kg

Cat. No.	Model	Type	Description
S04-05-521	8017400	AS260.1	Universal Attachment
S04-05-528	3115500	AS260.2	Fixing Clip Attachment
S04-05-535	3120600	AS260.3	Dish Attachment
S04-05-542	3120900	AS260.5	Separating Funnel Attachment

For KS 4000 대형 인큐베이팅 쉐이커, 20 Kg

Cat. No.	Model	Type	Description
S04-05-749	8022200	AS4000.1	Universal Attachment
S04-05-756	3710100	AS4000.2	Fixing Clip Attachment
S04-05-763	3710600	AS4000.3	Dish Attachment

공통 Accessory

Cat. No.	Model	Type	AS4000.2에 장착 가능 수량	Description
S04-05-912	1234300	AS2.1	55개	Fixing Clip, 25 ml용
S04-05-918	1234400	AS2.2	38개	Fixing Clip, 50 ml용
S04-05-924	1234500	AS2.3	25개	Fixing Clip, 100 ml용
S04-05-930	1234600	AS2.4	16개	Fixing Clip, 250 ml용
S04-05-936	1234700	AS2.5	11개	Fixing Clip, 500 ml용
H03-05-650	4720000	labworldsoft	-	Software
