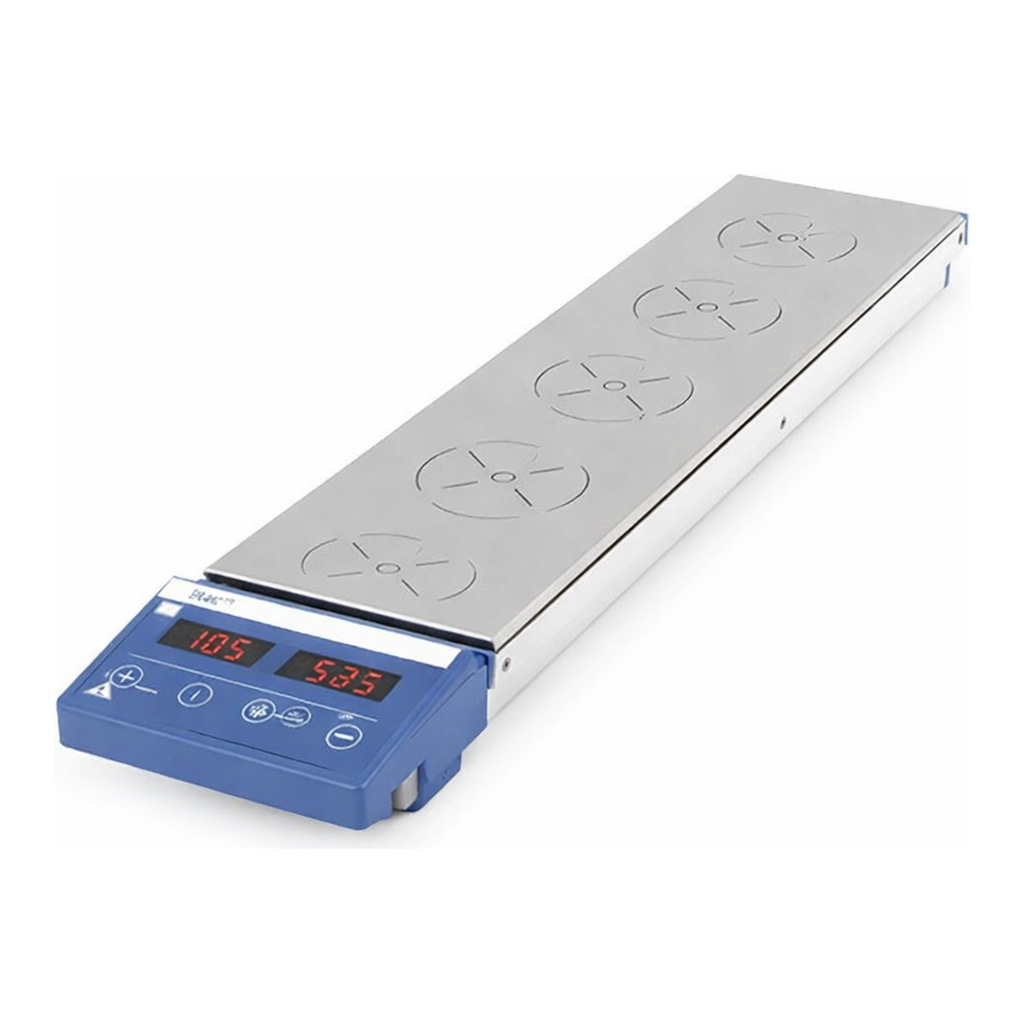

IKA Multi Hotplate Stirrer 멀티 가열 자력 교반기, RT-series

■ Heating Plate에 균일하고 정확한 온도 분포도 실현

■ 점성강한 Sample도 무리없이 Stirring 하는 강력한 Motor
■ Stirring bar의 튐현상을 방지하는 High Magnetic Adhesion
■ 각 Position의 Sample에 대한 동일한 온도 및 교반 조건 실현
■ Protection class acc. to DIN EN 60529 (IP42)
■ IKA

| | | | |
| --- | --- | --- | --- |멀티 가열 자력 교반기, RT-series
| Cat. No | Model | Type | Position |
| --- | --- | --- | --- |
| S07-05-421 | 3690600 | RT 5 | 5 position |
| S07-05-431 | 3691100 | RT 10 | 10 position |
| S07-05-441 | 3692600 | RT 15 | 15 position |

| | | | |
| --- | --- | --- | --- |Tool/Dispersing Element for T10 basic
| Cat. No. | S07-05-421 | S07-05-431 | S07-05-441 |
| --- | --- | --- | --- |

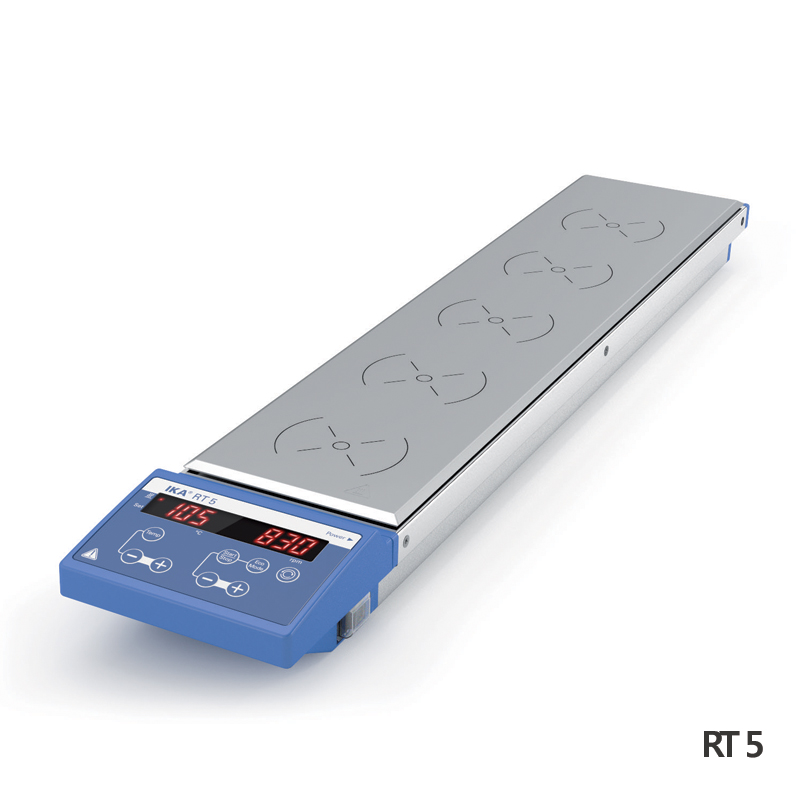

| Type | RT 5 | RT 10 | RT 15 |
| --- | --- | --- | --- |
| Stirring Position | 5 (1×5) | 10 (2×5) | 15 (3×5) |
| Motor Rating (Input/Output) | 7.2 / 1.8 W | 14.4 / 3.6 W | 21.6 / 5.4 W |
| Heat Output | 175 W | 375 W | 580 W |
| Stirring Quantity(H2O) | 400 ml / Position | | |
| Speed Display | LED Display 0 ~ 1000 rpm (10 rpm step) | | |
| Max. Magnetic Bar | L30×Φ8mm | | |
| Temp. Range | RT-120℃ (LED Display, ±1 K ) | | |
| Plate Material | Aluminum ally | | |
| Size (w×d×h, mm) | 120×610×60 | 190×610×60 | 280×610×60 |
| Heating Plate (w×d, mm) | 110×495 | 180×495 | 270×495 |
| Power | 230V, 50/60 Hz | | |
