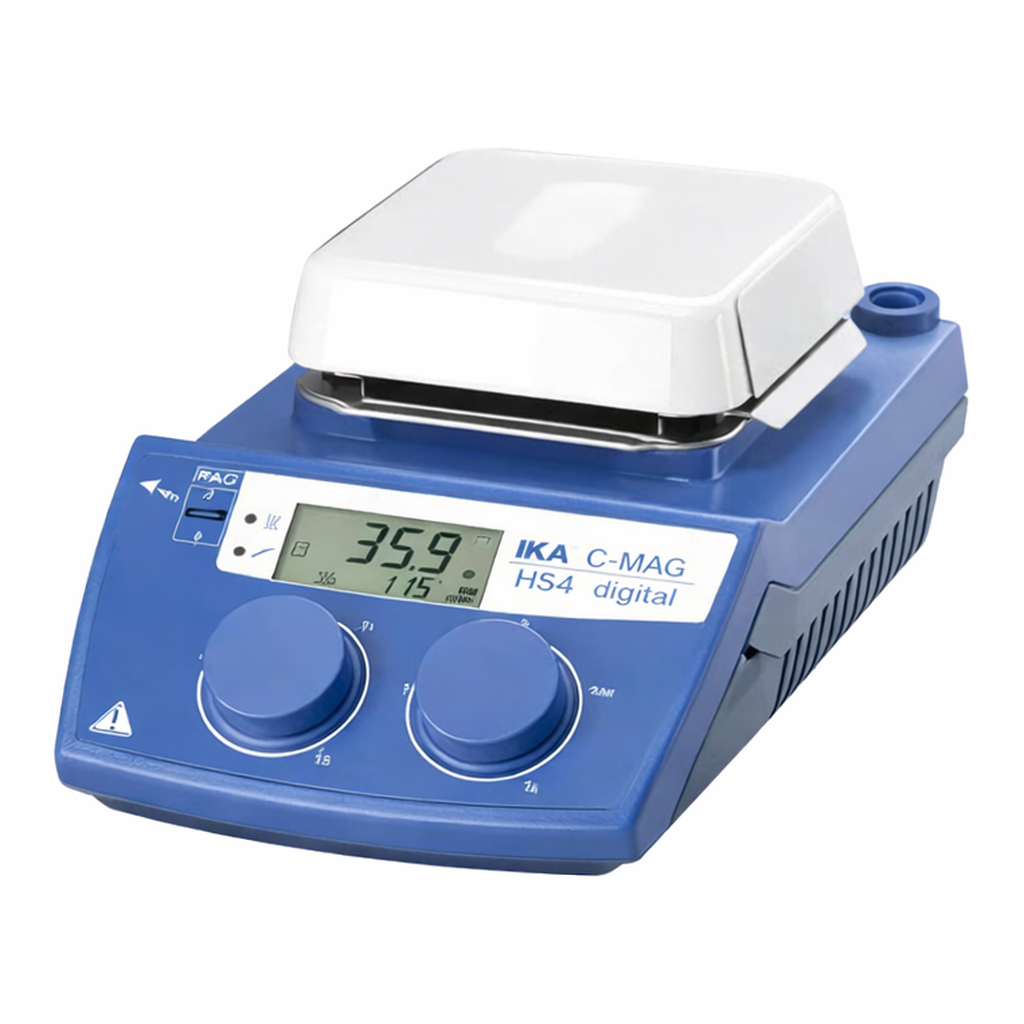

Digital IKA Hotplate Stirrer 디지털 가열 자력 교반기, C-Mag HS Digital

■ C-Mag HS 7 Digital Package : C-Mag HS7 Digital, H16V, H38, H44

■ 550℃ 이상의 비정상적 고온일경우 자동으로 멈추게하는 Safety Circuit System
■ 점성강한 Sample도 무리없이 Stirring 하는 강력한 Motor
■ LCD Digital display (Setting Temperature)
■ PT1000 센서포함, 더욱 더 정밀해진 Setting Accuracy (±1K)
■ Stirring Bar의 튐현상을 방지하는 High Magnetic Adhesion
■ Motor와 Hotplate 의 기능을 일정하게 유지하는 Microprocessor
■ 화학물질에 강한 저항성을 가지는 One-piece Glass-ceramic Top
■ Protection class acc. to DIN EN 60529 (IP21)
■ 기타 악세사리는“Accessory” 594 ~ 595 Page 참조
■ IKA

| | | | |
| --- | --- | --- | --- |가열 자력 교반기, C-Mag HS Digital
| Cat. No | Model | Type | 용량 |
| --- | --- | --- | --- |

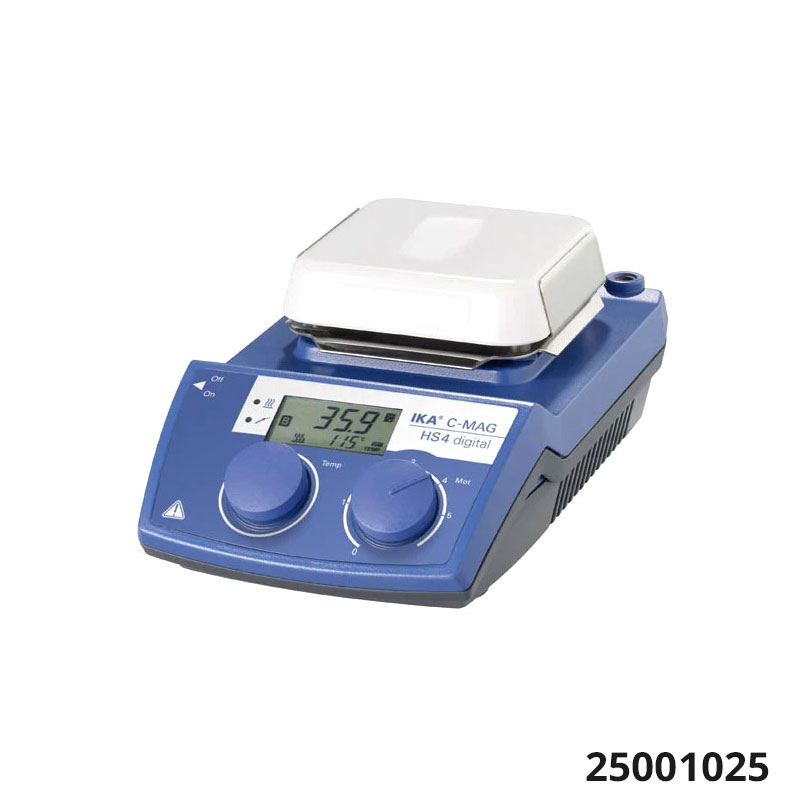

| S07-05-210 | 25001025 | C-Mag HS4 Digital | 5 L |
| S07-05-220 | 3487000 | C-Mag HS7 Digital | 10 L |
| S07-05-230 | 25001026 | C-Mag HS10 Digital | 15 L |
| S07-05-225 | 3487000P | HS7 Digital Package | 10 L |

| | | | | |
| --- | --- | --- | --- | --- |Tool/Dispersing Element for T10 basic
| Cat. No. | | S07-05-210 | S07-05-220 | S07-05-230 |
| --- | --- | --- | --- | --- |
| Type | | C-Mag HS 4 Digital | C-Mag HS 7 Digital | C-Mag HS 10 Digital |
| --- | --- | --- | --- | --- |
| Stirring Quantity(H2O) | | 5 L | 10 L | 15 L |
| Speed Range | | 100 ~ 1500 rpm | | |
| Temperature Range | | 50 ~ 500℃ | | |
| Heat Output | | 250W | 1000W | 1500W |
| Display | | LCD Display (±0.5K) | | |
| Fixed Safety Circuit | | 550℃ | | |
| Material Heating Plate | | Ceramic | | |
| Size
(mm) | Plate (w×d) | 100×100 | 180×180 | 260×260 |
| 본체 (w×d×h) | 150×260×105 | 215×330×105 | 300×415×105 |
| Power | | 230V, 50/60 Hz | | |
