Thermo Scientific™

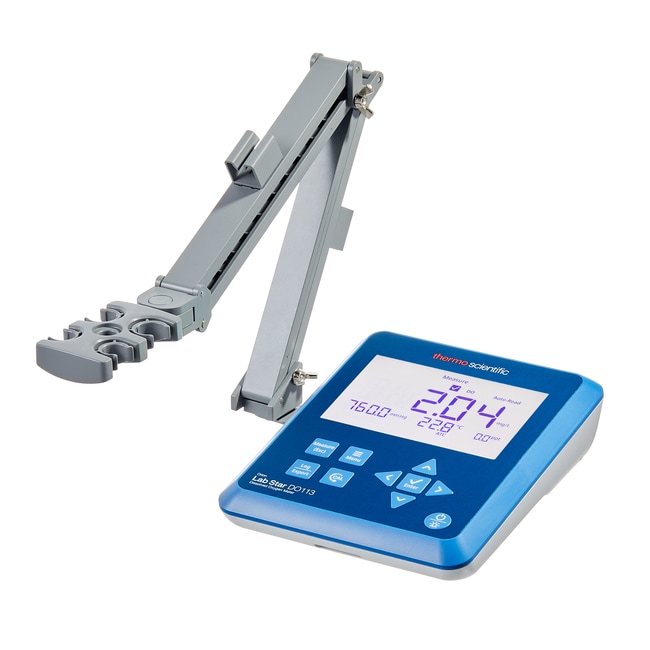

Orion Lab Star DO Dissolved Oxygen Bench Meters

Orion Lab Star DO113 dissolved oxygen bench meters measure DO as % saturation or concentration with temperature, feature large backlit display for easy viewability, and offer small footprint to save bench space. This DO meter is ideal for simplified, budget-friendly lab testing and data recording.

Measure dissolved oxygen as percent saturation or concentration in ppm or mg/L with temperature using the Orion Lab Star DO113 DO bench meter. Featuring a large, backlit display for easy viewability and small footprint to save bench space, this DO meter is ideal for simplified, budget-friendly testing. Use the onscreen stabilizing and ready indicators to help identify when DO meter readings are complete. View active calibration logs with date and time stamp, record key measurements using the 500-point data log with date and time stamp, and output all logs to a printer or computer.

사양

설명Orion Lab Star DO113 dissolved oxygen bench meter with stand

출력Computer or printer (STARA-106)

포함Meter with electrode stand, PC cable, universal power adapter

용도(애플리케이션)Meter and Stand Option, Select and Purchase The Electrode Separately

Measurement ModesDissolved Oxygen (% Saturation with Temperature), Dissolved Oxygen (mg/L with Temperature), Dissolved Oxygen (ppm with Temperature)

센서 유형Polarographic

범위(폴라로그래픽 DO)0.0 to 300.0 % saturation; 0.00 to 30.0 mg/L or ppm

분해능(폴라로그래픽 DO)0.1, 1 % saturation; 0.01, 0.1 mg/L or ppm

정확도(폴라로그래픽 DO)±2 % saturation ± 1 LSD; ±0.2 mg/L ± 1 LSD

압력 범위400.0 to 850.0 mmHg; 0.533 to 1.133 bar

보정 모드100 % saturation, 0 % saturation, custom concentration value

온도(미터법) 범위-5.0°C to +105.0°C

분해능(온도)0.1°C, 0.1°F

정확도(온도)±0.3°C, ±0.5°F

온도 선택Manual or automatic with ATC temperature probe

온도 프로브 보정1 point temperature offset calibration

디스플레이 유형5 in. backlit LCD

백라이트 옵션Yes

메모리Non-volatile

데이터 포인트500 data sets with time and date

로그 기능 유형Automatic with Auto-Read and Timed read modes, manual with Continuous read mode

데이터 관리 세부 정보Continuous, Auto-Read and Timed read modes

알람 출력Calibration reminder alarm

입력9-pin MiniDIN for DO with built-in ATC

인증/적합성CE, TUV 3-1, FCC Class A

IP 등급IP54

AC 어댑터Universal 100-240 V 50/60 Hz power supply with twist-and-lock meter connection and interchangeable wall plugs for US/Japan, Euro, UK/Singapore, Australia/New Zealand and China outlets

치수(길이 x 폭 x 높이)187.2 x 155.2 x 61.7 mm, 7.37 x 6.11 x 2.43 in.

중량(미터법)700 grams

중량(영국식 단위)1.54 lb.

상대 습도 범위5 to 85%, non-condensing

워런티3 year meter warranty

Percent Saturation Range Polarographic DO0.0 to 300.0 % saturation

Unit SizeEach
