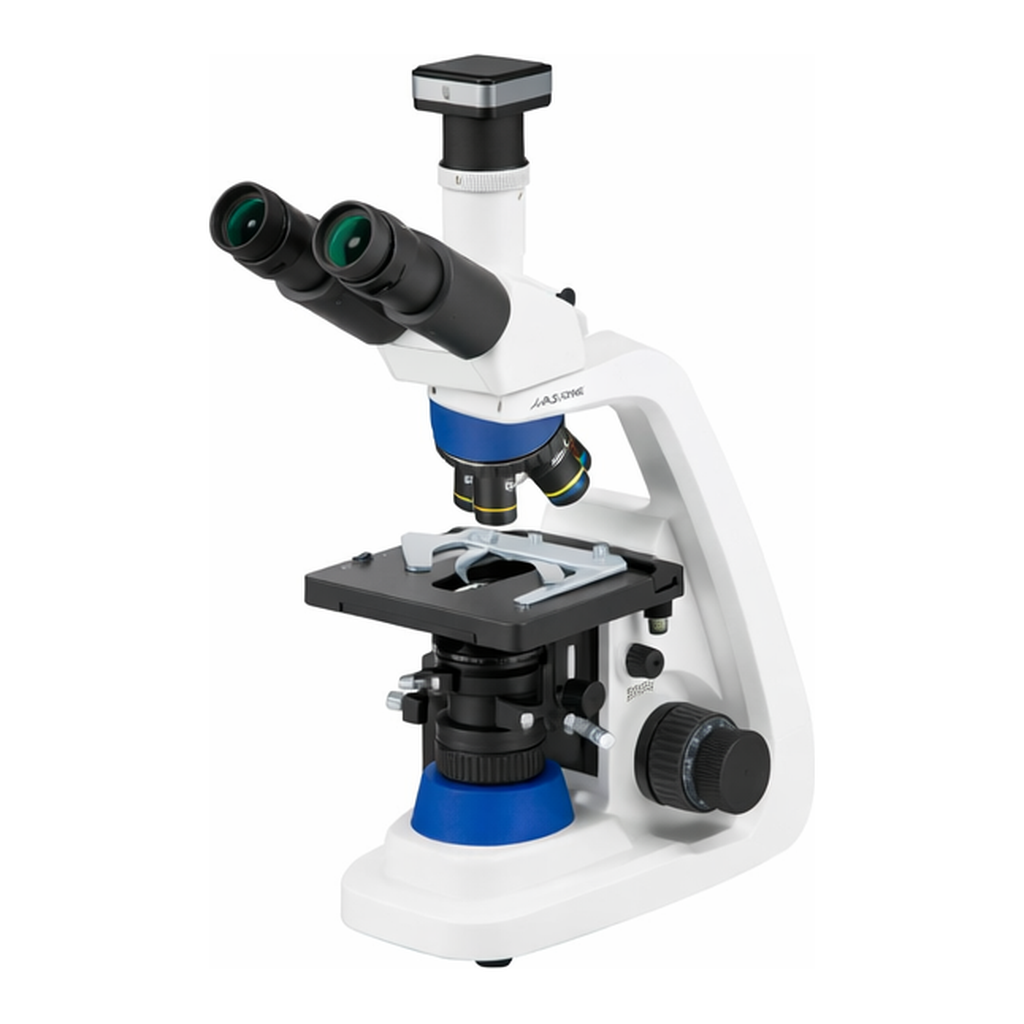

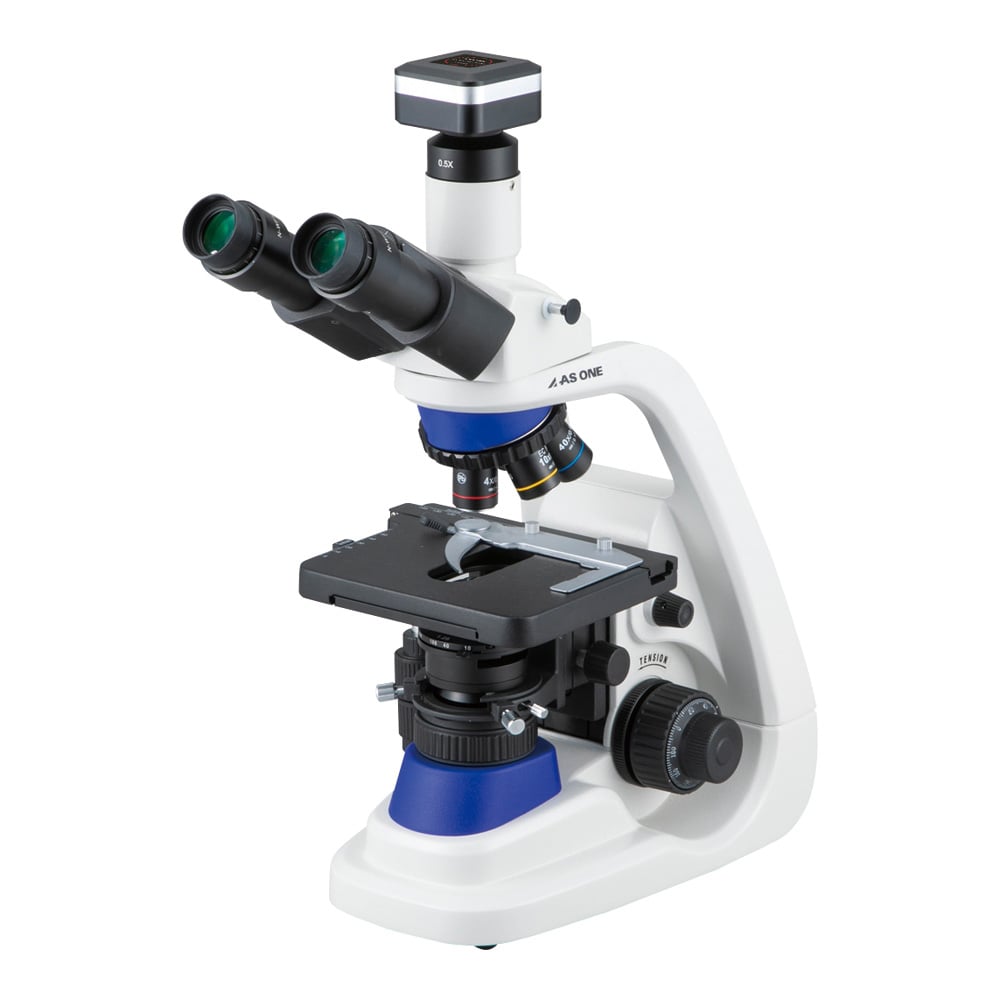

AS ONE 4-749-12 EC plan lens biomicroscope (camera set)　MP38C500N

Features

• It uses a high-resolution CCIS(R) optics EC-plan chromatic objective lens to provide bright and clear contrast images.
• It uses full-scale Kaler lighting to reduce heat damage to the sample.
• Digital microscope camera with excellent color reproduction.
• The operating system is placed in a low position, so you can operate it while keeping your hand on the table.
• Plug and Play simplifies device installation.
• You can write while moving the stage with the left handle.
• It comes with a USB camera for convenient saving of sample images.

Spec

• Overall Magnification: 40 ~ 1000 x
• Camera pixels: 5 million pixels
• Number of pieces: 1 set
• Optics: Infinity color correction (CCIS ®)
• Capacitor: Abbe type N.A. 1.25 (oil immersion)/0.90 (dry) for Kehler lighting
• Lighting: 3W (LED Kaler Lighting)
• Eyepiece: 10 x (field of view/20)
• XY Stage (travel distance): Left/Right/76 mm, Front/Back/50 mm (holds 2 slides)
• Focusing: Uniaxial coarse fine motion system
• Size: Microscope body/210 x 410 x 415 mm, Stage/175 x 140 mm, Camera/60 x 60 x 32 mm
• Objective: EC plan achromatic lens 4 x/N.A. 0.1 x 10 x/N.A. 0.25 x S 40 x/N.A. 0.65 x S 100 x/N.A. 1.25 (oiL)
• Lighting Source: 100 ~ 240 VAC 50/60 Hz
• Cylindrical type: tilt angle 30 degrees
• Weight: approx. 7.2 kg, Camera/approx. 200 g
