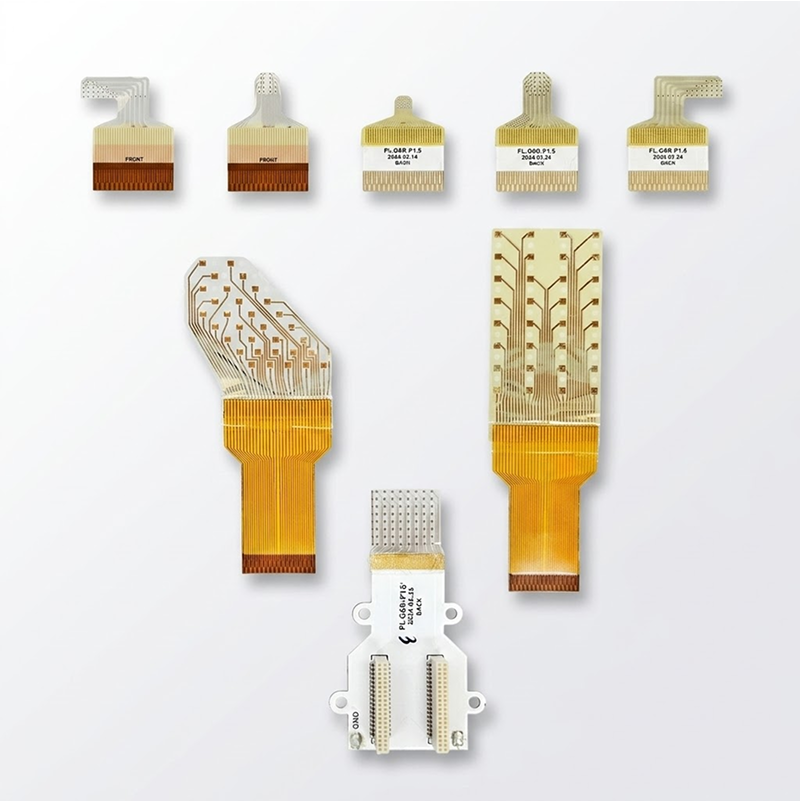

GBRAIN Electrode arrays for animal experiments FPCB(Long)10cm 32ch Au

상품 한눈에 보기

32채널 금(Au) 전극 어레이로 소·대동물 신경 실험에 적합한 FPCB(Long) 타입. 고해상도 신경 신호 측정 및 자극 가능. 다양한 커스터마이즈 옵션 제공. 인간 임상시험 진행 중이며 관련 학술 논문 다수 게재.

카탈로그번호: 9개 옵션
브랜드: GBRAIN
카테고리: ECoG Arrays
판매단위: ea

#GBRAIN #ECoG Arrays #Surface Electrodes

카탈로그

9개 옵션

회원가입 없이 바로 구매하세요

가입하지 않아도 비회원가로 구매하실 수 있습니다.

카탈로그 번호 · 상품 설명출고판매가담기

GBRAIN 32ch Au attached MEA_A32-Au-1.25 x 1.5, 100um, Rat / Mouse, CN32, Non-sterile, single use판매 단위 ea

재고보유재고보유

900,000원VAT 포함 990,000원

GBRAIN 32ch Au attached MEA_A32-Au-1.97 x 7.97, Left, 150um, Rat / Mouse, CN32, Non-sterile, single use판매 단위 ea

재고보유재고보유

900,000원VAT 포함 990,000원

GBRAIN 32ch Au attached MEA_A32-Au-1.97 x 7.97, Right, 150um, Rat / Mouse, CN32, Non-sterile, single use판매 단위 ea

재고보유재고보유

900,000원VAT 포함 990,000원

GBRAIN 32ch Au attached MEA_A32-Au-2.0 x 1.8, 150um, Rat / Mouse, CN32, Non-sterile, single use판매 단위 ea

재고보유재고보유

900,000원VAT 포함 990,000원

GBRAIN 32ch Au attached MEA_A32-Au-2.3 x 1.5, 100um, Rat / Mouse, CN32, Non-sterile, single use판매 단위 ea

재고보유재고보유

900,000원VAT 포함 990,000원

GBRAIN 32ch Au attached MEA_A32-Au-2.9 x 2.9, 150um, Rat / Mouse, CN32, Non-sterile, single use판매 단위 ea

재고보유재고보유

900,000원VAT 포함 990,000원

GBRAIN 64ch connector_CN64, Omnetics - Zif, Non-sterile, Reusable판매 단위 ea

재고보유재고보유

600,000원VAT 포함 660,000원

GBRAIN 32ch connector_CN32, Omnetics - Zif, Non-sterile, Reusable판매 단위 ea

재고보유재고보유

400,000원VAT 포함 440,000원

GBRAIN 16ch connector_CN16, Omnetics - Zif, Non-sterile, Reusable판매 단위 ea

재고보유재고보유

360,000원VAT 포함 396,000원

재고문의·견적요청 옵션은 실시간 상담으로 납기를 확인해 드립니다 · 연구비 카드 결제 가능

GBRAIN · GBRAIN Electrode arrays for animal experiments FPCB(Long)10cm 32ch Au

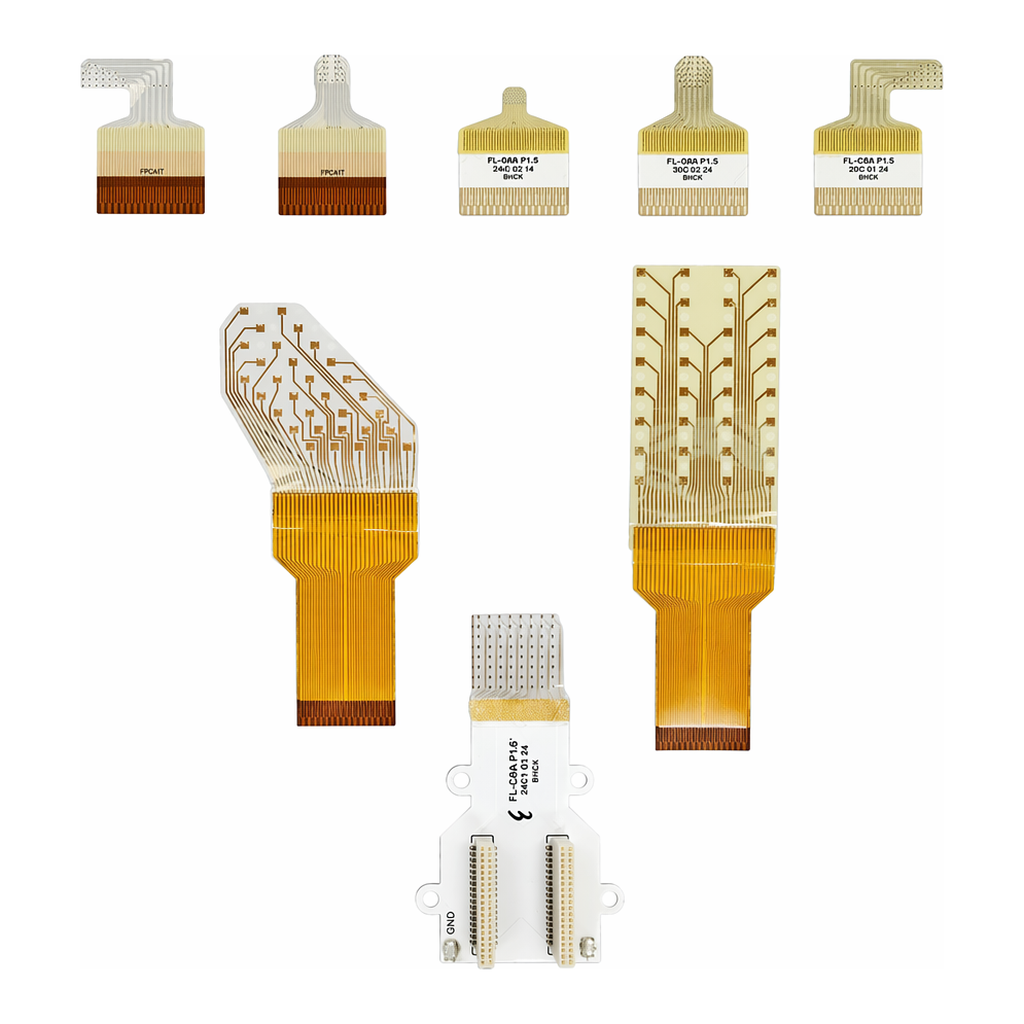

Electrode Arrays for Animal Experiments (FPCB Long 10cm, 32ch Au)

제품 개요

GBRAIN의 32채널 금(Au) 전극 어레이는 소동물 및 대동물 신경 실험에 적합한 FPCB(Long) 타입 제품으로, 고해상도 신경 신호 측정 및 자극에 활용됩니다.

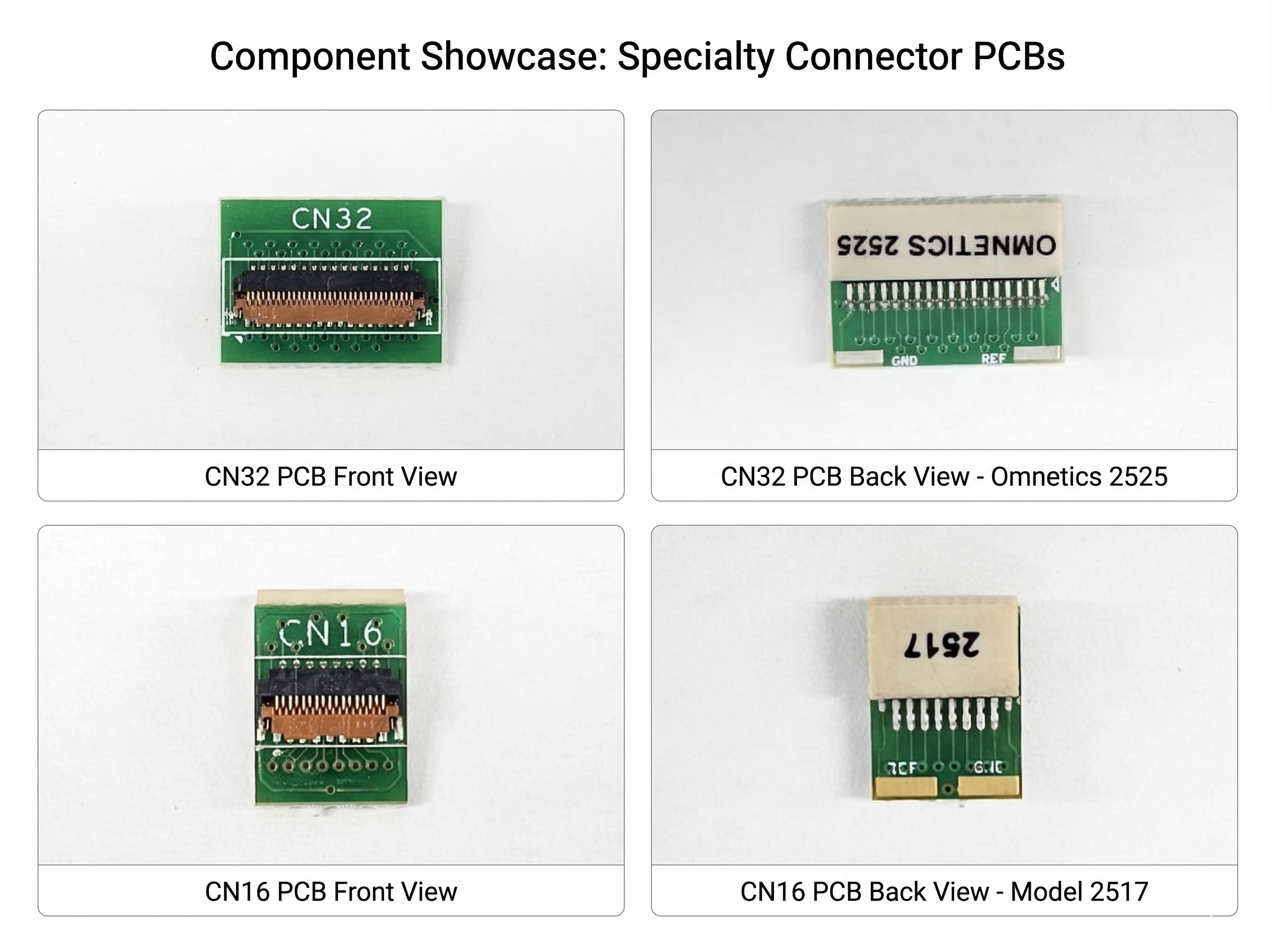

Component Showcase: Specialty Connector PCBs

이미지	설명
CN32 PCB Front View	CN32
CN32 PCB Back View - Omnetics 2525	OMNETICS 2525 GND REF
CN16 PCB Front View	CN16
CN16 PCB Back View - Model 2517	2517 REF GND

제목	저자	저널	연도
Tinnitus: prospects for pharmacological interventions with a seesaw mode	Hannah et al.	The Neuroscientist	2018
Epidural Electrotherapy for Epilepsy	Park et al.	Small	2018
Graphene-electrode array for brain map remodeling of the cortical surface	Lee et al.	NPG Asia Materials	2021
A Miniaturized Wireless Neural Implant with Body-Coupled Power Delivery and Data Transmission	Lee et al.	IEEE Journal of Solid-State Circuits	2022
Altered synaptic plasticity of the longitudinal dentate gyrus network in noise-induced anxiety	Pak et al.	iScience	2022
Hybrid graphene electrode for the diagnosis and treatment of epilepsy in free-moving animal models	Lim et al.	NPG Asia Materials	2023
Cortical surface plasticity promotes map remodeling and alleviates tinnitus in adult mice	Pak et al.	Progress in Neurobiology	2023
Neurodiagnostic and neurotherapeutic potential of graphene nanomaterials	Yang et al.	Biosensors and Bioelectronics	2024
Injectable 2D Material-Based Sensor Array for Minimally Invasive Neural Implants	Kim et al.	Advanced Materials	2024

포스터 발표 (Poster Presentations)

제목	저자	학회	연도
Correlation of Pig Vocalization with Brainwaves Measured by Graphene-based Cortical Electrode	Kim et al.	EMBC	2023

해당 제품은 연구용 제품입니다

Research Use Only

자료 다운로드

Gbrain_Catalog_2023.pdf (2.12MB)

주문정보

등재 코드	FPCB Type	전극 정보	커버리지 사이즈	채널 사이즈	적용 가능 동물	연결 방식	멸균 여부	재사용 여부	품명/규격
32-125150-A-L	FPCB(Long)10cm	32ch Au	2.3 x 2.4 mm	100um	Rat / Mouse	CN32	Non-sterile	single use	MEA_A32-Au-1.25 x 1.5
32-290290-A-L	FPCB(Long)10cm	32ch Au	3.7 x 4.9 mm	150um	Rat / Mouse	CN32	Non-sterile	single use	MEA_A32-Au-2.9 x 2.9
32-230150-A-L	FPCB(Long)10cm	32ch Au	2.3 x 4.5 mm	100um	Rat / Mouse	CN32	Non-sterile	single use	MEA_A32-Au-2.3 x 1.5
32-200180-A-L	FPCB(Long)10cm	32ch Au	2.5 x 4.7 mm	150um	Rat / Mouse	CN32	Non-sterile	single use	MEA_A32-Au-2.0 x 1.8
32-197797-A-L-R	FPCB(Long)10cm	32ch Au	8.7 x 5 mm	150um	Rat / Mouse	CN32	Non-sterile	single use	MEA_A32-Au-1.97 x 7.97 (Right)
32-197797-A-L-L	FPCB(Long)10cm	32ch Au	8.7 x 5 mm	150um	Rat / Mouse	CN32	Non-sterile	single use	MEA_A32-Au-1.97 x 7.97 (Left)
32-125150-G-L	FPCB(Long)10cm	32ch Gr	2.3 x 2.4 mm	100um	Rat / Mouse	CN32	Non-sterile	single use	MEA_A32-Gr-1.25 x 1.5
32-290290-G-L	FPCB(Long)10cm	32ch Gr	3.7 x 4.9 mm	150um	Rat / Mouse	CN32	Non-sterile	single use	MEA_A32-Gr-2.9 x 2.9
32-230150-G-L	FPCB(Long)10cm	32ch Gr	2.3 x 4.5 mm	100um	Rat / Mouse	CN32	Non-sterile	single use	MEA_A32-Gr-2.3 x 1.5
32-200180-G-L	FPCB(Long)10cm	32ch Gr	2.5 x 4.7 mm	150um	Rat / Mouse	CN32	Non-sterile	single use	MEA_A32-Gr-2.0 x 1.8
32-197797-G-L-R	FPCB(Long)10cm	32ch Gr	8.7 x 5 mm	150um	Rat / Mouse	CN32	Non-sterile	single use	MEA_A32-Gr-1.97 x 7.97 (Right)
32-197797-G-L-L	FPCB(Long)10cm	32ch Gr	8.7 x 5 mm	150um	Rat / Mouse	CN32	Non-sterile	single use	MEA_A32-Gr-1.97 x 7.97 (Left)
32-125150-A-S	FPCB(Short)1cm	32ch Au	2.3 x 2.4 mm	100um	Rat / Mouse	CN32	Non-sterile	single use	MEA_A32-Au-1.25 x 1.5
32-290290-A-S	FPCB(Short)1cm	32ch Au	3.7 x 4.9 mm	150um	Rat / Mouse	CN32	Non-sterile	single use	MEA_A32-Au-2.9 x 2.9
32-230150-A-S	FPCB(Short)1cm	32ch Au	2.3 x 4.5 mm	100um	Rat / Mouse	CN32	Non-sterile	single use	MEA_A32-Au-2.3 x 1.5
32-200180-A-S	FPCB(Short)1cm	32ch Au	2.5 x 4.7 mm	150um	Rat / Mouse	CN32	Non-sterile	single use	MEA_A32-Au-2.0 x 1.8
32-197797-A-S-R	FPCB(Short)1cm	32ch Au	8.7 x 5 mm	150um	Rat / Mouse	CN32	Non-sterile	single use	MEA_A32-Au-1.97 x 7.97 (Right)
32-197797-A-S-L	FPCB(Short)1cm	32ch Au	8.7 x 5 mm	150um	Rat / Mouse	CN32	Non-sterile	single use	MEA_A32-Au-1.97 x 7.97 (Left)
32-125150-G-S	FPCB(Short)1cm	32ch Gr	2.3 x 2.4 mm	100um	Rat / Mouse	CN32	Non-sterile	single use	MEA_A32-Gr-1.25 x 1.5
32-290290-G-S	FPCB(Short)1cm	32ch Gr	3.7 x 4.9 mm	150um	Rat / Mouse	CN32	Non-sterile	single use	MEA_A32-Gr-2.9 x 2.9
32-230150-G-S	FPCB(Short)1cm	32ch Gr	2.3 x 4.5 mm	100um	Rat / Mouse	CN32	Non-sterile	single use	MEA_A32-Gr-2.3 x 1.5
32-200180-G-S	FPCB(Short)1cm	32ch Gr	2.5 x 4.7 mm	150um	Rat / Mouse	CN32	Non-sterile	single use	MEA_A32-Gr-2.0 x 1.8
32-197797-G-S-R	FPCB(Short)1cm	32ch Gr	8.7 x 5 mm	150um	Rat / Mouse	CN32	Non-sterile	single use	MEA_A32-Gr-1.97 x 7.97 (Right)
32-197797-G-S-L	FPCB(Short)1cm	32ch Gr	8.7 x 5 mm	150um	Rat / Mouse	CN32	Non-sterile	single use	MEA_A32-Gr-1.97 x 7.97 (Left)
32-17701600-A-C	Custom FPCB	32ch Au	15 x 21.4 mm	1000um	Monkey / Porcine / Rabbit	CN32	Non-sterile	single use	MEA_A32-Au-17.7 x 16.0
32-15002500-A-C	Custom FPCB	32ch Au	16 x 26 mm	1000um	Monkey / Porcine / Rabbit	CN32	Non-sterile	single use	MEA_A32-Au-15 x 25
32-17701600-G-C	Custom FPCB	32ch Gr	15 x 21.4 mm	1000um	Monkey / Porcine / Rabbit	CN32	Non-sterile	single use	MEA_A32-Gr-17.7 x 16.0
32-15002500-G-C	Custom FPCB	32ch Gr	16 x 26 mm	1000um	Monkey / Porcine / Rabbit	CN32	Non-sterile	single use	MEA_A32-Gr-15 x 25
64-10001000-A-C	Custom FPCB	64ch Au	10.5 x 10.5 mm	300um	Monkey / Porcine / Rabbit	CN64 / Custom	Non-sterile	single use	MEA_A64-Au-10 x 10
64-10001000-G-C	Custom FPCB	64ch Gr	10.5 x 10.5 mm	300um	Monkey / Porcine / Rabbit	CN64 / Custom	Non-sterile	single use	MEA_A64-Gr-10 x 10
CN16	Connecter	16ch connector	-	-	-	Omnetics - Zif	Non-sterile	Reusable	16ch connector_CN16
CN32	Connecter	32ch connector	-	-	-	Omnetics - Zif	Non-sterile	Reusable	32ch connector_CN32
CN64	Connecter	64ch connector	-	-	-	Omnetics - Zif	Non-sterile	Reusable	64ch connector_CN64
