Thermo Scientific™

Three60™ Sampling System BioProcess Container (BPC)

The simple design behind the Thermo Scientific™ Three60™ Sampling System allows you to take a representative sample of your product자세히 알아보기

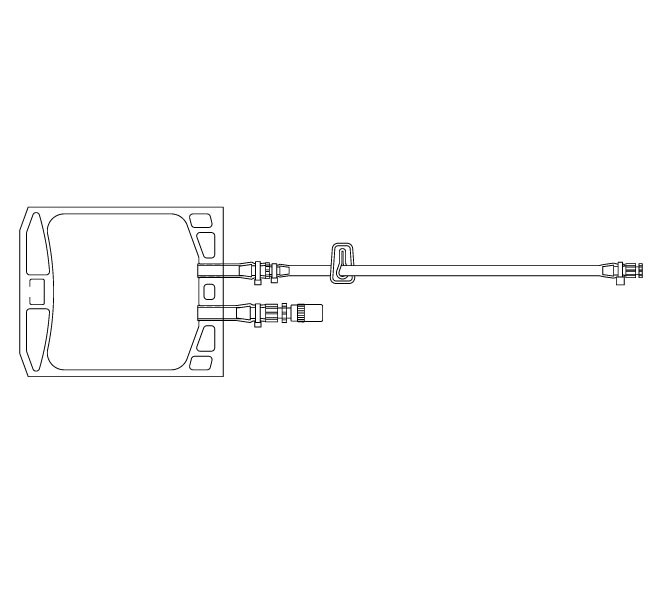

The simple design behind the Thermo Scientific™ Three60™ Sampling System allows you to take a representative sample of your product with minimal effort. The fluid path of the pre-irradiated BioProcess Container (BPC) has a quick-turn valve and pinch-and-cut disconnections for fluid transfer and removal. The 50 mL Three60 Sampling System BPC is composed of Thermo Scientific™ ASI™ 77 film, a 5-layer, 7 mL, polyethylene film and includes 2 ports (1 luer lock insert + cap, 1 injection site).

Features of the system include:
• Compatible with a 3.8 cm (1.5-inch) sanitary connector
• Requires no expensive hardware
• Each Three60 package contains a valve and four assemblies with pinch-and-cut disconnections
• Helps to eliminate post-use cleaning steps required with reusable containers, and to reduce cross-contamination risks

Customize standard BPC systems for optimized single-use technology
Choose from the industry`s largest component library, with over 2,000 unique components that include:
• Fittings—straight, reducing, elbow, T-style, X-style, and cross-style
• Connectors—quick connectors/disconnectors, aseptic connectors and disconnectors, and steam-to and steam-through connectors
• Filters (used for bioburden reduction)—sterilization grade filters and vent filters
• Tubing—thermoplastic elastomers and platinum-cured silicone
• Sample ports—septum-style and needle-free ports
• Clamps—sliders, pinch, and crimp bands

사양

제품 유형Bioprocess Container

용량(미터법)50 mL

포함2 ports (1 Luer Lock Insert + Cap, 1 Injection Site)

물질EVA

필름 설명ASI™ 77

외부 포장Two 4-mil. poly bags

포트 세부 정보Luer lock insert and body connectors

제품라인Three60™

수량50 mL, 50 per case

규제cGMP

배송 조건Room Temperature

멸균 방법Gamma Irradiated

치수(길이 x 폭 x 높이)12.0 x 10.0 cm (4.72 x 3.94 in.)

길이(미터법)12 cm

폭(영국식 단위)3.94 in.

폭(미터법)10 cm

Unit SizeEach
