Applied Biosystems™

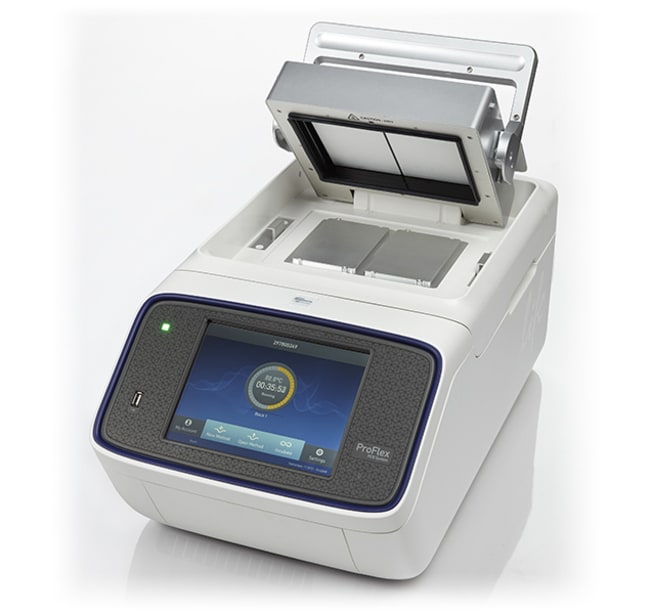

ProFlex™ PCR System, 2 x Flat

The ProFlex 2 x Flat PCR System is the latest in our line of Applied Biosystems thermal cyclers. The ProFlex자세히 알아보기

The ProFlex 2 x Flat PCR System is the latest in our line of Applied Biosystems thermal cyclers. The ProFlex system combines the reliability and performance you`ve come to expect from Applied Biosystems instruments with the flexible configuration and control features that adapt to your research needs. The 2 x Flat block is optimized for use with 8 TaqMan OpenArray Genotyping plates and 24 20K chips for subsequent use with the QuantStudio 3D Digital PCR System.

Features

• Simple interchangeable block if throughput needs change
• Remote system access through a mobile app
• Simple-to-use touchscreen interface for fast programming
• Thermal cycler simulation modes
• Optimize PCR quickly and efficiently with better-than-gradient VeriFlex blocks

Interchangeable blocks
If research requirements change in the future, simply remove the 2 x flat block from the top of the instrument and exchange it with another block type. This step typically takes less than 15 seconds and requires no tools or kits.

Mobile app connectivity
Check equipment availability with a mobile app before you get to the lab. Download experimental report files, receive alerts, and more with our PCR Essentials app.

Simulation mode
The ProFlex PCR system is equipped with simulation modes that mimic your old thermal cycler`s ramp rate. Simulation modes are available for MJ Research PTC 200, Bio-Rad C1000, Bio-Rad MyCycler, Eppendorf Mastercycler, Applied Biosystems 9700, Applied Biosystems 9600, and Applied Biosystems Veriti systems.

8.4-in touch screen control
The simple and intuitive touchscreen interface allows you to program with ease, and limits the amount of time spent training yourself and others how to use the system.

사양

블록 형식Interchangeable

열 정확도±0.25°C (35°C to 99.9°C)

고처리량 호환성High-throughput Compatible

열 균일성<0.5°C (20 sec. after reaching 95°C)

반응 속도Fast, Standard

치수22 x 13 x 10.6 in. (56.5 x 33 x 27 cm)

용량8 OpenArray Plates, 24 x 20K Chips

전압100/240 V

디스플레이 유형8.4 in. Color TFT LCD Touchscreen

제품 유형Thermal Cycler

워런티Limited Warranty

열 범위0°C to 100°C

용도(애플리케이션)PCR

프로그램Auto re-start (after Power Outages), Program Overwrite Protection

사용자 인터페이스USB, WiFi, Cloud, Ethernet

최대 램프 속도3°C/sec. (Block), 1.6°C/sec. (Sample)

수량1 instrument

메모리USB and On-board

무게45 lb. (20.4 kg)

블럭 구성2 x Flat Blocks

Unit SizeEach
