Daihan Science Kern Microscope cameras, “ODC”, 3,1 & 5,1 Mega-pixel, CMOS, USB ConnectionInclu

상품 한눈에 보기

Kern OBL 시리즈는 실험실 및 교육용으로 적합한 상안·삼안 생물 현미경입니다. 3W LED 조명, 40×~1000× 배율, 360° 회전 튜브를 갖추었으며, 다양한 옵션 액세서리와 트리노큘러 튜브 장착이 가능합니다. 견고하고 정밀한 조정 메커니즘을 제공하며 3년 보증이 포함됩니다.

카탈로그번호: KE-OBB-A1142-EA
브랜드: Daihan Science
카테고리: Cameras
판매단위: ea

#Daihan Science

카탈로그

1개 옵션

회원가입 없이 바로 구매하세요

가입하지 않아도 비회원가로 구매하실 수 있습니다.

카탈로그 번호 · 상품 설명출고판매가담기

Daihan Science KE-OBB-A1142-EA C-Mount camera adapter, 1.00x, 1/Ea ea KE.OBB.A1142판매 단위 ea ·

재고 확인 필요재고 확인 필요

287,200원VAT 포함 315,920원

재고문의·견적요청 옵션은 실시간 상담으로 납기를 확인해 드립니다 · 연구비 카드 결제 가능

Daihan Science · Daihan Science Kern Microscope cameras, “ODC”, 3,1 & 5,1 Mega-pixel, CMOS, USB ConnectionInclu

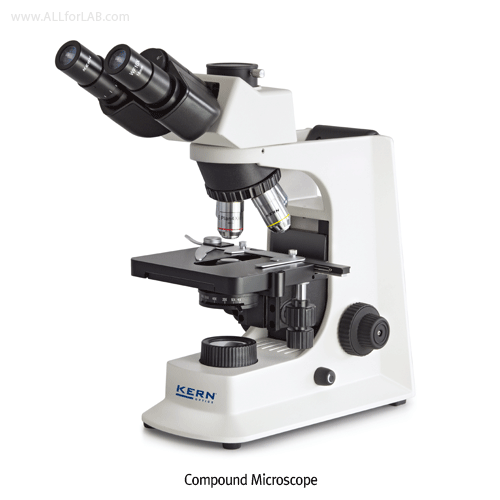

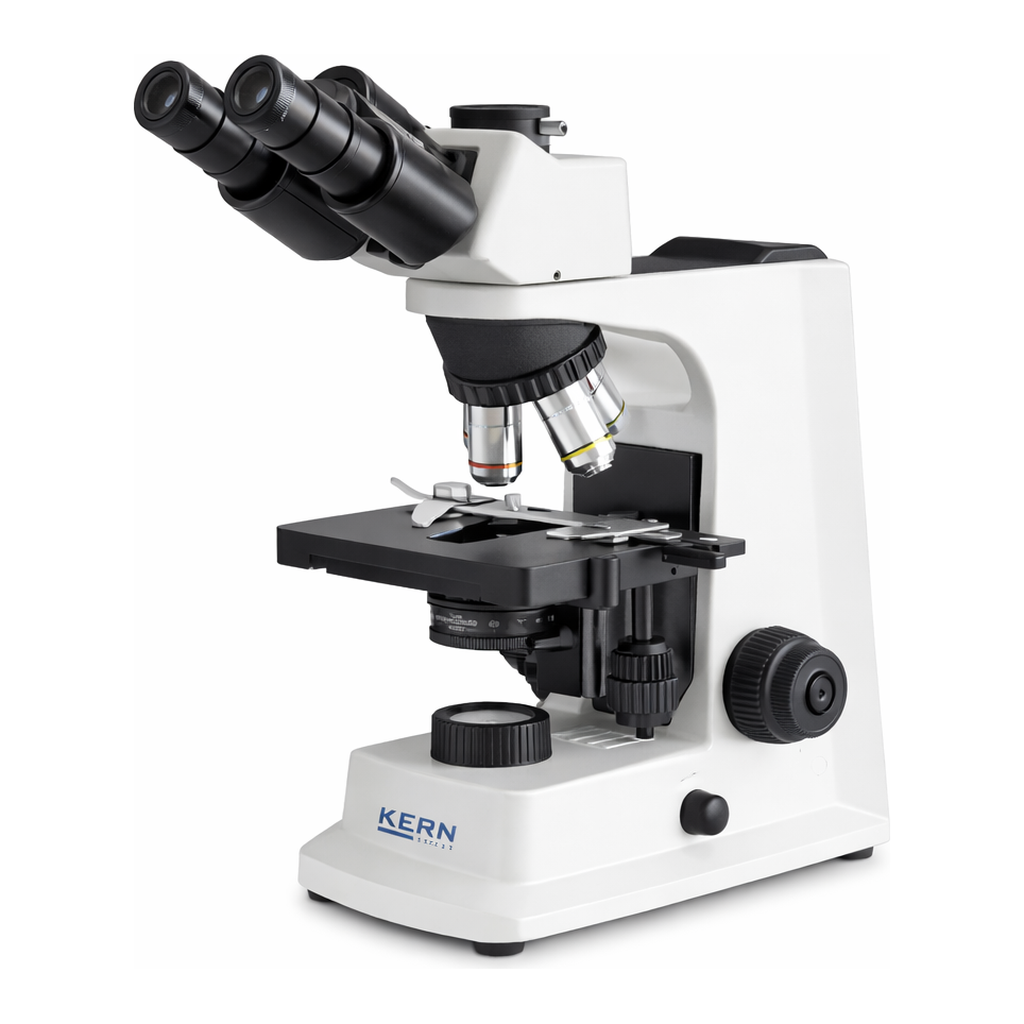

Kern® Compound Microscope “OBL” Series

Binocular & Trinocular Models with 3W LED Illumination (40× ~ 1000×)
360° Rotatable Tube, Wide Field Eyepieces, Suitable for Laboratory & Vocational Training
상안 · 삼안 생물 현미경

Supplied by Kern® in Germany
3-Year Warranty

LAB LINE

The Variable Model for the Flexible User in the Laboratory and Vocational Training

Features

Excellent and robust laboratory microscopes for routine applications
Simple Koehler illumination with adjustable field diaphragm and Abbe condenser
Achromatic, Plan Achromatic or Infinity Corrected E-Plan objectives depending on model
Binocular models with diopter adjustment
Optional Trinocular head for camera mounting
Nosepiece for up to four objectives and large mechanical stage
Optional accessories: eyepieces, objectives, polarization kit, phase contrast unit, HBO & LED fluorescence kits
Available with 20W halogen or 3W LED illumination
Stable and precisely adjustable mechanical system
Easy installation of Trinocular Tube

※ Note: Work in a clean room when installing the Trinocular Tube

Technical Data

Specification	Details
Eyepieces	HWF 10× / ⌀20mm
Objectives	4× / 10× / 40× / 100×
Tube Type	Siedentopf, 30° inclined, 360° rotatable
Interpupillary Distance	50 ~ 75mm
Light Distribution	20:80 (for infinity system, Trinocular Tube)
Diopter Adjustment	One-sided
Mechanical Stage Size	145×130mm
Stage Travel	76×52mm
Focus Knobs	Coaxial coarse & fine, scale 2μm
Slide Holder	Two
Overall Dimensions	395×200×380mm
Net Weight	Approx. 6.7 kg
