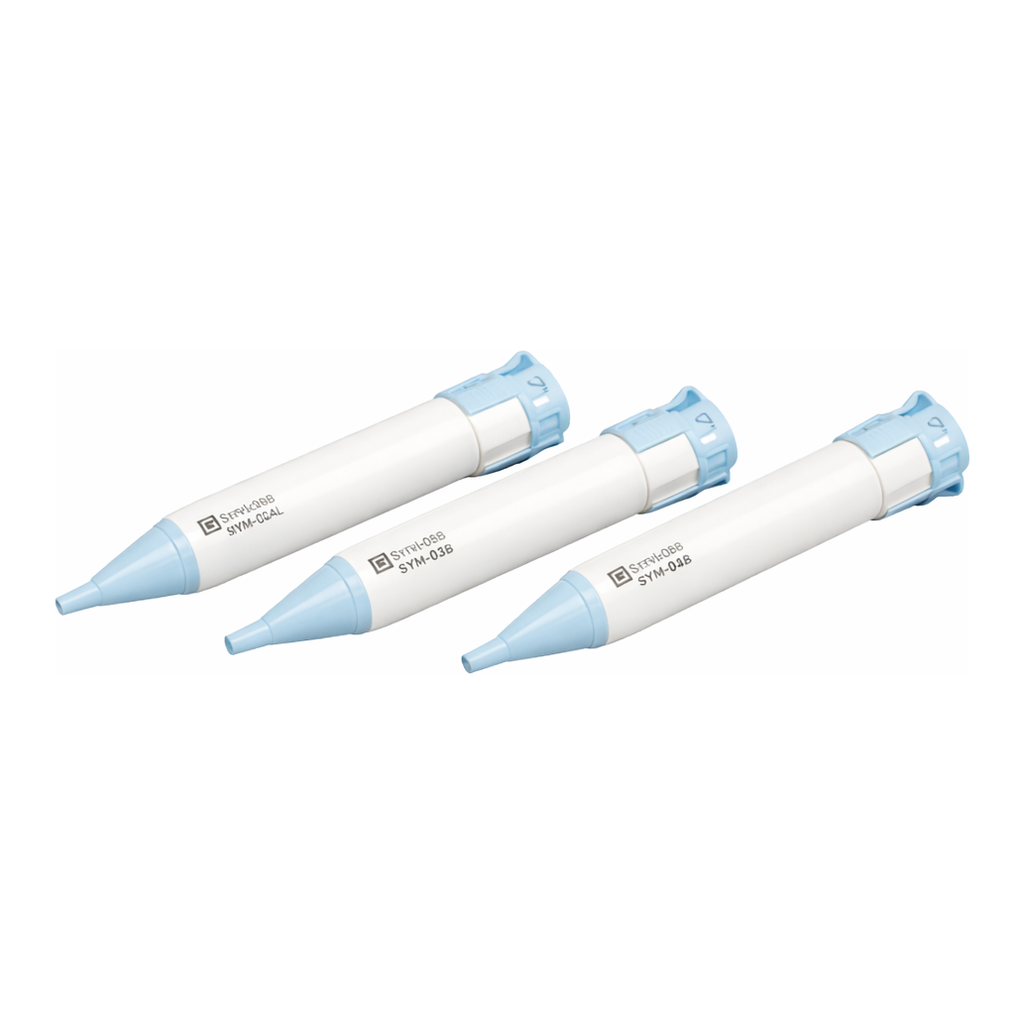

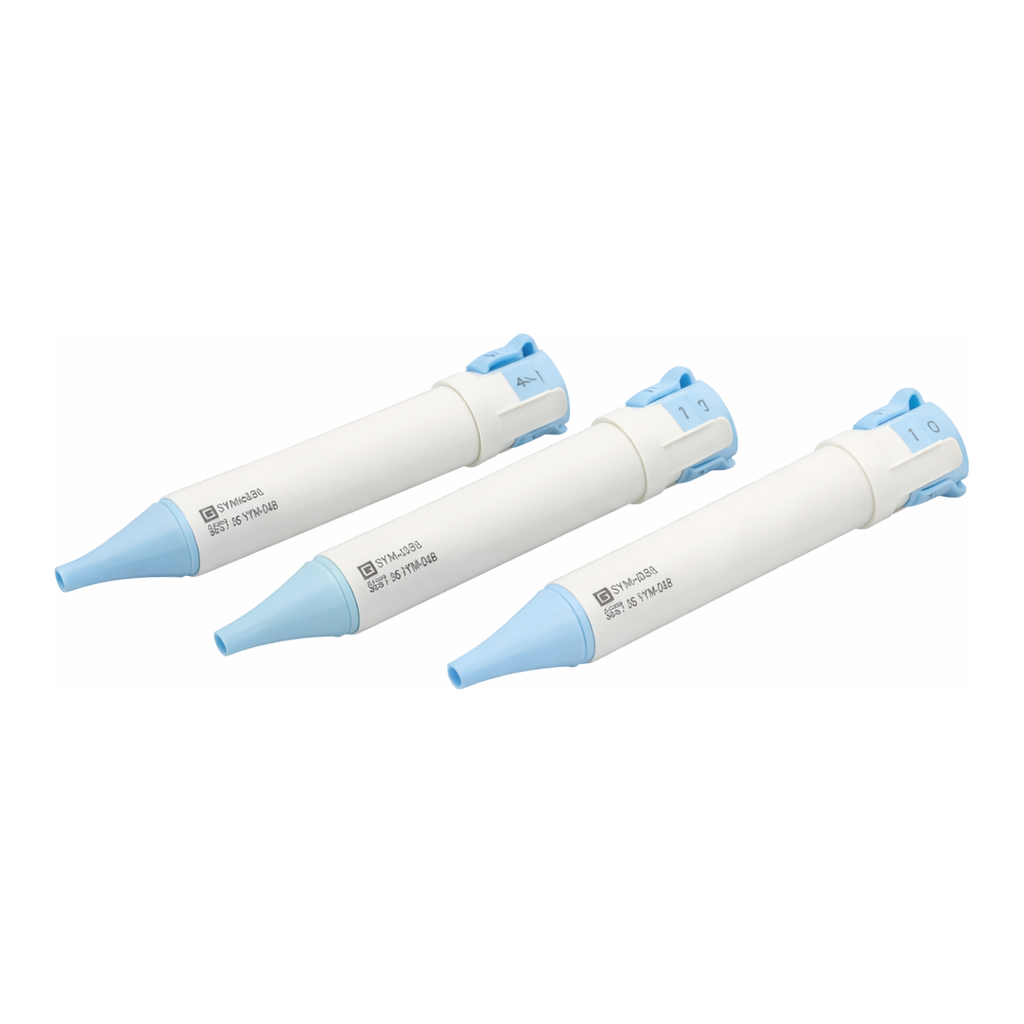

Servicebio Beads Pen (Sterile)

Product Description

The Beads Pen is an innovative tool designed for use with tissue homogenizer bead grinding systems. Grinding beads are pre-installed in the pen, allowing users to dispense a specified number of beads according to experimental needs. This design eliminates the difficulty of adding beads manually with tweezers and prevents cross-contamination after opening the cap.

Specifications

Features

1. Simple operation enables easy bead dispensing and improves work efficiency.

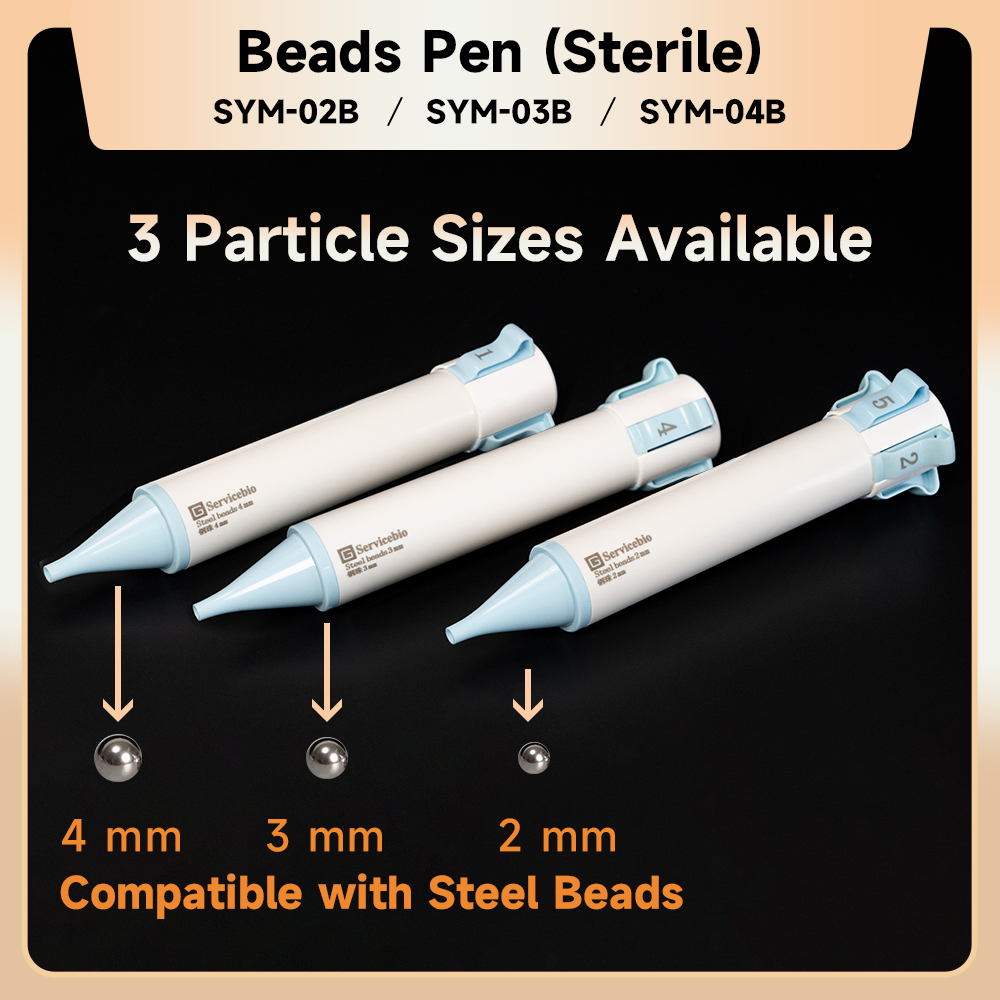

2. Optional bead sizes: 2 mm, 3 mm, and 4 mm (zirconia or steel).
3. Number and color identification for convenient distinction and operation.
4. Bead output per press:
   • 2 mm: 1 / 2 / 3 / 4 / 5
   • 3 mm: 1 / 2 / 3 / 4
   • 4 mm: 1 / 2 / 3
     The number marked on the button corresponds to the quantity dispensed.
5. Models SYM-02Z, SYM-03Z, and SYM-04Z are made of zirconia (RNase-free).
6. Beads Pen volume: 20 mL.

Precautions

1. Remove the sealing plug at the nozzle tip before operation.
2. If bead count is incorrect, press the corresponding button (1 or other numbers) to replenish.
3. Press the button fully down and allow it to return to the highest position. If not, manually push it back up with your thumb.
4. If bead output is inaccurate, shake the pen up and down and press again to release beads.
