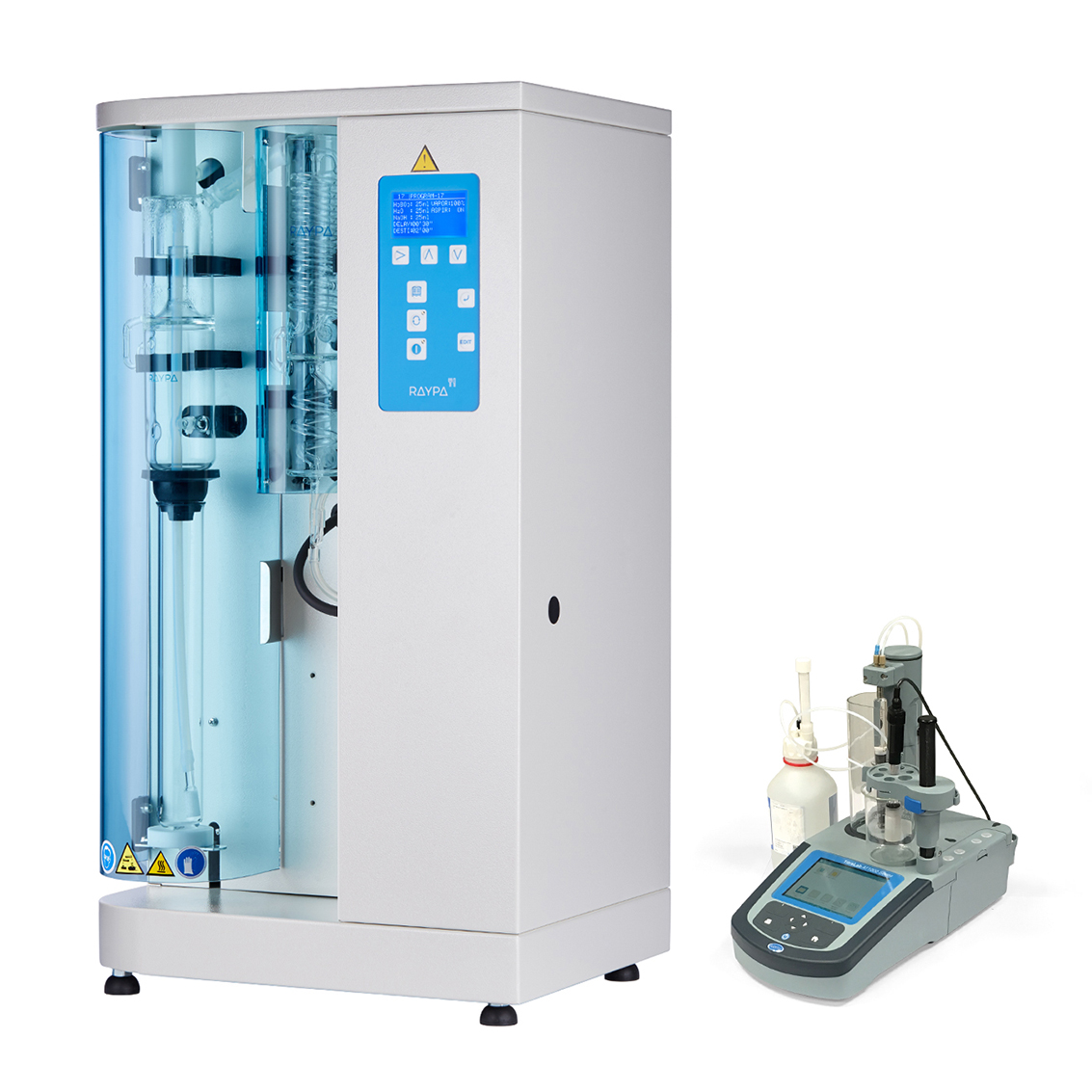

■ Protein-Nitrogen distiller based on Kjeldahl method
■ Electrical steam generator 도입으로 Water 수위 및 온도유지 탁월
■ Analyse proteic nitrogen in raw material samples or processed material for food industry
■ Included automatic titrator
■ Closed door detection, Digestion tube detection, Over-temperature thermostat.
■ Graphic LCD screen 및 20 program
■ Additional Program
– Ammonium sulphate test.
– Sample waste washing.
■ Raypa

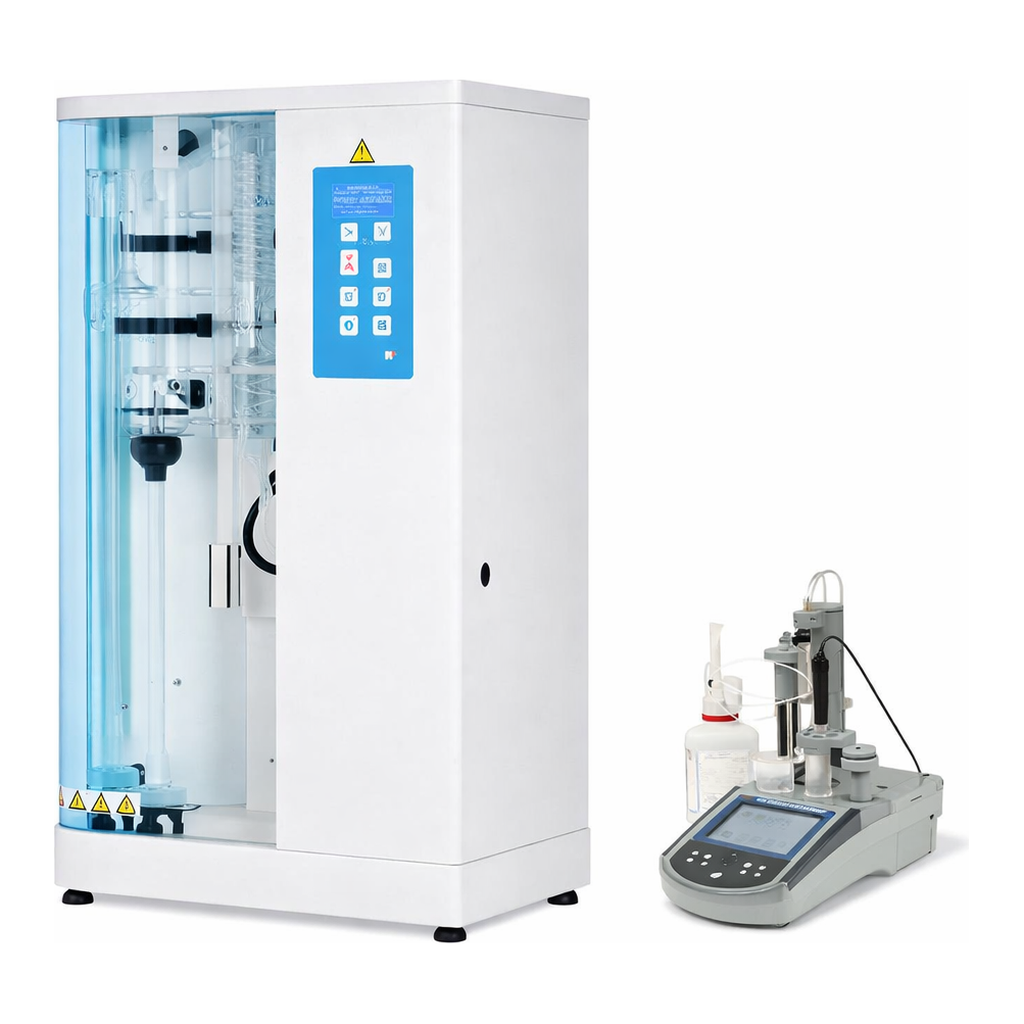

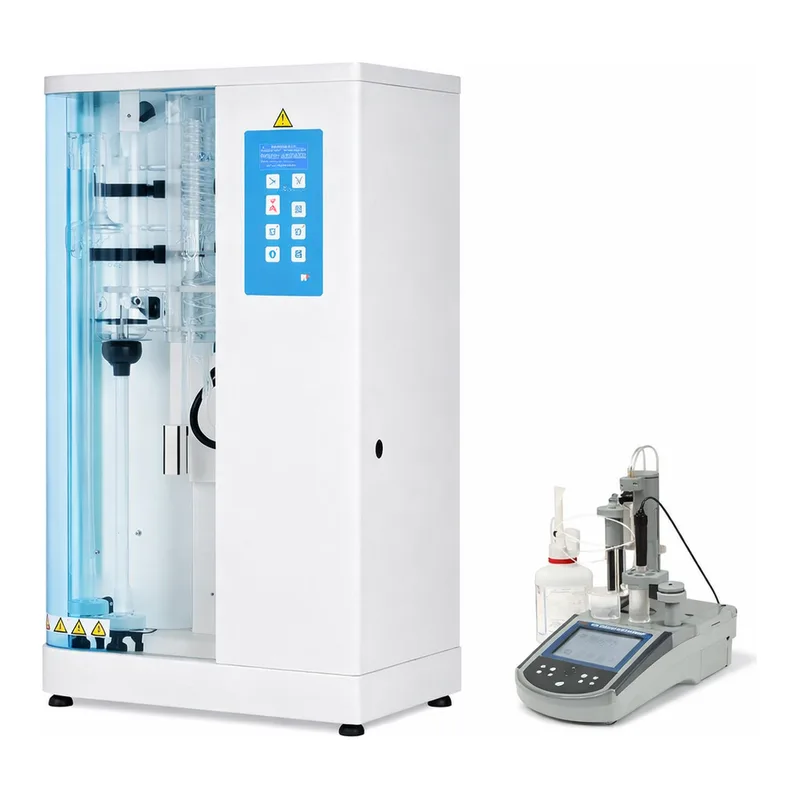

- Kjeldahl Distillation System
| Cat. No |
Model |
Description |
| C17-78-030 |
DNP-3000 |
Automatic Kjeldahl Distillation System |
| Cat. No. |
C17-78-030 |
| Model |
DNP-3000 |
| --- |
--- |
| Measurement Range |
0.1 to 200 mgN |
| Nitrogen Recovery |
≥99.5 % |
| Reproducibility |
±1 % |
| Distillation Time |
4 min for 100 ml |
| Cooling Water Consume |
1.2 L/min |
| Water Tank |
10 L |
| NaOH Tank |
10 L |
| H3BO3 |
5 L |
| Dimension |
w380×d340×h740 mm |
| Weight |
30 kg |
| Titrator |
|
| Resolution |
0.001 pH, 0.1 mV, ±0.3℃ |
| Reproducibility |
±0.001 pH |
| Temp. Compensation |
PT100 |
| Dimension |
w130×d160×h300 mm |
| Weight |
4 kg |
