Optional Accessory for Dispensette Dispensette S용 악세사리

##

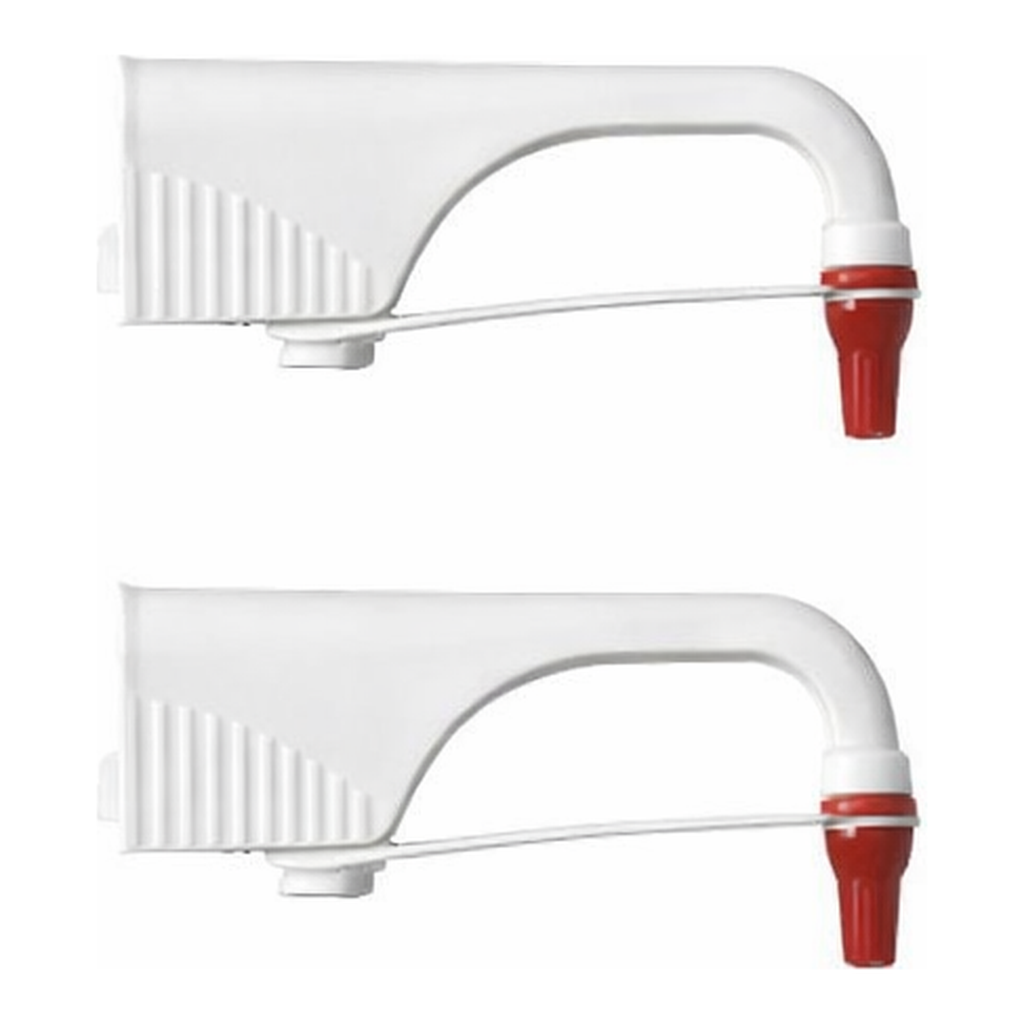

• Discharge Tube, without Recirculation Valve

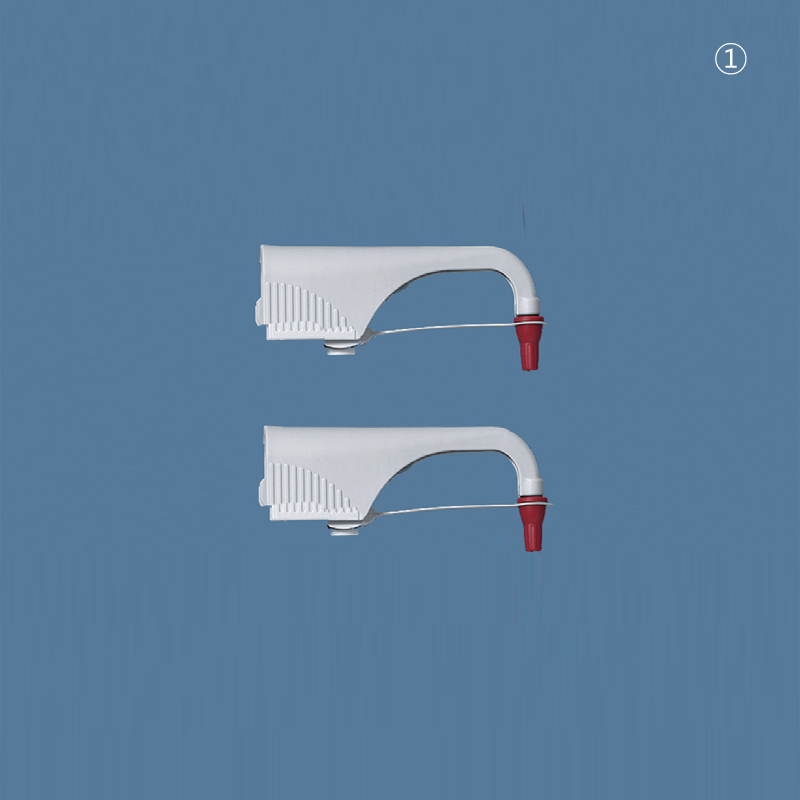

Dispensette® S용 ①

Cat. No	Model	용량 (ml)	Shape	길이
D03-59-921	708002	1, 2, 5, 10	Fine Tip	105 mm
D03-59-923	708005	5, 10	Standard Tip	105 mm
D03-59-925	708006	25, 50, 100	Fine Tip	135 mm
D03-59-927	708008	25, 50, 100	Standard Tip	135 mm

Dispensette® S Organic용 ②

Cat. No	Model	용량 (ml)	Shape	길이
D03-59-929	708014	5, 10	Standard Tip	105 mm
D03-59-931	708016	25, 50, 100	Fine Tip	135 mm
D03-59-933	708019	25, 50, 100	Standard Tip	135 mm

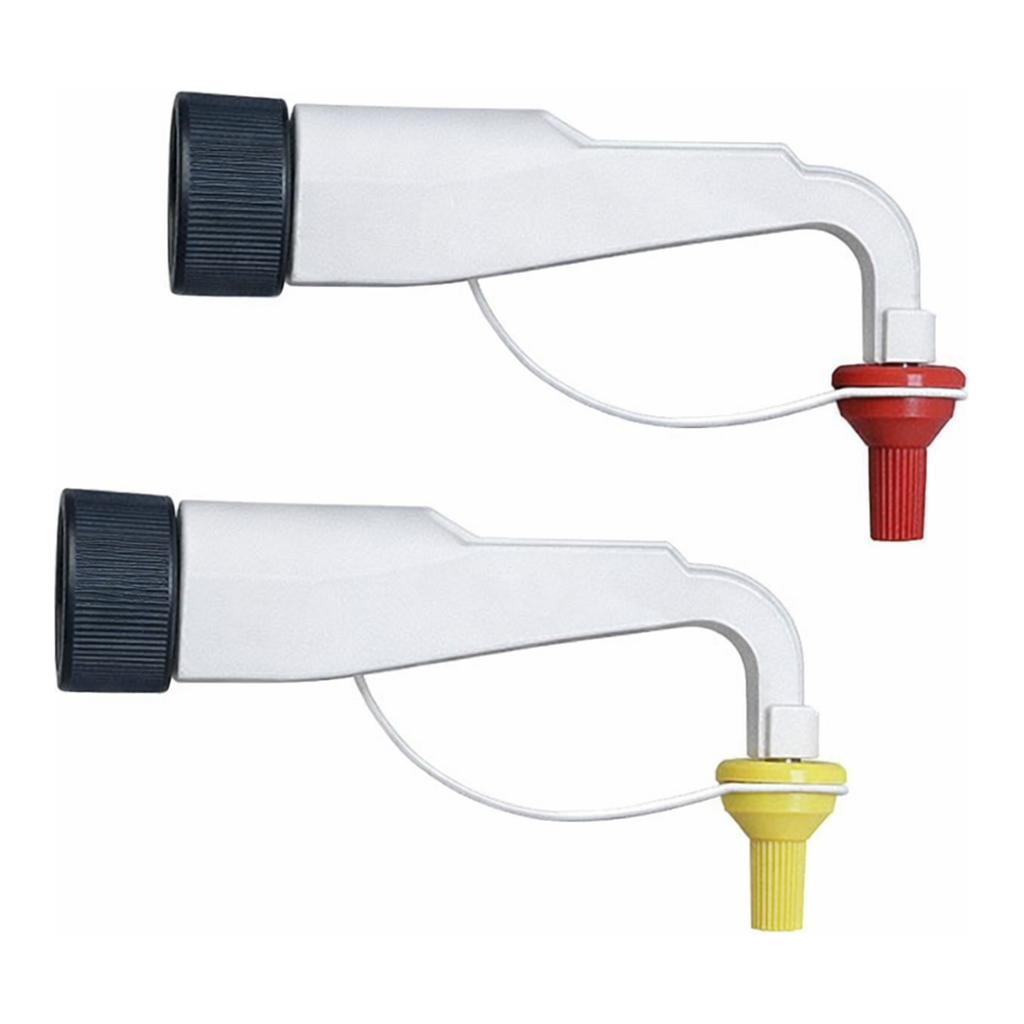

• Discharge Tube, with Recirculation Valve

Dispensette® S용 ③

Cat. No	Model	용량 (ml)	Shape	길이
D03-59-935	708102	1, 2, 5, 10	Fine Tip	105 mm
D03-59-937	708104	5, 10	Standard Tip	105 mm
D03-59-939	708106	25, 50, 100	Fine Tip	135 mm
D03-59-941	708109	25, 50, 100	Standard Tip	135 mm

Dispensette® S Organic용 ④

Cat. No	Model	용량 (ml)	Shape	길이
D03-59-943	708114	5, 10	Standard Tip	105 mm
D03-59-945	708116	25, 50, 100	Fine Tip	135 mm
D03-59-947	708119	25, 50, 100	Standard Tip	135 mm

Telescoping Filling Tube, FEP ⑤

Cat. No	Model	적용 용량	길이
D03-59-709	708210	1, 2, 5, 10 ml	70 ~ 140 mm
D03-59-713	708212	125 ~ 240 mm
D03-59-717	708214	195 ~ 350 mm
D03-59-721	708216	250 ~ 480 mm
D03-59-725	708218	25, 50, 100 ml	170 ~ 330 mm
D03-59-729	708220	250 ~ 480 mm

● Dispensette®S와 Dispensette®S Organic 공통

Flexible Discharge Tubing with Recirculationg Valve, PTFE ⑥

Cat. No	Model	용량	Tube od	Tube id	길이
D03-59-949	708132	2, 5, 10 ml	Ø3 mm	Ø2 mm	80 cm
D03-59-951	708134	25, 50, 100 ml	Ø4.5 mm	Ø3 mm

● Dispensette®S와 Dispensette®S Organic 공통

Sealing Ring for Valve Block ⑦

Cat. No	Model	재질
D03-59-953	704486	PTFE

● 휘발성이 높은 Media 사용 시에 GL 45 Bottle 위에 놓고 체결하여 사용

Drying Tube without Drying Reagent ⑧

Cat. No	Model	재질
D03-59-862	707930	PE-LD

● 수분 및 CO2에 민감한 Media 사용 시에 본체 Air Vent Cap을 제거하고 흡습제를 충진하여 사용

Bottle Thread Adapter ⑨
⑴ GL 32

Cat. No	Model	재질	Bottle Thread/Ground Joint
D03-59-865	704322	PP	GL 22
D03-59-867	704325	GL 24, 25
D03-59-869	704328	GL 28
D03-59-871	704330	GL 30
D03-59-873	704338	GL 38
D03-59-875	704340	S 40
D03-59-879	704345	GL 45
D03-59-885	704375	ETFE	GL 24, 25
D03-59-887	704378	GL 28
D03-59-889	704388	GL 38
D03-59-891	704390	S 40
D03-59-962	704395	GL 45
D03-59-976	704419	PP	NS 19/26
D03-59-978	704424	NS 24/29
D03-59-980	704429	NS 29/32

⑵ GL 45

Cat. No	Model	재질	Bottle Thread
D03-59-877	704343	PP	S 40
D03-59-881	704348	S 60
D03-59-883	704350	S 50
D03-59-960	704391	PTFE	S 40
D03-59-964	704396	PP	GL 32, 33
D03-59-966	704397	GL 38
D03-59-968	704398	ETFE	GL 32, 33
D03-59-970	704399	GL 38
D03-59-972	704430	PP	S 54
D03-59-974	704431	GL 35
