Ion Torrent™

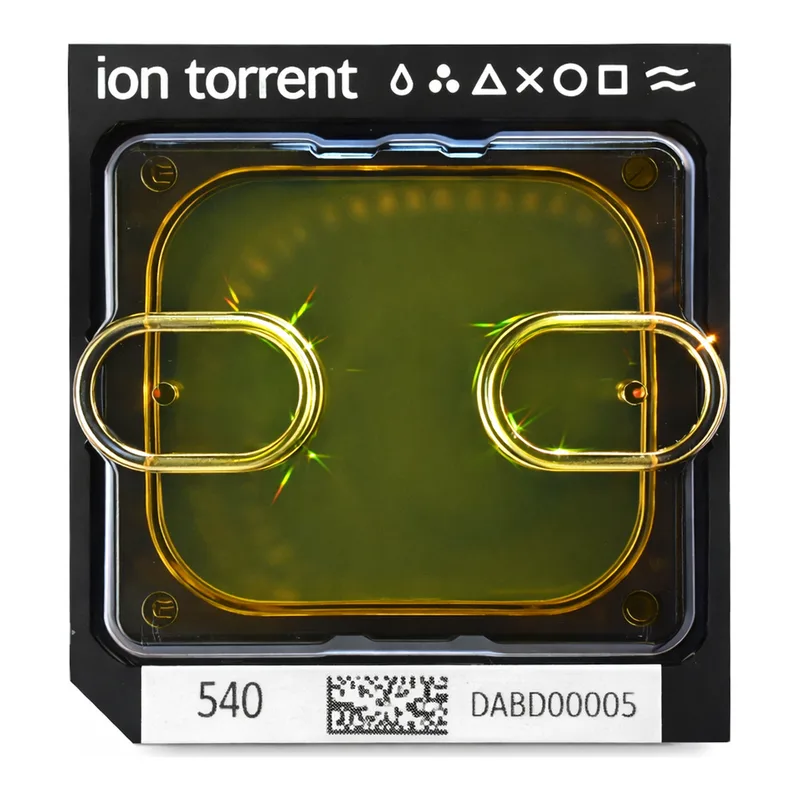

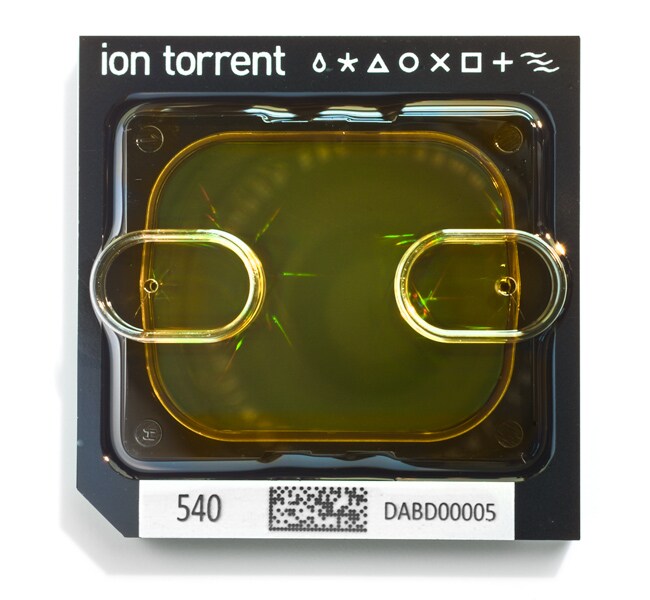

Ion 540™ Chip Kit

The Ion 540™ Chip Kit contains 8 barcoded chips for sample tracking and sequencing with the Ion S5™ and Ion자세히 알아보기

The Ion 540™ Chip Kit contains 8 barcoded chips for sample tracking and sequencing with the Ion S5™ and Ion S5™ XL Sequencing Systems. The Ion 540 Chip electronically detects polymerase-driven base incorporation without the use of fluorescence. By eliminating the use of an optical detection system, this advance in next-generation sequencing technology allows for rapid sequencing times of as little as 2.5 hours for 200 bp sequencing.

The Ion 540 Chip Kit offers:

• Sample tracking functionality from an integrated barcode
• A rapid run time of as little as 2.5 hours for 200 bp sequencing, generating 60–80 million reads
• Support for a variety of research applications, including sequencing of up to three human exomes, transcriptome profiling, and targeted resequencing of gene panels
• Easy handling and loading of templated products for sequencing
• Compatibility with current library preparation methods

Notes:
This kit is only compatible with the Ion S5 and Ion S5 XL systems.
Use this kit with the Ion 540 Kit-Chef and the Ion 540 Kit-OT2.

사양

제품라인Ion 540™

형식Kit

용도(애플리케이션)Sequencing

그린 기능Sustainable disposal

칩당 리드 수60-80M

제품 유형Chip Kit

수량4 Chips

시퀀싱 유형Genome and DNA Sequencing

배송 조건Room Temperature

종Human

Unit SizeEach
