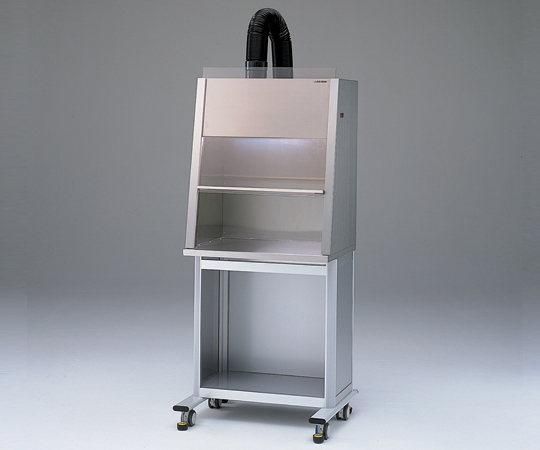

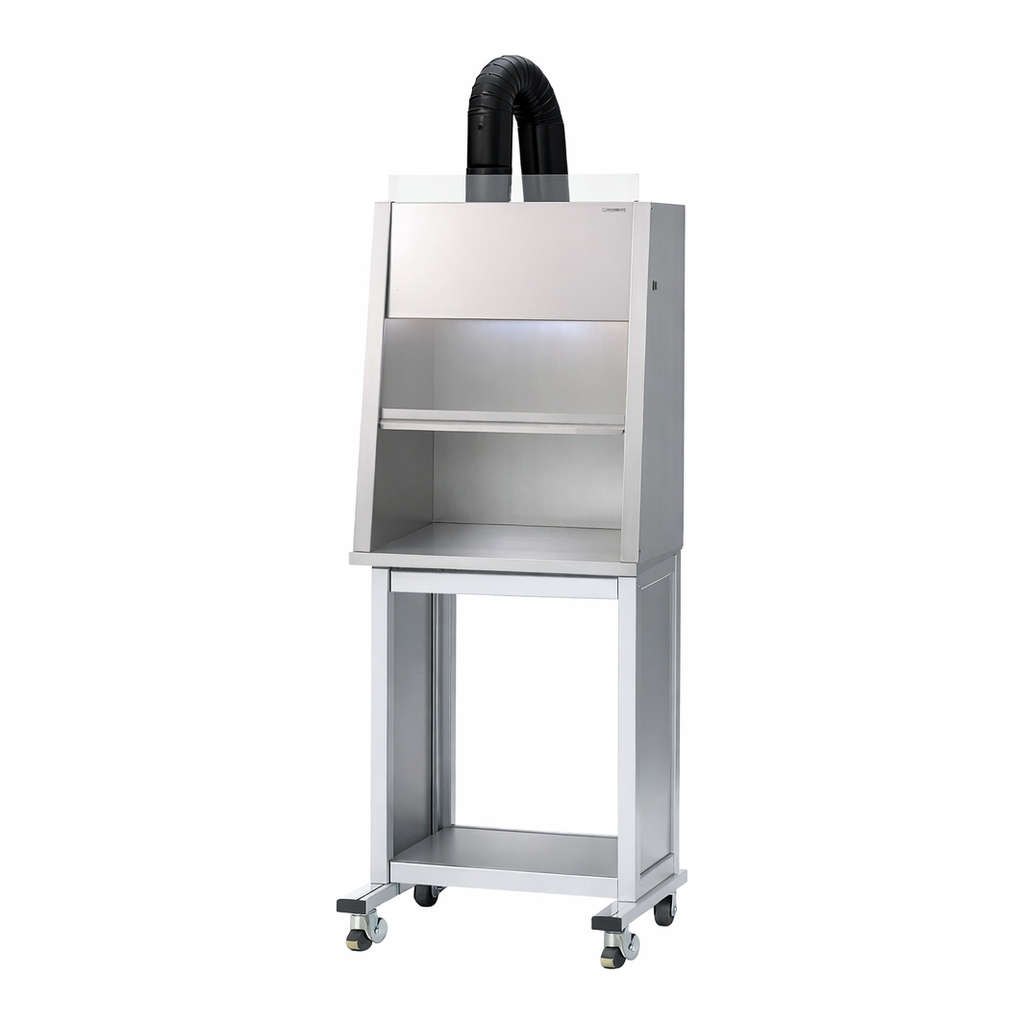

AS ONE Exhaust Draft　CDB-700

AS ONE Exhaust Draft　CDB-700

Spec

• Material: hood / stainless steel (SUS304), mount / aluminum frame, door / transparent PVC (vinyl chloride Plastic), work plane / stainless (SUS304)
• Exhaust duct diameter: φ 100 mm
• power supply: AC100V 50 / 60Hz
• fluorescent lamps: 15 W
• Caster: 75 mm (with adjuster)
• Work area enabled Dimensions: 698 x 499 x 599 mm
• air volume: approx. 4 m ^ 2 / min (Door 1/3 open, 0.5 m/s face speed without load) * It may change by environment used
• Exhaust fan ability: 50Hz / 360 Pa ・ 6.7 m3/min, 60Hz / 500 Pa ・ 5.8 m3/min
• Accessory: Duct hose φ 100 mm x 2.5 m
• Model number: CDB -700
• Size (mm): 700 x 600 x 1500
• Weight (kg): 45
• * Shipping, carrying, installation and assembly costs are required separately. Please contact us
• * Please contact your facility group for an application for local exhaust equipment
• <> AS ONE Corporation Facilities Group ■ TEL : 0120-500-558 ■ Fax : 0120-500-483 ■ Email : setsubi@so.as-1.co.jp ■ TEL Reception Time / 9 : 00 to 5 : 30 (Excluding soil, days and holidays)
