WHEATON High-grade Self-Refilling Dispenser
상품 한눈에 보기
미국 Wheaton사의 고급 자동 충전형 주사기식 분주기 인체공학적 설계로 정밀하고 재현성 높은 분주 가능 화학적 내성이 우수하며 121℃에서 완전 멸균 가능 Basic 및 Premium 모델로 다양한 용량 선택 가능 다양한 니들 및 매니폴드 액세서리 옵션 제공
브랜드: Daihan Science
✨AI 추천 연관 상품
AI가 분석한 이 상품과 연관된 추천 상품들을 확인해보세요
연관 상품을 찾고 있습니다...
Wheaton® High-grade Self-Refilling Dispenser, Dosys® Syringes, 0.1~9999.9㎕
자동 충전 주사기형 분주기
- Supplied by Wheaton® in USA
- Optimal hand balance and ergonomics
- Excellent reproducibility
- High chemical resistance
- Fast and reliable volume setting
- Plunger tightness without O-ring
- Fully autoclavable at 121℃
Dosys® Basic 172 with Pistol-grip Handle
- Fill-by-fill (Automatic) Through Needle or Cannula
- Supplied without Valve System
- Package includes Syringe, PVC Protection Sleeve and Operating Instruction
- Luer Lock Nozzle
- Pistol-grip Handle
Dosys® Premium Syringe 174 with Pistol-grip Handle
- Self-Refilling Automatic
- Enhanced Corrosion Resistance
- Package includes Syringe, 1m Silicon Feed Tube, Sinker, PVC Protection Sleeve, Aspiration, vent and dosing Cannulas, set of spare for Valve, Operating Instructions
- Detachable Valve System
- Luer Lock Nozzle
- Pistol-grip Handle
Liquid Path Materials (for Chemical Resistance)
| Parts | Basic 172 | Premium 174 |
|---|---|---|
| Deed tubing | Silicone | Silicone |
| Barrel | Borosilicate Glass | Borosilicate Glass |
| Washer, Barrel | FPM | FPM |
| Plunger | Stainless-steel DIN134 | Stainless-steel DIN316L |
| Valve System | Ni-Cr Brass | Stainless-steel DIN316L |
| Washer, Valve | PTFE | PTFE |
| Spring and Balls, Valve | Stainless-steel DIN304 | Stainless-steel DIN304 |
| Sinker, Feed Cannula | Ni-Cr Brass | Ni-Cr Brass |
Specifications & Ordering
| Cat. No. | Volume (㎖) | Divisions (㎖) | Imprecision (CV%) Min. Vol. | Mid. Vol. | Max. Vol. |
|---|---|---|---|---|---|
| Basic Syringe 172 with Pistol-grip Handle | |||||
| WH.W853000 | 0.1~1 | 0.05 | <0.7% | <0.6% | <0.4% |
| WH.W853002 | 0.3~2 | 0.1 | <0.6% | <0.5% | <0.4% |
| WH.W853004 | 0.5~5 | 0.5 | <0.5% | <0.4% | <0.2% |
| WH.W853006 | 1~10 | 1.0 | <0.5% | <0.4% | <0.2% |
| Premium Syringe 174 with Pistol-grip Handle | |||||
| WH.851371 | 0.1~1 | 0.05 | <0.7% | <0.6% | <0.4% |
| WH.851372 | 0.3~2 | 0.1 | <0.6% | <0.5% | <0.4% |
| WH.851373 | 0.5~5 | 0.5 | <0.5% | <0.4% | <0.2% |
| WH.851375 | 1~10 | 1.0 | <0.5% | <0.4% | <0.2% |
Optional Accessory
| Cat. No. | Description |
|---|---|
| WH.W860012 | Needle, Injection, 0.8×40mm (ID×L) |
| WH.W860024 | Needle, Injection, 1.2×35mm |
| WH.W860025 | Needle, Injection, 1.2×50mm |
| WH.W860032 | Needle, Injection, 1.6×30mm |
| WH.W860033 | Needle, Injection, 1.6×100mm |
| WH.W860043 | Needle, Injection, 2.0×40mm |
| WH.851380 | Manifold, Straight, 4 position, 24well |
| WH.851381 | Manifold, Straight, 8 position, 96well |
| WH.851382 | Manifold, Angular, 4 position, 24well |
| WH.851383 | Manifold, Angular, 8 position, 96well |
| WH.851419 | Tube, Syringe, 0.3~10㎖, cut, 1m |
| WH.851424 | Tube, Syringe, 20㎖, cut, 1m |
Image Captions
- Premium Syringe 174
- Basic Syringe 172
- Premium Syringe 174 w/ detachable Valve System
- Injection Needle, Optional
- Microtest Manifold, Optional
- Dose by dose distribution
- Sterile work
- Dispensing distribution
- Filtration at your nozzle tip
제품 이미지
🏷️Daihan Science 상품 둘러보기
동일 브랜드의 다른 상품들을 확인해보세요
Daihan Science
WHEATON Bench Top Roller Culture Apparatus
1,132,520원
Daihan Science
WHEATON Multi-function Premium Sample Vials
1,550원
Daihan Science
WHEATON High-grade Self-Refilling Dispenser
57,590원
Daihan Science
WHEATON 11mm Crimp / Snap Top Premium Vials
49,880원
Daihan Science

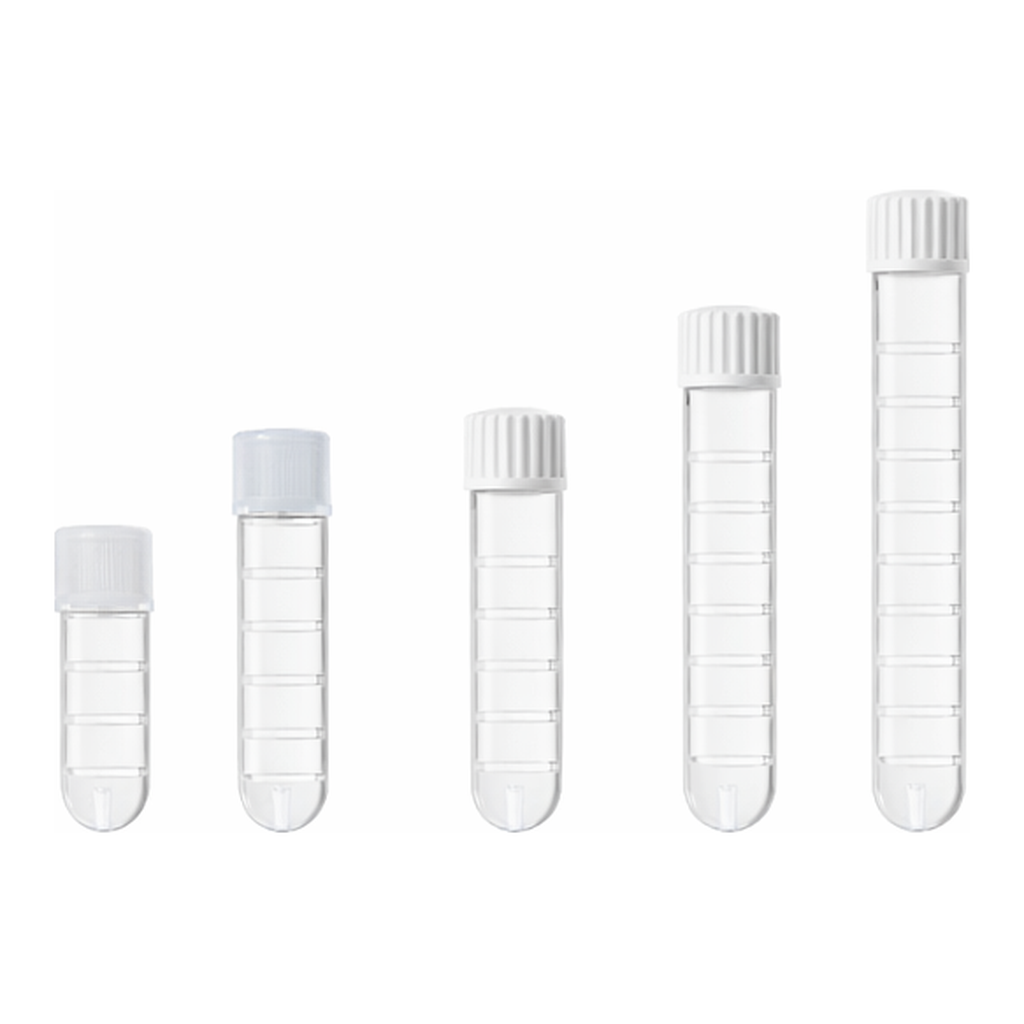

WHEATON 1.2~5㎖ Round Bottom Cryogenic Vials
