Mini Gel Tank and Blot Module Set

The Mini Gel Tank and Blot Module Set is an electrophoresis and blotting system for mini gels. The Mini Gel자세히 알아보기

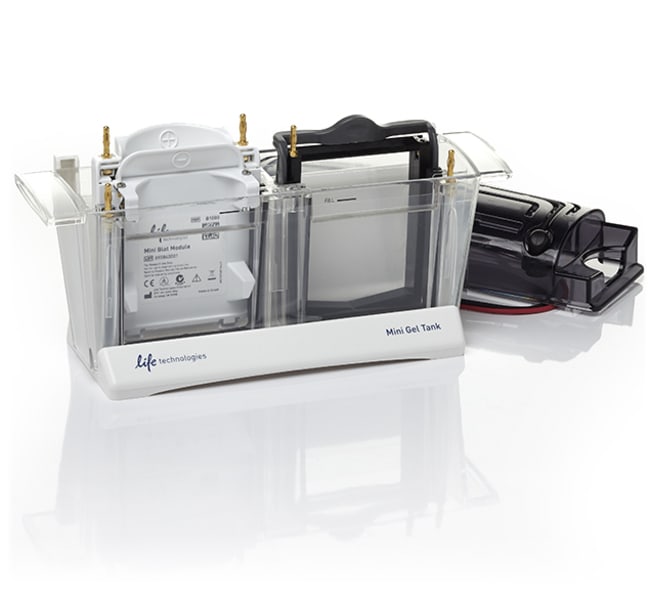

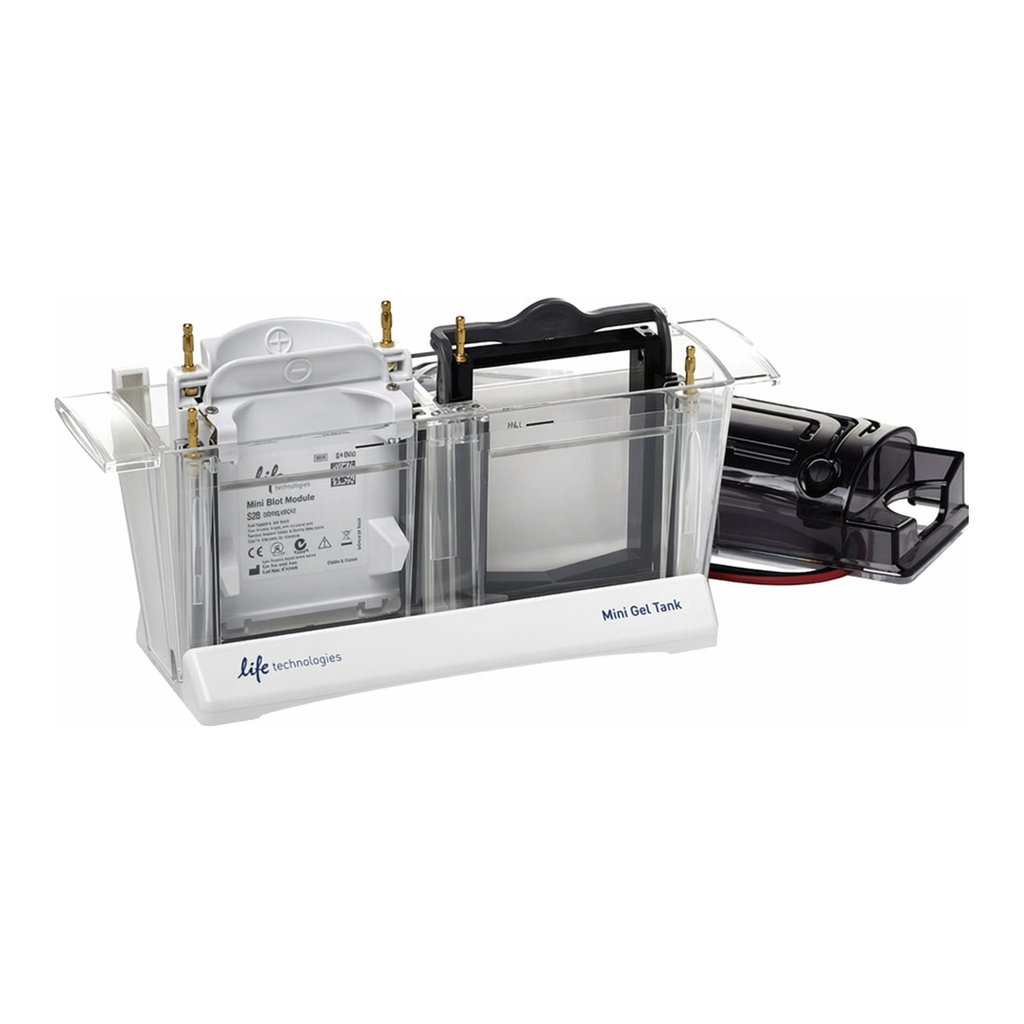

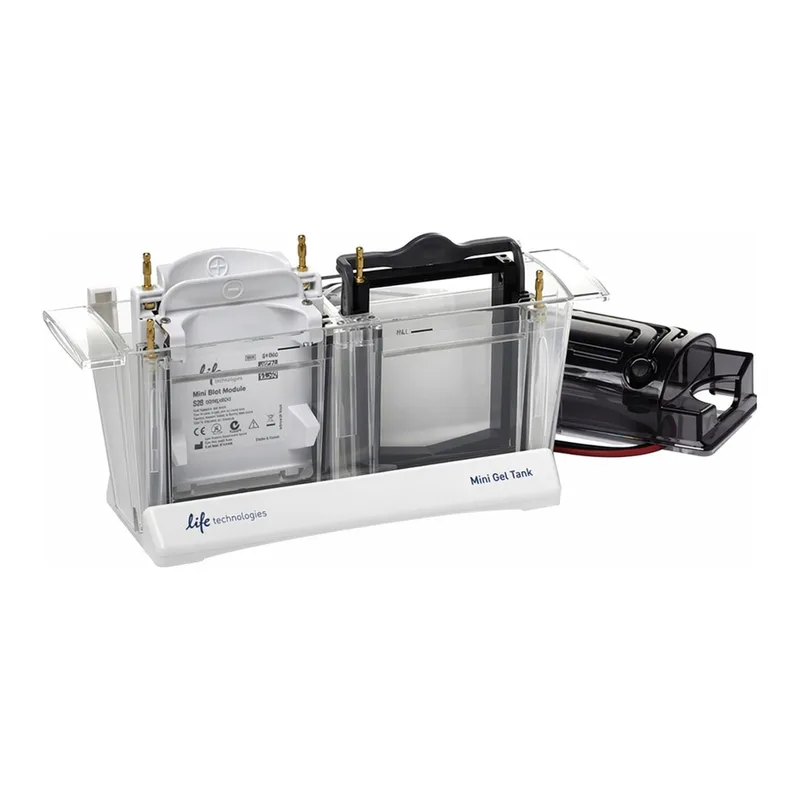

The Mini Gel Tank and Blot Module Set is an electrophoresis and blotting system for mini gels. The Mini Gel Tank is a vertical mini-gel electrophoresis system with a unique tank design that has convenient side-by-side gel loading and enhanced viewing during use. The tank can accommodate up to two gels per run with each gel run in its own separate chamber, making it easy to run just one gel. The tank is compatible with all Invitrogen precast mini gels and SureCast handcast gels.

The Mini Blot Module is a wet transfer device used exclusively with the Mini Gel Tank. The tank accommodates one blot module per chamber, or two blot modules total with the side-by-side layout. The universal connection and molded gasket make the blot module easy to use, while the inner core of the blot module allows for use of less methanol-based transfer buffer per wet transfer. At the recommended conditions and constant voltage, proteins can be transferred to nitrocellulose or PVDF membranes typically in 30 to 60 minutes.

See all available electrophoresis chamber systems ›

사양

용량2 Gels/Run

Gel CompatibilityNovex™ Mini Gels

젤 크기Mini

제품라인Invitrogen

Running Time35 min.

유형Mini Gel Tank and Blot Module Set

수량1 set

배송 조건Room Temperature

최대 전압500 VDC

Unit SizeEach
