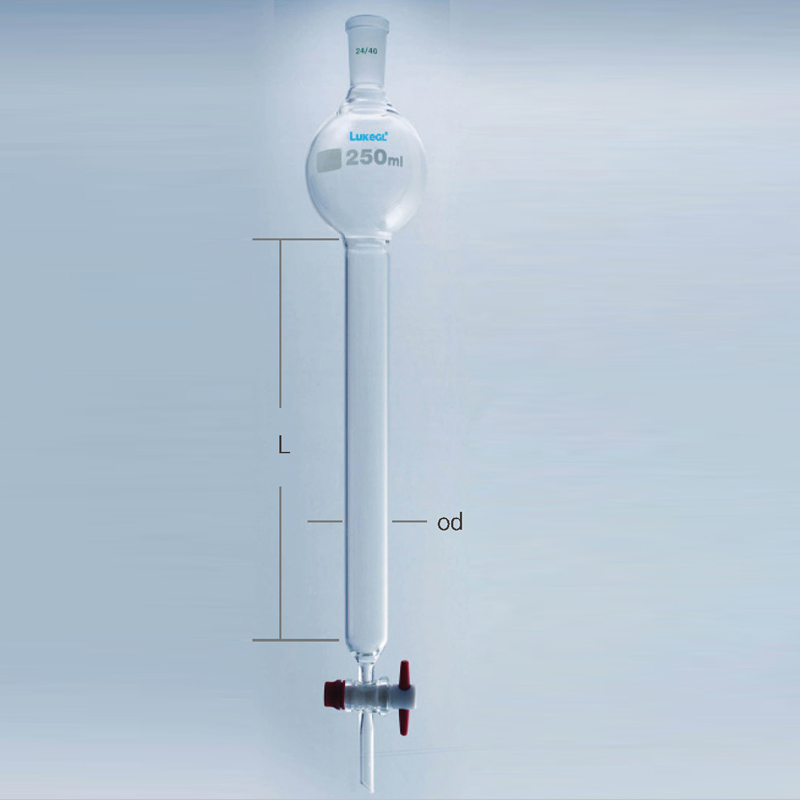

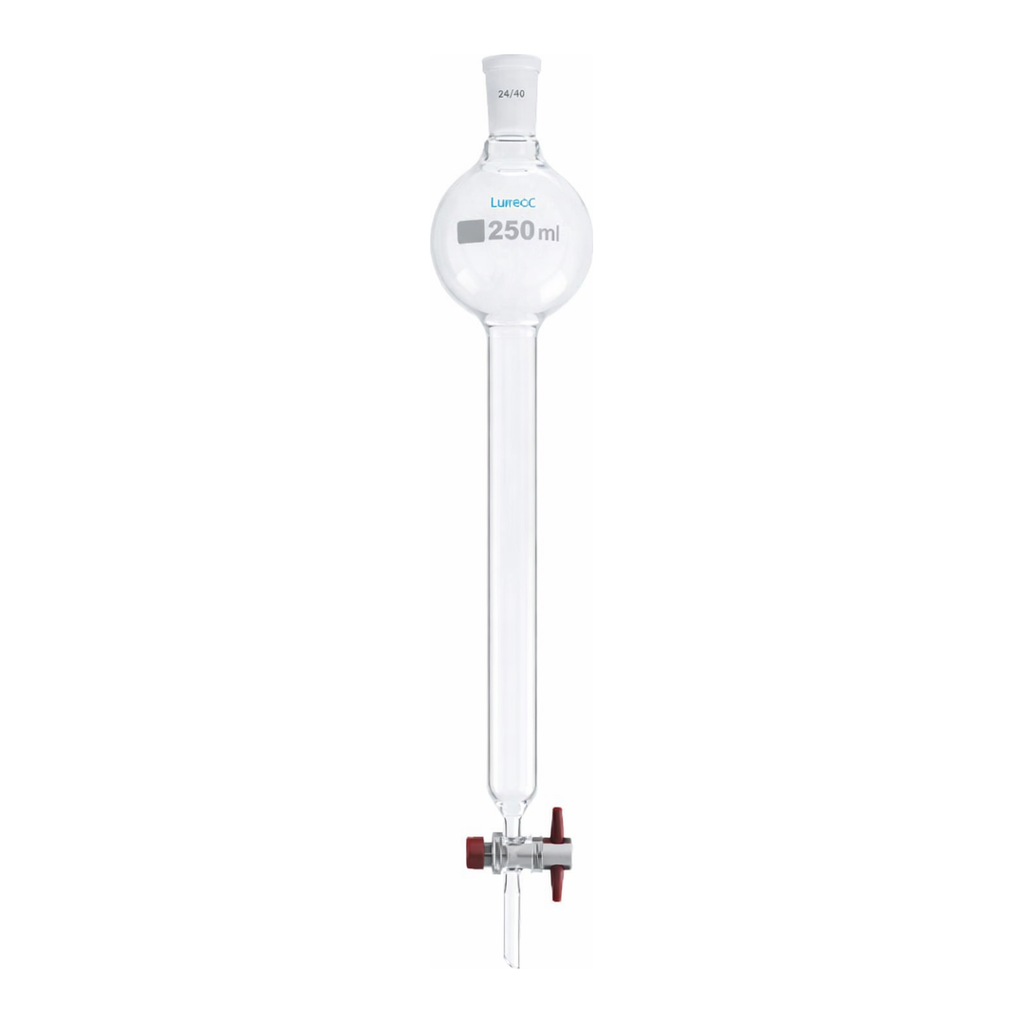

Chromatography Ball Column 크로마토그래피 컬럼, PTFE 콕크, LukeGL

■ Borosilicate Glass 3.3

■ Filter Pore Size : 40 ~ 60 um (요청에 의해 변경 가능)
■ PTFE-Plug, Stopcock, Straight Bore
■ Joint Size 기본 24/40 이며, 요청에 의해 변경 가능
■ 요청에 의해 규격 외 사이즈도 제작 공급 가능함
■ LukeGL® without Glass Filter, 기본형

| Cat. No | Model | Bore | O.D. | Length | 용량 (ml) | | |
| --- | --- | --- | --- | --- | --- | --- |
| Body | Ball | |
| --- | --- | --- | --- | --- | --- | --- |
| C08-10-558 | 54407B1 | 2.5 | Φ13 mm | 250 mm | 15 | 250 |
| C08-10-564 | 54407B2 | Φ25 mm | 85 |
| C08-10-570 | 54407B3 | Φ38 mm | 300 mm | 270 | 500 |
| C08-10-576 | 54407B4 | 4.0 | Φ50 mm | 500 |
| C08-10-582 | 54407B5 | 500 mm | 830 | 1000 |
| C08-10-588 | 54407B6 | 6.0 | Φ65 mm | 1400 |

with Glass Filter, 필터 부착형

| Cat. No | Model | Bore | O.D. | Length | 용량 (ml) | | |
| --- | --- | --- | --- | --- | --- | --- |
| Body | Ball | |
| --- | --- | --- | --- | --- | --- | --- |
| C08-10-594 | 54507B1 | 2.5 | Φ13 mm | 250 mm | 15 | 250 |
| C08-10-600 | 54507B2 | Φ25 mm | 85 |
| C08-10-606 | 54507B3 | Φ38 mm | 300 mm | 270 | 500 |
| C08-10-612 | 54507B4 | 4.0 | Φ50 mm | 500 |
| C08-10-618 | 54507B5 | 500 mm | 830 | 1000 |
| C08-10-624 | 54507B6 | 6.0 | Φ65 mm | 1400 |
