Distillation Kit For Process Reactor System 디스틸레이션 장치, 대용량 반응기 시스템용
✨AI 추천 연관 상품
AI가 분석한 이 상품과 연관된 추천 상품들을 확인해보세요
연관 상품을 찾고 있습니다...

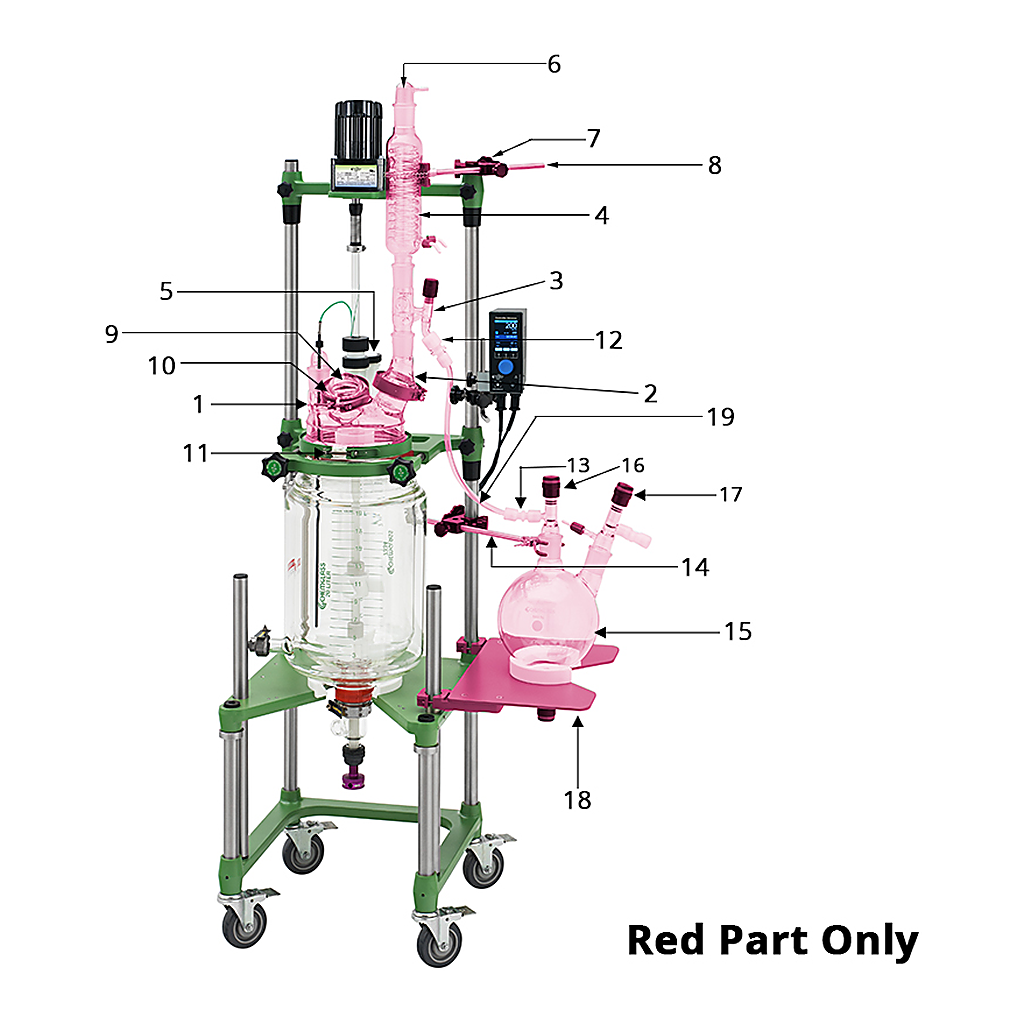

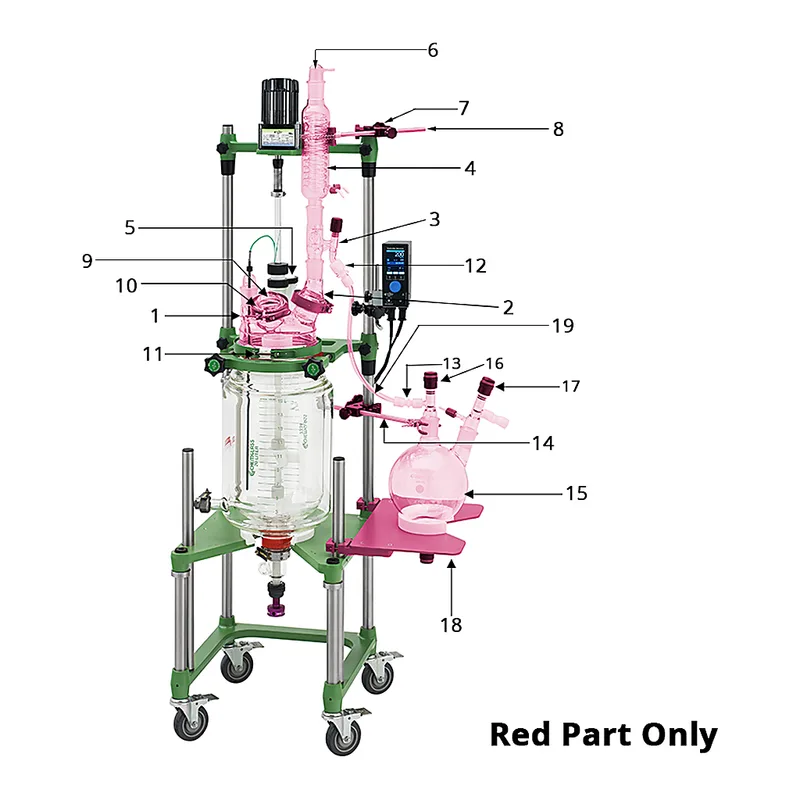

Distillation Kit for 10L & 20L Reactor System
| Cat. No. | Model | 적용반응기 용량 | Receiving Flask |
|---|---|---|---|
| R08-132-501 | 1965D-110 | 10 L | 5 L |
| R08-132-504 | 1965D-120 | 20 L | 10 L |
● Distillation Kit add-on for exiting 10, 15 or 20L Reactor System
구성 Component
| Cat. No. | Model | Description |
|---|---|---|
| R08-132-608 | 1946-D-50 | 200 mm, 5-Neck Lid, 45/50 CN, ① |
| R08-132-610 | 1965-D-205 | Adapter, 60 mm to 45/50, Angled, ② |
| R08-132-614 | 1235-A-45 | Adapter, Distillation 45/50, ③ |
| R08-132-618 | 1219-20 | Condenser, Double Coil, 45/50, ④ |
| R02-132-584 | 3002-L-24 | Stopper, 45/50, ⑤ |
| R08-132-622 | 1014-45 | Inlet Adapter, 45/50, ⑥ |
| R02-132-512 | 9253-10 | Kwik Clamp, ⑦ |
| R08-132-626 | 9220-E-01 | Chain Clamp, 12”, ⑧ |
| R02-132-664 | 149-01 | 60 mm Dome, ⑨ |
| R02-132-668 | 141-T-11 | 60 mm Quick Clamp, ⑩ |
| R02-132-672 | 147-80 | 60 mm Perflouro O-ring, ⑪ |
| R08-132-676 | 1975-22 | 3/4 to 1/2 Compression Fitting, ⑫ |
| R08-132-680 | 1975-21 | 1/2 to 1/2 Compression Fitting, ⑬ |
| R08-132-684 | 9205-E-10 | Clamp, 3-finger, 12”, ⑭ |
| R08-132-688 | 1965-D-220 | 5 L Receiving Flask, 2 Neck, 45/50, ⑮ |
| R08-132-692 | 1965-D-225 | 10 L Receiving Flask, 2 Neck, 45/50 |
| R08-132-700 | 1965-D-210 | Distillation Adapter, 45/50 to 0~14 Valve,(16) |
| R08-132-704 | 1965-D-215 | Distillation Adapter, Vent, 45/50 to 0~14 Valve, (17) |
| R08-132-708 | 1963-D-10 | Shelf, Distillation, (18) |
| R08-132-712 | 1975-03 | FEP Tubing; 1/2” OD×3/8” ID×10ft, (19) |

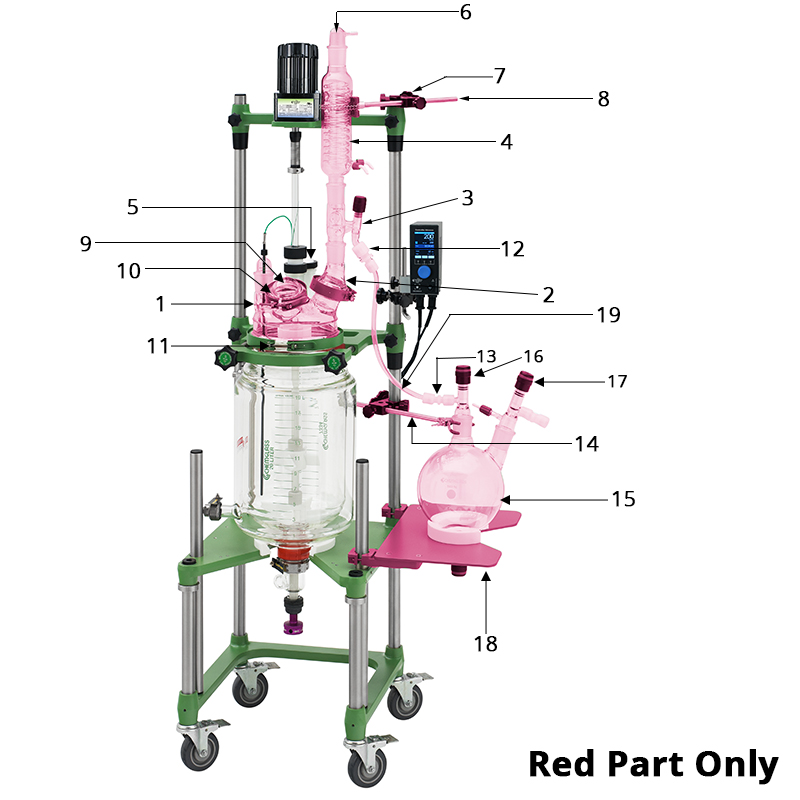

Distillation Kit for 30L & 50L Reactor System
| Cat. No. | Model | Receiving Flask | Description |
|---|---|---|---|
| R08-132-508 | 1968-D-410 | 10 L | Distillation Kit |
| R08-132-512 | 1968-D-420 | 20 L |
● Distillation Kit add-on for exiting 10, 15 or 20L Reactor System
구성 Component
| Cat. No. | Model | Description |
|---|---|---|
| R08-132-614 | 1235-A-45 | Adapter, Distillation 45/50, ① |
| R02-132-792 | 1215-C-10 | Condenser, High Efficiency, 45/50, ② |
| R08-132-716 | 1014-C-02 | Inlet Adapter, 29/42, ③ |
| R02-132-512 | 9253-10 | Kwik Clamp, Small, ④ |
| R08-132-626 | 9220-E-01 | Chain Clamp, 12” Arm, ⑤ |
| R02-132-852 | 9253-20 | Kwik Clamp, Large, ⑥ |
| R08-132-720 | 1968-D-128 | Support Rod, Distillation for 1968-X Frame, ⑦ |
| R08-132-676 | 1975-22 | 3/4 to 1/2 Compression Fitting, ⑧ |
| R08-132-680 | 1975-21 | 1/2 to 1/2 Compression Fitting, ⑨ |
| R08-132-684 | 9205-E-10 | Clamp, 3-finger, 12”, ⑩ |
| R08-132-692 | 1965-D-225 | 10 L Receiving Flask, 2 Neck, 45/50, ⑪ |
| R08-132-696 | 1965-D-230 | 20 L Receiving Flask, 2-Neck, 45/50 |
| R08-132-700 | 1965-D-210 | Adapter, Distillation, 45/50 to 0 ~ 14 Valve, ⑫ |
| R08-132-704 | 1965-D-215 | Adapter, Distillation, Vent, 45/50 to 0 ~ 14 Valve, ⑬ |
| R08-132-710 | 1963-D-50 | Shelf, Distillation, ⑭ |
| R08-132-712 | 1975-03 | FEP Tubing; 1/2” OD×3/8” ID×10ft, ⑮ |
| C26-132-110 | 1975-30 | Tubing Cutter |
🏷️Lklab Korea 상품 둘러보기
동일 브랜드의 다른 상품들을 확인해보세요
Lklab Korea

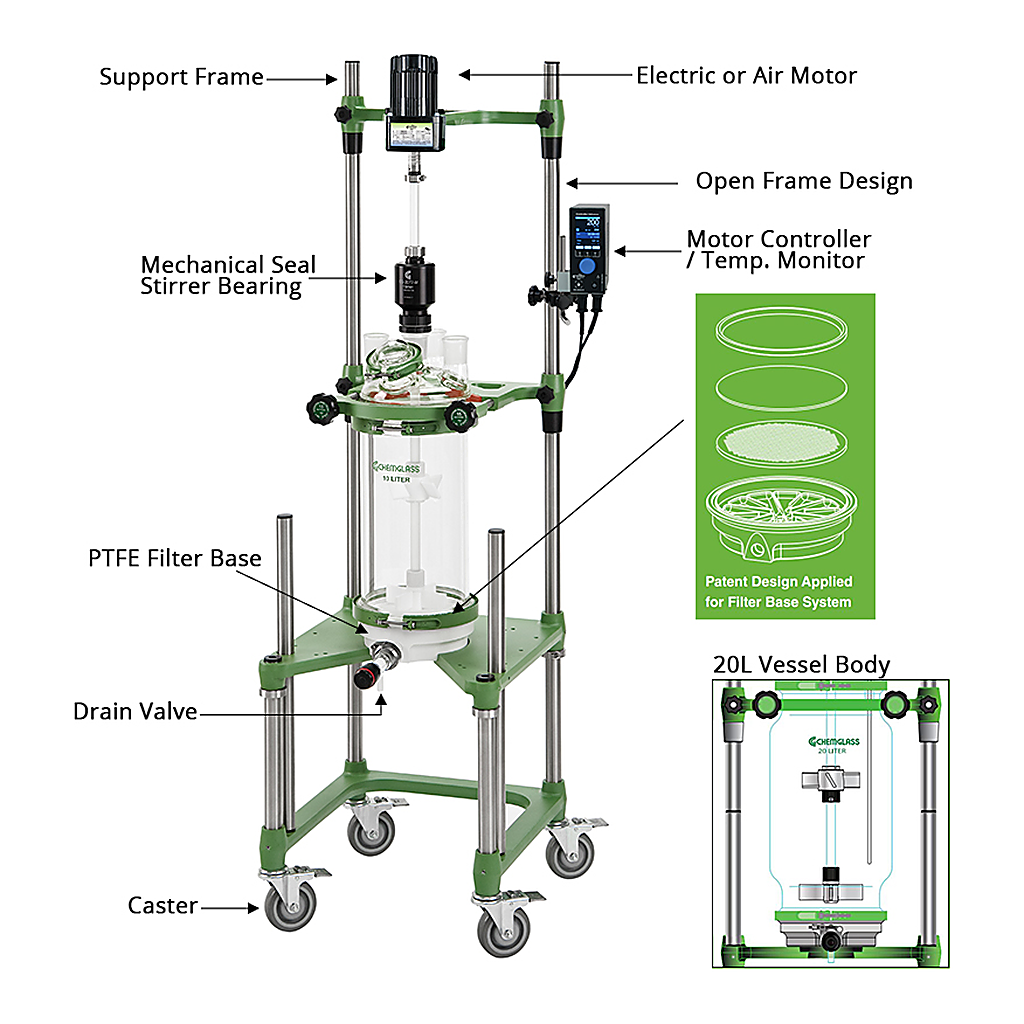

Large Process Filter Reactor Sytem, Unjacketed 대형 반응 시스템, 필터부착형
