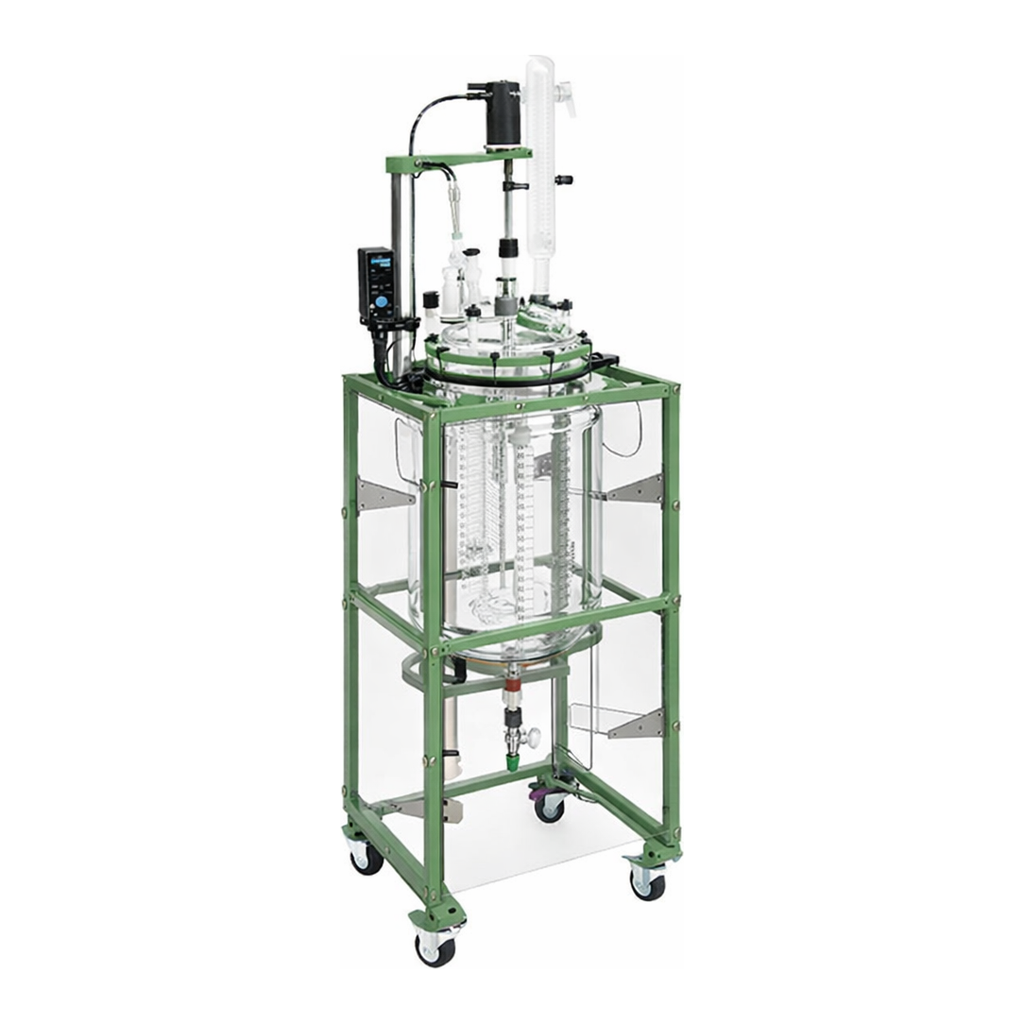

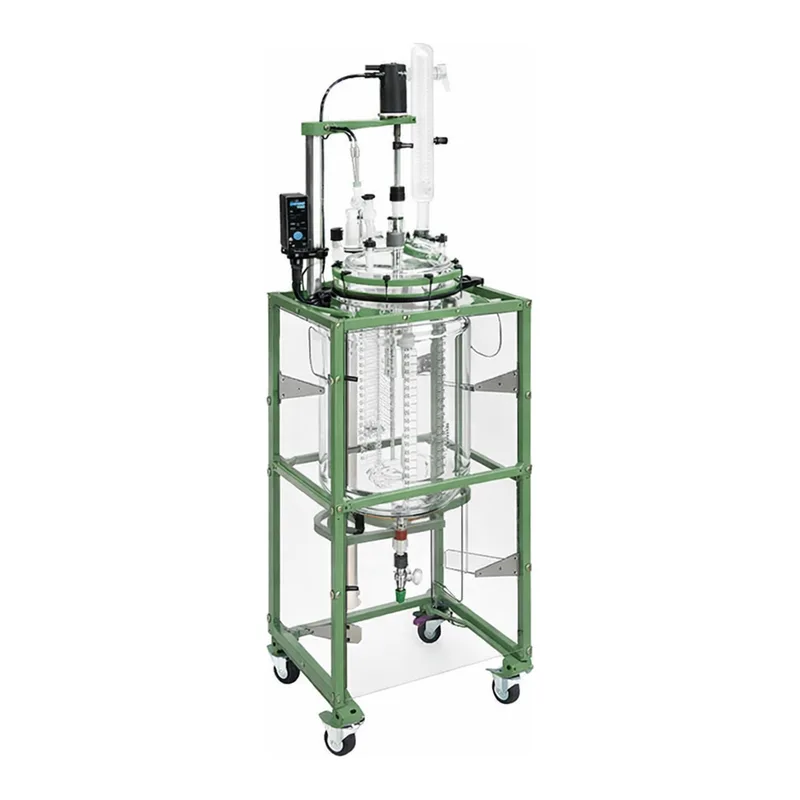

Pilot Scale Process Reactor, Jacketed 자켓식 대형 반응 시스템, 100 L (400mm Tall & Squatty )
| 상품 옵션 정보 | ||||||||
|---|---|---|---|---|---|---|---|---|
| 카탈로그 번호 | CAS 번호 | 설명 | 상태 | 단위 | 판매가 | 할인가 | 가격(VAT포함) | 수량 / 장바구니 / 찜 |
| R08-132-084 | - | R08-132-084 Reactor System, 100L Squatty,400mm flange/Electric/, 1/EA | 재고문의 | ea | 134,930,600원 | - | 148,423,660원 | |
| R08-132-083 | - | R08-132-083 Reactor System, 100L Tall, Complete, 400mm Flange/Electric/, 1/EA | 재고문의 | ea | 126,250,500원 | - | 138,875,550원 | |
| R02-132-706 | - | R02-132-706 100L Jacketed Reaction Vessel,/Squatty, 3" Beaded Pipe, Detachable/, 1/EA | 재고문의 | ea | 69,343,000원 | - | 76,277,300원 | |
| R02-132-705 | - | R02-132-705 100L Jacketed Reaction Vessel,/Tall, 3" Beaded Pipe, Detachable/, 1/EA | 재고문의 | ea | 58,824,000원 | - | 64,706,400원 | |
| R02-132-717 | - | R02-132-717 Open Air Support Frame/28.25/, 1/EA | 재고문의 | ea | 36,674,900원 | - | 40,342,390원 | |
| R02-132-903 | - | R02-132-903 400mm Reaction Vessel Lid/7-Neck, 45/50 CN, 5-45/50 SN, 1-Angled/80mm Flat O-Ring Flange SN, 1/EA | 재고문의 | ea | 12,210,700원 | - | 13,431,770원 | |
| R02-132-905 | - | R02-132-905 Perfiuoroelastomer Gasket, 400mm//, 1/EA | 재고문의 | ea | 6,097,100원 | - | 6,706,810원 | |
| R02-132-500 | - | R02-132-500 Digital Controller Only for Brushless DC Motor/Wifi/115V-230V, 1/EA | 재고문의 | ea | 4,657,500원 | - | 5,123,250원 | |
| R02-132-709 | - | R02-132-709 1/4 HP Brushless DC Motor Only/24v, 3/4” Shaft Diameter/, 1/EA | 재고문의 | ea | 4,054,100원 | - | 4,459,510원 | |
| R02-132-703 | - | R02-132-703 30mm Stirrer Shaft, Hollow, Lower Portion Sandblasted//, 1/EA | 재고문의 | ea | 3,430,000원 | - | 3,773,000원 | |
| R02-132-715 | - | R02-132-715 13/with Stabilizing Bushing/, 1/EA | 재고문의 | ea | 3,080,100원 | - | 3,388,110원 | |
| R02-132-707 | - | R02-132-707 3" Beaded Pipe, Zero Dead Space, Drain Valve/with 1 1/2" Beaded Pipe Sidearm/, 1/EA | 재고문의 | ea | 2,766,400원 | - | 3,043,040원 | |
| R02-132-701 | - | R02-132-701 High Effciency Condenser, 45/50//, 1/EA | 재고문의 | ea | 2,765,300원 | - | 3,041,830원 | |
| R02-132-732 | - | R02-132-732 Digital Temperature Monitor, Type "T"//, 1/EA | 재고문의 | ea | 2,175,500원 | - | 2,393,050원 | |
| R02-132-878 | - | R02-132-878 PT100 Temp. Sensor/1/4/w6100용, 1/EA | 재고문의 | ea | 1,898,400원 | - | 2,088,240원 | |
| R02-132-871 | - | R02-132-871 PT100 Temp. Sensor/1/4/w9100용, 1/EA | 재고문의 | ea | 1,841,400원 | - | 2,025,540원 | |
| R02-132-714 | - | R02-132-714 30mm Bore / 10＂ PTFE Blade Ass//, 1/EA | 재고문의 | ea | 1,527,000원 | - | 1,679,700원 | |
| R02-132-850 | - | R02-132-850 Themocouple Adapter/45/50 PTFE/Complete with 14mm Compression Fitting, 1/EA | 재고문의 | ea | 1,223,900원 | - | 1,346,290원 | |
| R02-132-806 | - | R02-132-806 PTFE Stir Bearing/30mm/for 100L Reactor, 1/EA | 재고문의 | ea | 1,177,300원 | - | 1,295,030원 | |
| R02-132-711 | - | R02-132-711 30mm Stirrer Shaft Split Coupling//, 1/EA | 재고문의 | ea | 1,023,100원 | - | 1,125,410원 | |
| R02-132-674 | - | R02-132-674 O-ring/Perflouro/80mm Flange White, 1/EA | 재고문의 | ea | 808,900원 | - | 889,790원 | |
| R02-132-862 | - | R02-132-862 PTFE Flake Catching Cup/30mm/for 100L Reactor, 1/EA | 재고문의 | ea | 739,300원 | - | 813,230원 | |
| R02-132-909 | - | R02-132-909 3＂ Beaded Pipe Coupling//, 1/EA | 재고문의 | ea | 433,100원 | - | 476,410원 | |
| R02-132-812 | - | R02-132-812 Quick Release Clamp/PTFE Coated/80mm, 1/EA | 재고문의 | ea | 413,400원 | - | 454,740원 | |
| R02-132-386 | - | R02-132-386 1 1/2inch Beaded Pipe Coupling//, 1/EA | 재고문의 | ea | 355,800원 | - | 391,380원 | |
| R02-132-808 | - | R02-132-808 Glass Cap/80mm/, 1/EA | 재고문의 | ea | 346,500원 | - | 381,150원 | |
| R02-132-719 | - | R02-132-719 Stopper, PTFE, 45/50 with Loosening Ring//, 1/EA | 재고문의 | ea | 307,100원 | - | 337,810원 | |
| R02-132-852 | - | R02-132-852 Universal Kwik Mount klamp (2ea)//, 1/EA | 재고문의 | ea | 276,100원 | - | 303,710원 | |
| R02-132-784 | - | R02-132-784 Beam Torque Wrench//, 1/EA | 재고문의 | ea | 236,000원 | - | 259,600원 | |
| R02-132-504 | - | R02-132-504 1/2inch OD S.S Rod/Bent 90˚/, 1/EA | 재고문의 | ea | 202,800원 | - | 223,080원 | |
| R02-132-890 | - | R02-132-890 Stirrer Shaft Retainer, Nylon/30mm/for 100L Reactor, 1/EA | 재고문의 | ea | 193,100원 | - | 212,410원 | |
| R02-132-606 | - | R02-132-606 Clamp, Keck, Brown, Standard Taper, Fits Joint Size 45/50//10/pk, 1/EA | 재고문의 | ea | 162,000원 | - | 178,200원 | |
| R02-132-508 | - | R02-132-508 Extension Cord, Standard Female to Mini Male Plug/Type "T"/, 1/EA | 재고문의 | ea | 106,100원 | - | 116,710원 | |
| R02-132-788 | - | R02-132-788 7/16inch Deep Socket/6 Point, 1/4inch Drive/, 1/EA | 재고문의 | ea | 16,900원 | - | 18,590원 | |
| R02-132-718 | - | R02-132-718 1/2＂ Deep Socket, 6 Point, 1/4 Drive//, 1/EA | 재고문의 | ea | 16,100원 | - | 17,710원 | |
| R02-132-702 | - | R02-132-702 30mm Stirrer Shaft, Hollow, Lower Portion Sandblasted//, 1/EA | 재고문의 | ea | 0원 | - | 0원 | |

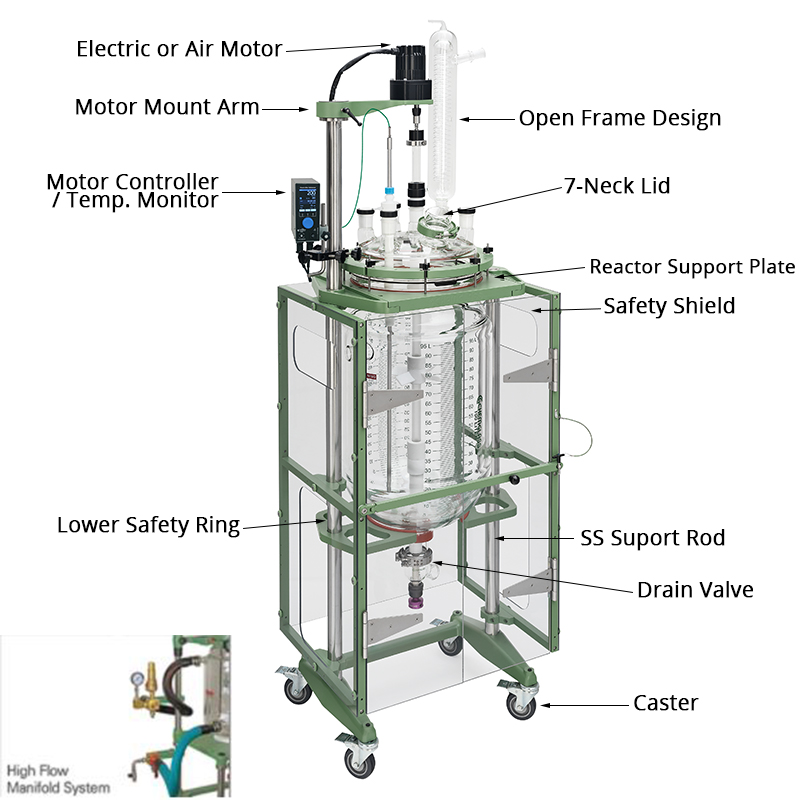

■ Complete System : Auto-center Stand와 Electronic 모터를 포함
■ 높이 : Electric (2360 mm) 모터 포함 높이임
■ Valve 하단에서 바닥까지의 높이 : 260 mm (공통)
■ Motor Mount Arm : Can Unlock and Swing Out Giving Greater Access
to Reactor
■ Smaller Footprint Support Frame : with Oversized Rugged S.S. Uprights
and Heavy Duty PTFE Coated Aluminum Fittings
■ High Flow Manifold : M30×1.5 Circular Fittings -60 to +200℃
■ Safety Shield : On All Four Sides
■ Graduation Scale : On Both Sides
■ Zero Dead Space Detachable Drain Valve : Has Knob With Laser Etched
Directional Arrows For Open And Clos
■ Chemglass
| Cat. No | Model | 용량 | Motor |
| --- | --- | --- | --- |
| R08-132-083 | 1968-w6100 | 100 L Tall | Electric |
| R08-132-084 | 1968-w9100 | 100 L Squatty |
Standard Component, 구성품
| Cat. No. | Model | Description |
|---|---|---|
| R02-132-701 | 1215-C-02 | High Effciency Condenser, 45/50 ① |
| R02-132-702 | 2097-101 | 30mm Stirrer Shaft, Hollow, Lower Portion Sandblasted ② |
| R02-132-703 | 2097-102 | |
| R02-132-806 | 2077-H-07 | 30mm PTFE Stirrer Bearing ③ |
| R02-132-890 | 2048-04 | 30mm Stirrer Shaft Retainer, Nylon ④ |
| R02-132-903 | 1968-E-400 | 400mm Reaction Vessel Lid, 7-Neck, 45/50 CN, 5-45/50 SN, 1-Angled 80mm Flat O-Ring Flange SN ⑤ |
| R02-132-606 | 145-09 | Clamp, Keck, Brown, Standard Taper, Fits Joint Size 45/50, 10 / Pkg ⑥ |
| R02-132-808 | 149-06 | 80mm Glass Cap ⑦ |
| R02-132-674 | 147-81 | O-Ring, Perfluoro, 80mm Flange White ⑧ |
| R02-132-812 | 141-T-10 | 80mm Quick Release Clamp, PTFE-Coated ⑨ |
| R02-132-905 | 1968-H-02 | Perfluoroelastomer Gasket, 400mm ⑩ |
| R02-132-705 | 1968-W100 | 100 Liter Jacketed Reaction Vessel, Tall, 3` Beaded Pipe, Detachable ⑪ |
| R02-132-706 | 1968-W101 | 100 Liter Jacketed Reaction Vessel, Squatty, 3` Beaded Pipe, Detachable ⑪ |
| R02-132-707 | 1968-T-55 | 3Beaded Pipe, Zero Dead Space, Drain Valve with 1 1/2 Beaded Pipe Sidearm ⑫ |
| R02-132-386 | 1968-69 | 1/2` Beaded Pipe Coupling * 2 ⑬ |
| R02-132-909 | 1968-T-75 | 3` Beaded Pipe Coupling ⑭ |
| R02-132-709 | 2033-B-25 | 1/4 HP Brushless DC Motor Only, 24v, 3/4” Shaft Diameter ⑮ |
| R02-132-500 | 2033-V-75 | Digital Controller Only for Brushless DC Motor, 120v (Electric Only) ⑯ |
| R02-132-711 | 2046-X-130 | 30mm Stirrer Shaft Split Coupling ⑰ |
| R02-132-732 | 3498-01 | Digital Temperature Monitor, Type T ⑱ |
| R02-132-508 | 3499-02 | Extension Cord, Standard Female to Mini Male Plug, Type T ⑲ |
| R02-132-871 | 1978-P946 | 1/2” Diameter×1143 mm Long PT100 Temp. Sensor, w9100용 ⑳ |
| R02-132-878 | 1978-P955 | 1/2” Diameter×1400 mm Long PT100 Temp. Sensor, w6100용 ⑳ |
| R02-132-850 | 1971-87 | 45/50 PTFE Thermocouple Stabilizer, Complete with 14mm Compression Fitting ㉑ |
| R02-132-504 | 3498-03 | 90° Support Rod, 1/2` OD, Stainless Steel * 2 ㉒ |
| R02-132-852 | 9253-20 | Large Kwik Klamp II, Hardcote & PTFE Anodized Finish * 2 ㉓ |
| R02-132-714 | 2095-R50 | 10` Diameter Upper Agitator, PTFE * 2 ㉕ |
| R02-132-715 | 2095-M-55 | 13` Diameter Lower Agitator, PTFE, with Stabilizing Bushing ㉖ |
| R02-132-717 | 1968-Y-24M | Open Air Support Frame, 28.25W x 20 D x 83.5` H ㉗ |
| R02-132-784 | 1963-B-10 | Beam Torque Wrench |
| R02-132-718 | 1963-B-15 | 1/2Deep Socket, 6 Point, 1/4 Drive |
| R02-132-788 | 1963-B-14 | 7/16Deep Socket, 6 Point, 1/4 Drive |
| R02-132-719 | 3002-L-45 | Stopper, PTFE, 45/50 with Loosening Ring *3 |
| R02-132-862 | 2093-22 | 30mm PTFE Flake Catching Cup |
