■ 조절기 분리형으로 heatMIX Control 기본포함
■ 테프론 코팅 Aluminum Heating Block
■ Liquid, Gas 환경에서 사용가능
■ Over Temp. Protection Pt100 센서 내장, RS232 인터페이스
■ 2 mag
| | | | |

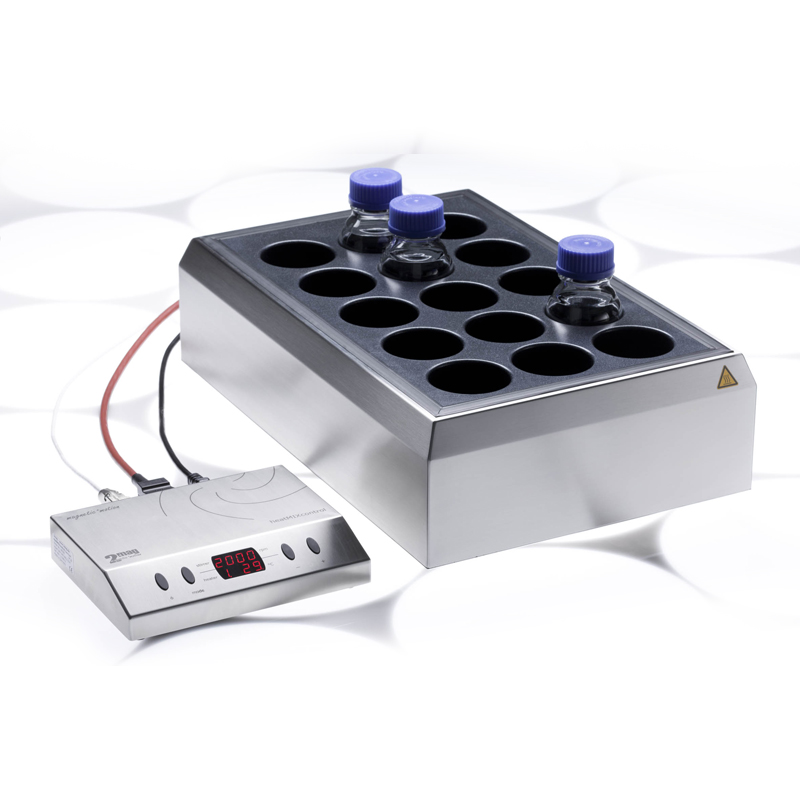

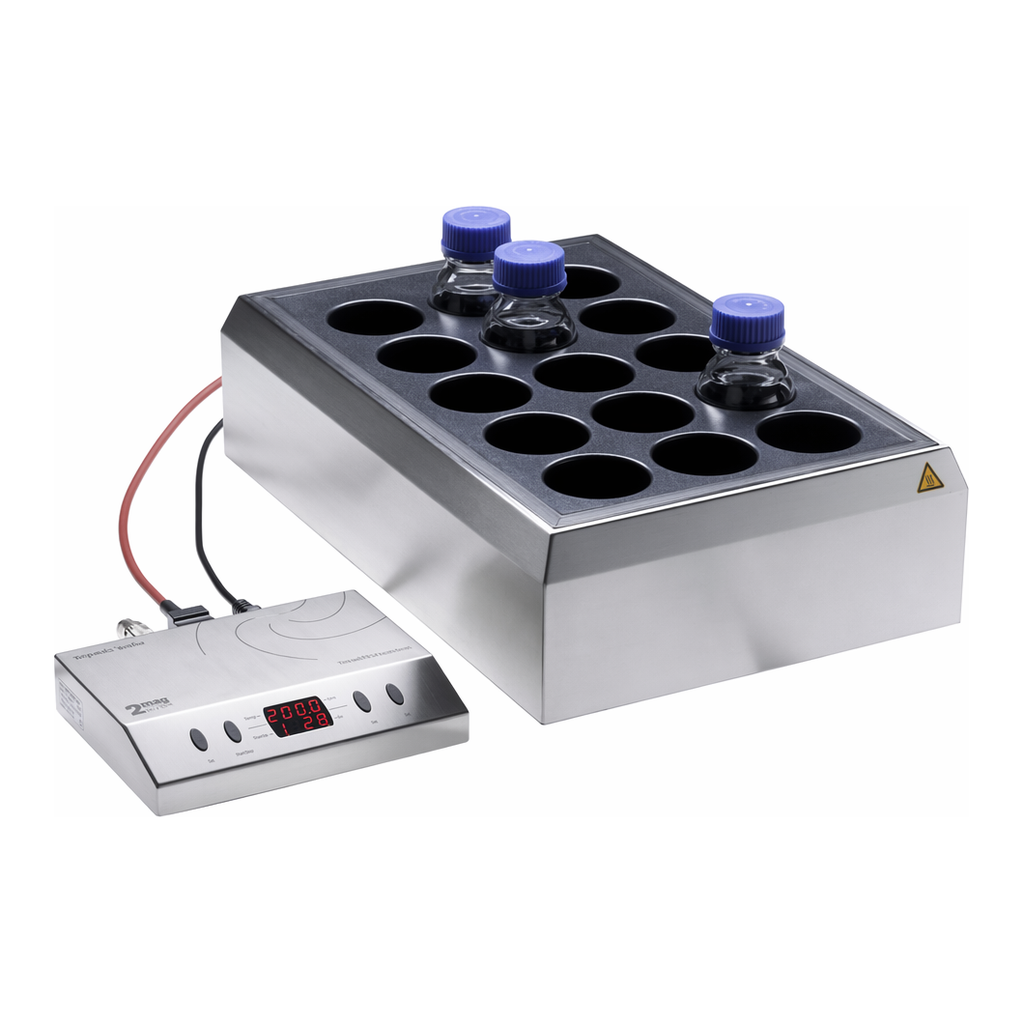

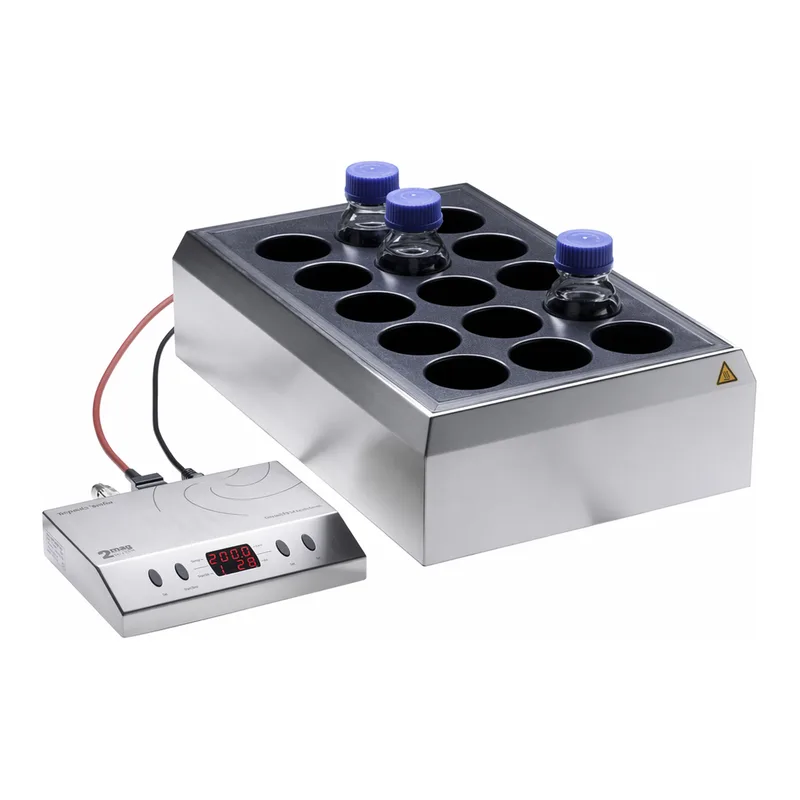

| --- | --- | --- | --- |15 Point Stirring Heating Block
| Cat. No | Model | Hole Size | Stirring Volume |
| --- | --- | --- | --- |
| H04-75-333 | 63100 | Φ57.5×h48 mm | 1 ~ 150 ml |
| H04-75-340 | 63250 | Φ71.5×h78 mm | 1 ~ 400 ml |
|
|
|
| Cat. No. |
H04-75-333 |
H04-75-340 |
| --- |
--- |
--- |
| Model |
63100 |
63250 |
| --- |
--- |
--- |
| Stirring Point |
15 |
|
| Point Distance |
65 mm |
84 mm |
| Hole Size |
Φ57.5×h48 mm |
Φ71.5×h78 mm |
| Stirring Volume |
1 ~ 150 ml |
1 ~ 400 ml |
| 전용 용기 |
100 ml Lab. Bottle |
250 ml Lab. Bottle |
| Stirring Power |
40 W |
|
| Power Setting |
4 ~ 40 W (10 Step) |
|
| Max. Temp. |
Max. 200℃ |
|
| Speed Range |
100 ~ 2000 rpm |
|
| Size |
w280×d430×h120 mm |
w335×d515×h150 mm |
| Weight |
23 kg |
31 kg |
| Power |
230V, 50/60 Hz |
|
