Thermo Scientific™

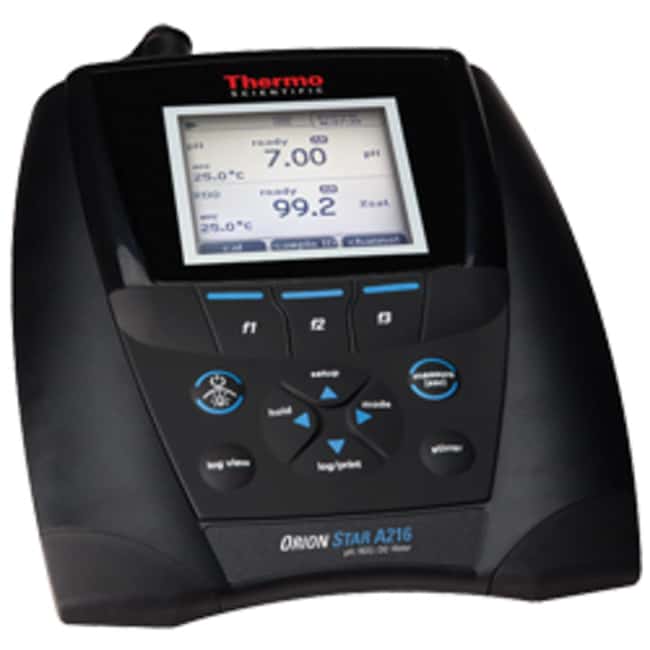

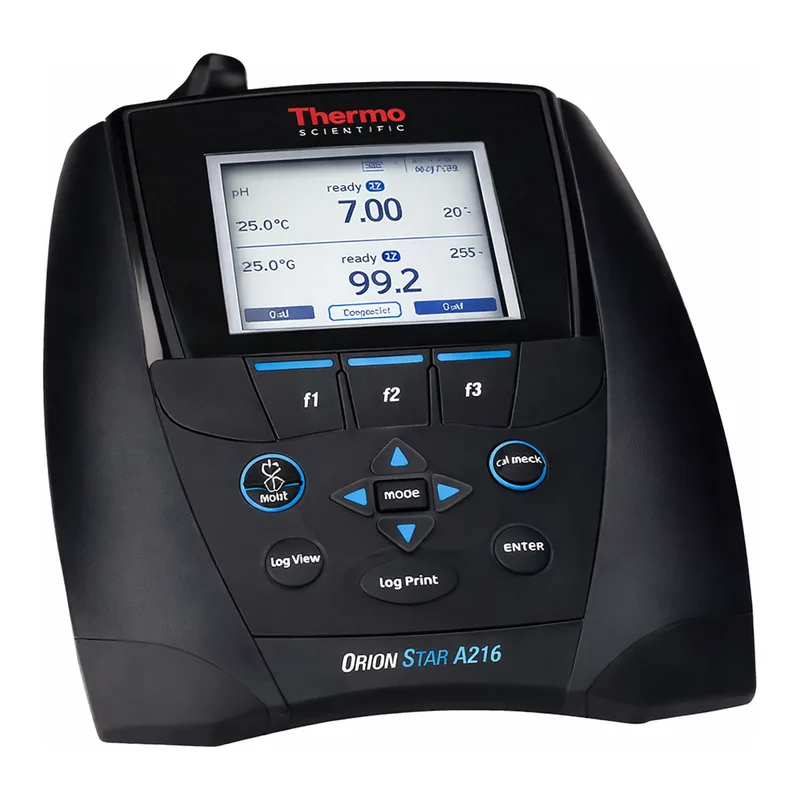

Orion Star™ A216 pH/Dissolved Oxygen Benchtop Multiparameter Meter

Reliably measure pH, dissolved oxygen and temperature with our pH/DO/RDO benchtop multiparameter meter for advanced lab analysis and interfacing.

Record accurate and reliable pH, mV, ORP, dissolved oxygen and temperature measurements with the Thermo Scientific™ Orion Star™ A216 pH/Dissolved Oxygen Benchtop Multiparameter Meter. This meter is ideal for a wide range of applications, including advanced pH and dissolved oxygen analysis in the lab. Use the two channels to measure pH and dissolved oxygen simultaneously or view each channel separately. Use an RDO optical or polarographic DO probe for ultimate flexibility in sensors. Log up to 2000 data point sets with time/date stamp and easily transfer calibration and data logs via USB or RS232 to a printer or computer.

사양

AC 어댑터Universal 50-60 Hz, 100-240 VAC power adapter (Cat. No. 1010003)

출력USB, RS232

정확도(바로미터)±6mmHg

정확도(mV)±0.2 mV or ±0.05% of reading whichever is greater

정확도(pH)±0.002

정확도(폴라로그래픽 DO)±0.2mg/L or ±2% of reading, whichever is greater

정확도(RDO)±0.1mg/L up to 8mg/L, ±0.2mg/L from 8 to 20mg/L, ±10% of reading up to 50mg/L

알람 출력High/low limit alarm, calibration due alarm

백라이트 옵션Yes, selectable

대기압 보정400 to 850mmHg, automatic using built-in barometer or manual entry

배터리 수명800 hr.

배터리 종류4 AA (sold separately)

보정pH with calibration editing option, relative mV (RmV), ORP, dissolved oxygen and temperature

보정 모드Water-saturated air, air-saturated water, manual (Winkler titration), zero point

보정 지점1 point relative mV (RmV) mode, 1 point ORP mode

보정 지점(pH)1 to 5

인증/적합성CE, TUV 3-1, FCC Class A

데이터 관리 세부 정보Transfer single, range or all data points to printer or computer

데이터 포인트2000 with date and time stamp

설명Orion Star A216 pH/RDO/DO benchtop meter with stand

채널2

디스플레이 유형LCD Graphic, Backlit

IP 등급IP 54

Measurement ModespH, mV, Relative mV, ORP with Temperature, Dissolved Oxygen (% Saturation), Dissolved Oxygen (mg/L with Temperature)

Percent Saturation Range Polarographic DO0.0 to 600.0 % saturation

범위(mV)±2000.0 mV

범위(pH)-2.000 to 20.000

분해능(pH)0.1/0.01/0.001

온도 범위(미터법)-5.0°C to +105.0°C

포함Star A216 pH/RDO/DO meter, electrode stand, universal power adapter, literature CD, printed quick start guide, computer interface cable and meter test certificate

입력BNC (pH or ORP electrode), pin-tip (reference electrode), 8 pin MiniDIN (ATC temperature probe), 9 pin MiniDIN (RDO optical or polarographic DO sensor with built-in temperature), stirrer input (stirrer probe)

등전위 지점7.000pH

키패드Comprehensive with menu-specific function keys and dual purpose scroll/shortcut keys

언어English, Spanish, French, Italian, German and Chinese; Portuguese and Korean available with software update

로그 기능 유형Automatic data logging with Auto-Read and Timed measure modes; manual data logging with Continuous m

메모리Non-volatile memory preserves data log, calibration log and meter settings

방법10 per channel with password protection

모델Orion Star A216 pH/mV/RmV/ORP/RDO Optical/Dissolved Oxygen/Temperature Benchtop Meter

Percent Saturation Range (Polarographic DO)0.0 to 600.0 % saturation

Percent Saturation Relative Accuracy (RDO)±2 % saturation ≤ 200 % saturation, ±10 % saturation > 200 % saturation

Percent Saturation Resolution (Polarographic DO)0.1, 1 % saturation

백분율 포화도 범위(RDO)0.0 to 500.0 % saturation

Percent Saturation Relative Accuracy (Polarographic DO)±2 % saturation or ±2% of reading whichever is greater

백분율 포화 분해능(RDO)0.1, 1 % saturation

전원 공급 장치Universal AC adapter (included) or 4 AA batteries (sold separately)

압력 범위400 to 850mmHg

압력 분해능1mmHg

범위(ORP)±2000.0 mV

범위(폴라로그래픽 DO)0.00 to 90.00mg/L

범위(RDO)0.00 to 50.00mg/L

범위(상대 mV)±2000.0 mV

상대 습도 범위5 to 85 %, non-condensing

분해능(mV)0.1mV

분해능(폴라로그래픽 DO)0.01, 0.1mg/L

분해능(RDO)0.01, 0.1mg/L

염도 계수0.0 to 45.0 ppt, automatic correction using manual entry of sample salinity

안정성Selectable fast, medium, slow or Smart Stability setting; Selectable off or Automatic Smart averaging setting

온도 정확도±0.1°C

온도(영국식 단위) 작동41°F to 113°F (ambient)

작동 온도(미터법) 작동5°C to 45°C (ambient)

온도 프로브 보정1 point temperature offset calibration

온도 범위(영국식 단위)22.0°F to 221.0° F

온도 분해능0.1°C, 0.1°F

온도 선택Manual or automatic with ATC temperature probe

워런티3 Year Meter

치수(길이 x 폭 x 높이)24cm x 18cm x 11cm (9.5 in. x 7.1 in. x 4.3 in.)

중량(영국식 단위)2 lb.

중량(미터법)0.9 kg

Unit SizeEach
