Daihan Science DAIHAN Portable Gel Documentation System “WGD-20” , 1.45M Pixel CCD Camera, wit

상품 한눈에 보기

휴대용 젤 이미징 시스템으로 1.45M 픽셀 CCD 카메라와 USB 3.0 인터페이스를 탑재. 컴팩트한 다크룸 후드 포함으로 실험실 트랜스일루미네이터와 호환. MaXidoc™ 및 TotalLab™ 소프트웨어 지원으로 DNA/RNA 젤 분석에 최적. CE 인증 및 2년 보증 제공.

카탈로그번호: DH-Wxxxxxxxxxx (6개 옵션)
브랜드: Daihan Science
카테고리: Gel Documentation Analyzers
판매단위: ea

#Daihan Science

카탈로그

6개 옵션

회원가입 없이 바로 구매하세요

가입하지 않아도 비회원가로 구매하실 수 있습니다.

카탈로그 번호 · 상품 설명출고판매가담기

장비

Daihan Science DH-WGD00024-EA Gel Doc. System Portable, with WiseCaptureⅡ & TL100 S/W WGD-20S, 1/Ea ea DH.WGD00024판매 단위 ea ·

재고 확인 필요재고 확인 필요

5,067,500원VAT 포함 5,574,250원

Daihan Science DH-WGD00020-EA Gel Doc. System Portable, with WiseCaptureⅡ WGD-20, 1/Ea ea DH.WGD00020판매 단위 ea ·

재고 확인 필요재고 확인 필요

3,886,300원VAT 포함 4,274,930원

소모품

Daihan Science DH-WGD00200-EA (Acc.)Computer LapTop for WGD Gel Doc.System, 1/Ea ea DH.WGD00200판매 단위 ea ·

재고 확인 필요재고 확인 필요

1,906,300원VAT 포함 2,096,930원

Daihan Science DH-WUV00020-EA Transilluminator UV, Standard, 312nm WUV-L20, 230V, 1/Ea ea DH.WUV00020판매 단위 ea · 1~2일 내 출고

재고보유재고보유1~2일 내 출고

1,665,000원VAT 포함 1,831,500원

Daihan Science DH-WUV00120-EA Transilluminator UV, Compact, 312nm WUV-M20, 230V, 1/Ea ea DH.WUV00120판매 단위 ea ·

재고 확인 필요재고 확인 필요

1,623,800원VAT 포함 1,786,180원

Daihan Science DH-WUV00050-EA Transilluminator UV, Standard, 365+312nm WUV-L50, 230V, 1/Ea ea DH.WUV00050판매 단위 ea · 1~2일 내 출고

재고보유재고보유1~2일 내 출고

1,422,500원VAT 포함 1,564,750원

재고문의·견적요청 옵션은 실시간 상담으로 납기를 확인해 드립니다 · 연구비 카드 결제 가능

Daihan Science · Daihan Science DAIHAN Portable Gel Documentation System “WGD-20” , 1.45M Pixel CCD Camera, wit

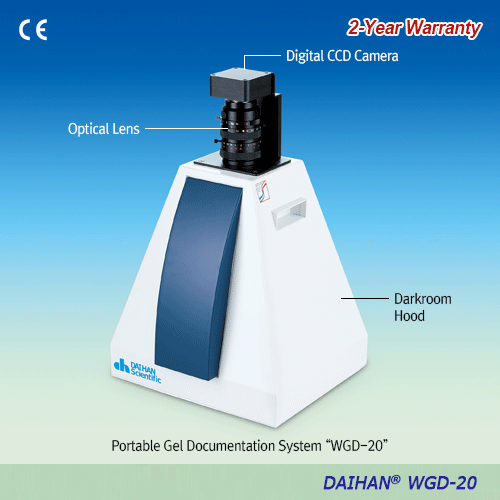

DAIHAN® Portable Gel Documentation System “WGD-20”

1.45M Pixel CCD Camera, with Certificate & Traceability
With Digital CCD Camera & Optical Lens, Portable Darkroom Hood, Capture Software, USB Interface
젤 이미지 분석 시스템, 고성능/최저가, 디지털 CCD 카메라(145만 화소) 장착

주요 특징

CE Certified
PL(Product Liability) Insurance
Certificate & Traceability : Serial Number, Certificate, Delivery-information, and Traceable Database System
The Most Cost-Effective System
High Precise and Large Caliber Optical Lens with Zoom, Focus and Iris Control
DNA/RNA Gel Imaging Capture and Analysis
Digital CCD Camera (Resolution 1.45 Million pixel) with Portable Darkroom
1360 × 1024, 10-bit CCD, Available for 8-bit Gray Level Image Capturing
Power Consumption : Supplied USB(USB 3.0)
Compact Portable Darkroom System compatible with existing transilluminators
USB 3.0 Interface for real-time image transfer to PC
Software : Easy and fast gel image capture
Optional TotalLab™ Software : Fully automatic image analysis with single button operation

2-Year Warranty
Portable Gel Documentation System “WGD-20”

Computer System Requirements

Intel Chipset, USB 2.0 Support Mainboard
Over Pentium 4 Processor
Over 256MB Main Memory
Over 60MB HDD Space for Installation and Running
Windows XP, Vista 7, 8, 10

Specifications & Ordering Information

Spec.	Model	“WGD-20”
CCD & Pixel Size	1/2” CCD, 4.65×4.65 μm
CCD Max. Resolution	1,360×1,024
Module Lens Mount & Optical Size	C mount, 7.6×6.2 mm
Connect to PC & Power	USB 3.0, Supplied USB
Zoom Iris & Focal Length	F1.0 - Close, 8~48mm
Lens Ambient Temp.	-10°C to +50°C
Overall Dimension & Weight	300×260×470 mm, 9 kg
Software Capability	Windows XP, Vista 7, 8, 10
Included Standard S/W	MaXidoc™ Gel Imaging Capture Software
Included DNA Analysis S/W	none	TotalLab™ CLIQS
Packing Size & Weight	400×350×510 mm, 18 kg
Cat. No.	DH.WGD0020	DH.WGD0024
Price, Each. ₩

※ Other Specifications available upon Customer’s Request
※ 운임 약 ₩ 9,000 별도

Optional Transilluminator & S/W

Cat. No.	Description	Ea. Price, ₩
DH.WUV002020	Transilluminator, WUV-L20, 20×20cm Filter 312nm, 15W UV Lamp ×6ea
DH.WUV005050	Transilluminator, WUV-L50, 20×20cm Filter 365nm+312nm, 15W UV Lamp ×6ea
DH.WUV001020	Transilluminator, WUV-M20, 20×20cm Filter 312nm, 8W UV Lamp ×6ea
DH.WGD00100	DNA/Protein Analysis S/W, TotalLab™ CLIQS
DH.WGD0121	CLIQS 1D Pro
DH.WGD00200	Laptop Computer, WGD-Laptop, for WGD Gel Doc.System

MaXidoc™ Imaging Capture Software

Included software for real-time image viewing/capture, manipulation, and saving.

DNA Analysis Software

TotalLab™ CLIQS

Automatic and manual lane detection, background subtraction
Fully automatic band detection
Molecular size / pI calibration
Quantity calibration, normalization

CLIQS 1D Pro (Additional Function)

Match band data patterns across large groups of lanes
Algorithms for dendrogram generation: Neighbor Joining, UPGMA, Complete Linkage, Single Linkage, Ward Library
Queries function
