Thermo Scientific™

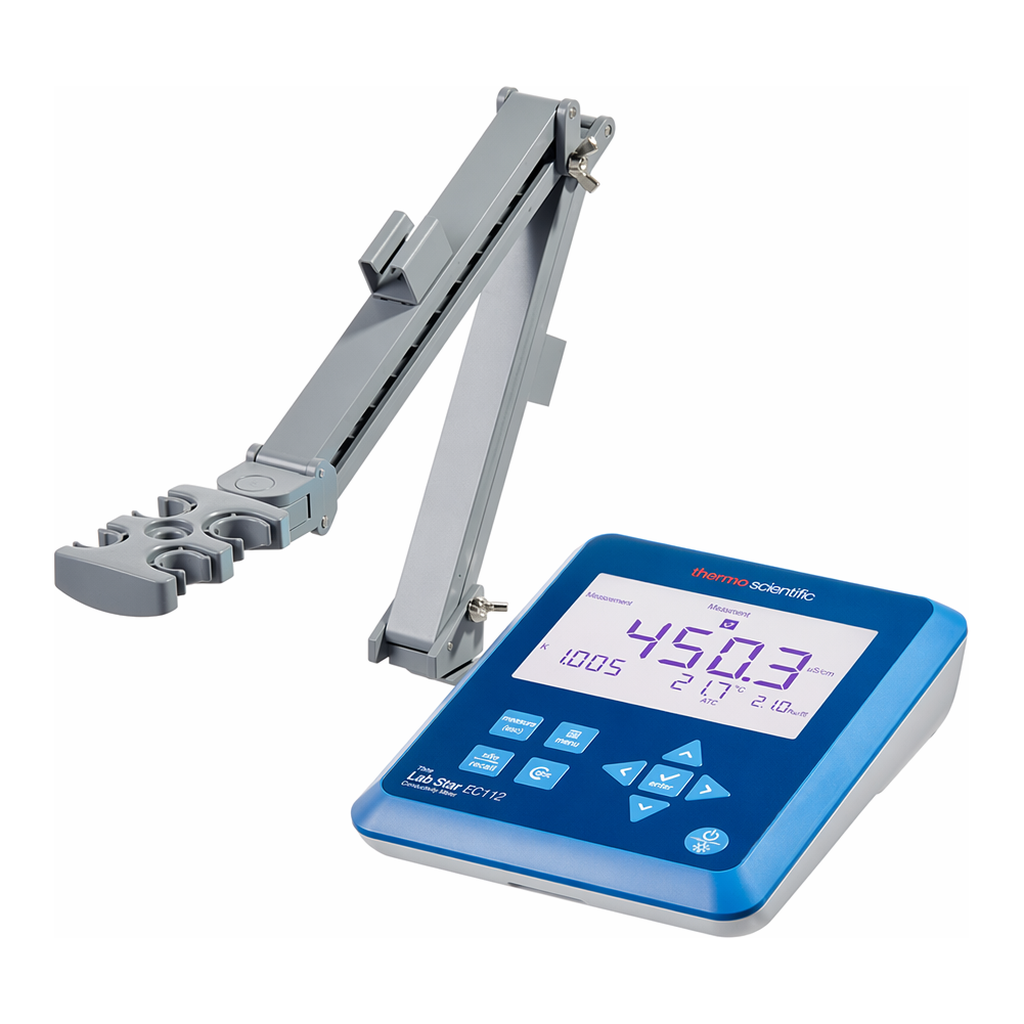

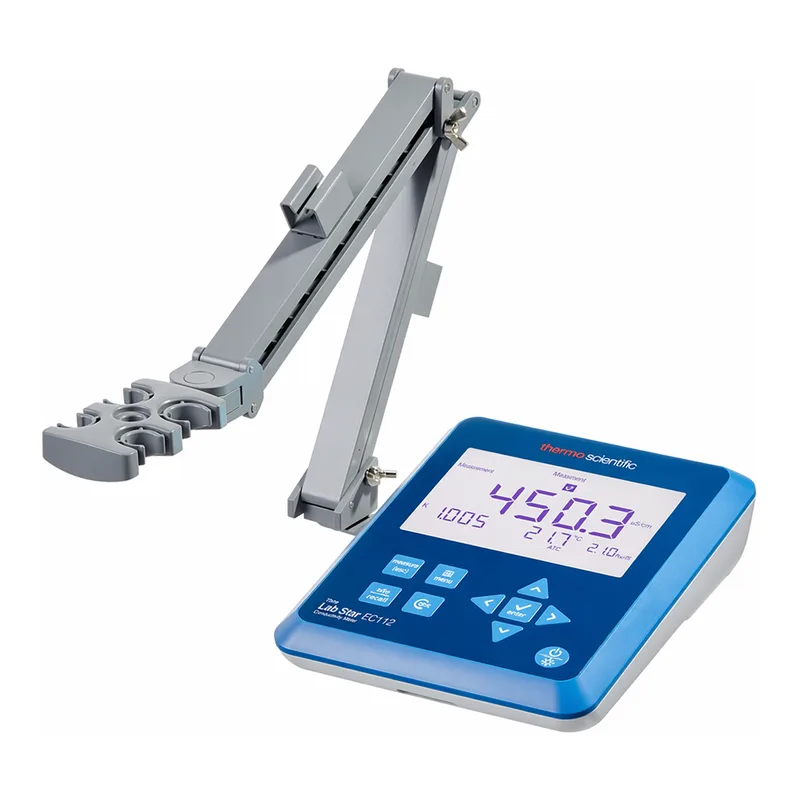

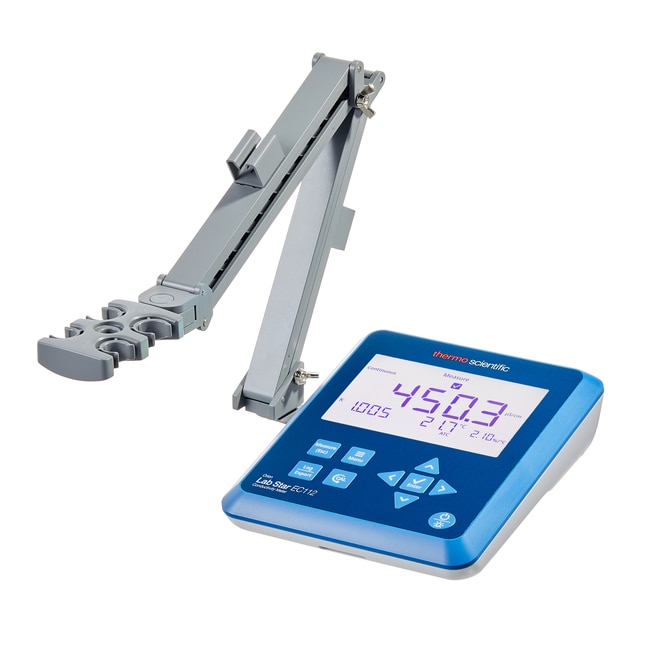

Orion Lab Star EC112 Conductivity Bench Meters

Orion Lab Star EC112 conductivity bench meters measure conductivity, salinity or TDS with temperature, feature a large backlit display for easy viewability, and offer small footprint to save bench space. This conductivity meter is ideal for simplified, budget-friendly lab testing and data recording.

Measure conductivity, salinity or total dissolved solids with temperature using the Orion Lab Star EC112 conductivity bench meter. Featuring a large, backlit display for easy viewability and small footprint to save space, this meter is ideal for simplified, budget-friendly lab testing. Use the onscreen stabilizing and ready indicators to help identify when conductivity meter, salinity meter and TDS meter readings are complete. View active calibration logs with date and time, record key measurements using the 500-point data log with date and time, and output all logs to a printer or computer.

사양

정확도(전도도)±0.5 % of the reading ± 1 LSD

설명Orion Lab Star EC112 conductivity/salinity/TDS bench meter with stand

출력Computer or printer (STARA-106)

포함Meter with electrode stand, PC cable, universal power adapter

용도(애플리케이션)Meter and Stand Option, Select and Purchase The Electrode Separately

Measurement ModesConductivity with Temperature, Salinity with Temperature, TDS with Temperature

함께 사용가능한 프로브2-cell and 4-cell conductivity electrodes

세포 상수0.100 to 10.00 cm-1

보정Conductivity, salinity, TDS and temperature

보정 지점(전도도)1-5 points conductivity

보정 지점1 point salinity, 1-5 points TDS, 1 point temperature

범위(전도도)0.00 μS to 500.0 mS

분해능(전도도)0.01, 0.1, 1 μS; 0.01, 0.1 mS

온도 보상Linear (0 to 10 %/°C) or off

온도 계수0 to 10 %/°C

온도(미터법) 참조15.0, 20.0, 25.0 or 30.0°C

범위(염도)0.00 to 80.0 ppt; 0.00 to 42.0 PSU

분해능(염도)0.01, 0.1 ppt; 0.01, 0.1 PSU

정확도(염도)±0.5 % of the reading ± 1 LSD

염도 측정 모드Natural Seawater (ppt) or Practical Salinity (PSU)

분해능(TDS)0.01, 0.1, 1 ppm; 0.01, 0.1 ppt

정확도(TDS)±0.5 % of the reading ± 1 LSD

TDS 계수 범위0.40 to 1.00

온도 범위(미터법)-5.0°C to +105.0°C

온도 범위(영국식 단위)23.0°F to 221.0°F

분해능(온도)0.1°C, 0.1°F

정확도(온도)±0.3°C, ±0.5°F

온도 선택Manual or automatic with ATC temperature probe

온도 프로브 보정1 point temperature offset calibration

디스플레이 유형5 in. backlit LCD

백라이트 옵션Yes

메모리Non-volatile

데이터 포인트500 data sets with time and date

로그 기능 유형Automatic with Auto-Read and Timed read modes, manual with Continuous read mode

데이터 관리 세부 정보Continuous, Auto-Read and Timed read modes

알람 출력Calibration reminder alarm

입력8-pin MiniDIN for conductivity with built-in ATC

인증/적합성CE, TUV 3-1, FCC Class A

IP 등급IP54

AC 어댑터Universal 100-240 V 50/60 Hz power supply with twist-and-lock meter connection and interchangeable wall plugs for US/Japan, Euro, UK/Singapore, Australia/New Zealand and China outlets

치수(길이 x 폭 x 높이)187.2 x 155.2 x 61.7 mm, 7.37 x 6.11 x 2.43 in.

중량(미터법)700 grams

중량(영국식 단위)1.54 lb.

워런티3 year meter warranty

Unit SizeEach
