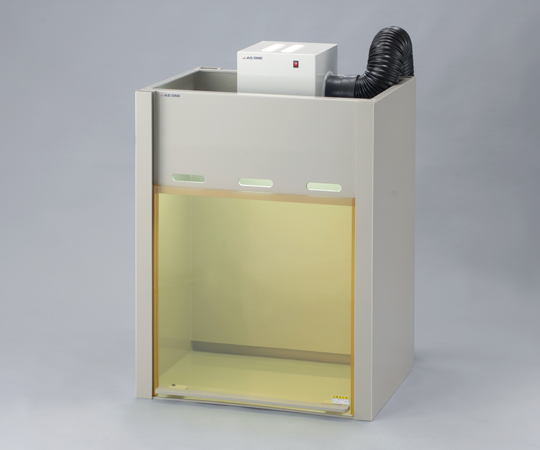

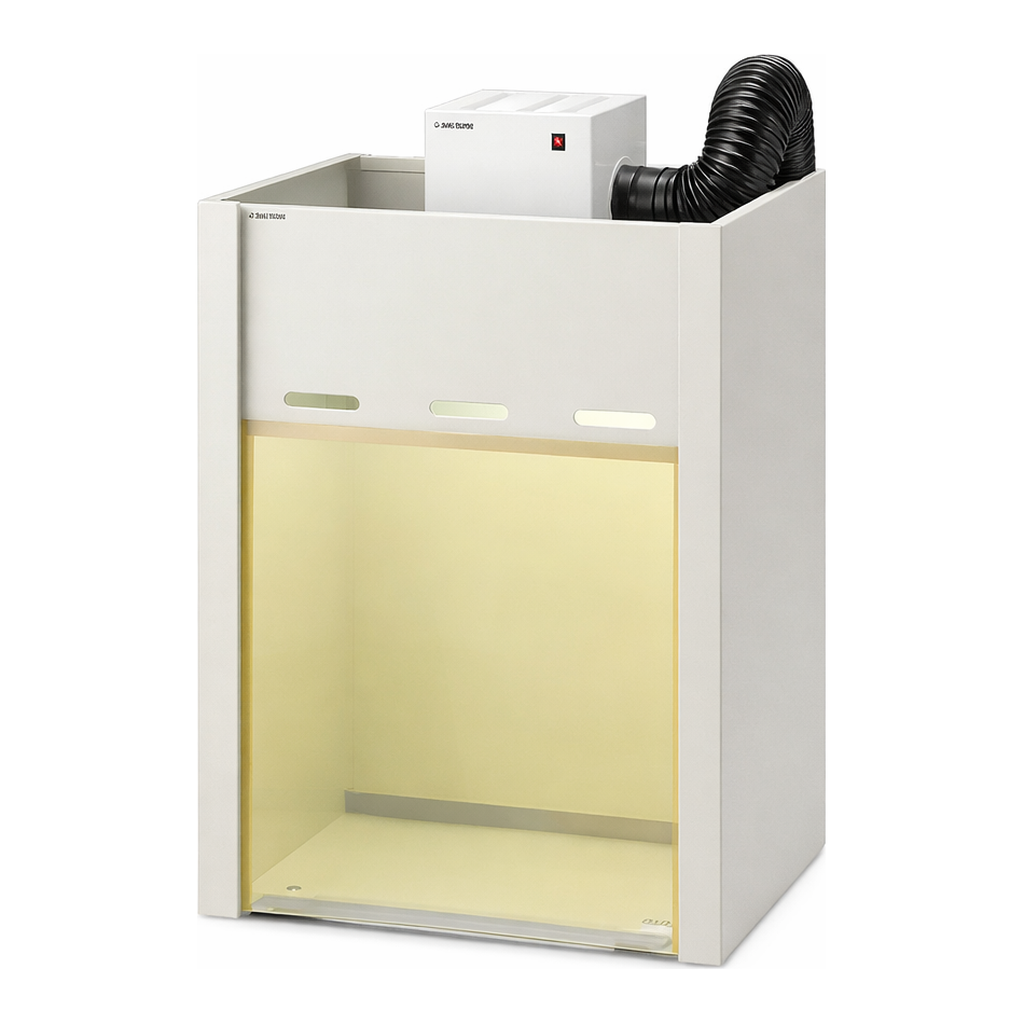

AS ONE PP Desk Top Draft Set Ppd700Set　PPD-700

AS ONE PP Desk Top Draft Set Ppd700Set　PPD-700

Spec

• external dimension: 700 x 530 x 900 (990 including fan units) mm
• Opening: 600 x 550 mm
• Material: Main body, exhaust pipe / PP (polypropylene), door / SUNBAREX
• Face speed: 0.5 m/s (Opening of 1/3 sash)
• Interior lighting: fluorescent lamps (15 W) x 1 piece
• Exhaust fan ability: 3.4 m3/min (50Hz), 3.9 m3/min (60Hz)
• Maximum static pressure: 0.36 kPa (50Hz), 0.5 kPa (60Hz)
• power supply: AC100V 50 / 60Hz
• The length of power cord: about 1.5 m (With 2P plug intermediate switch)
• Weight: 29.2 kg (Include fan units)
• Model Number: PPD -700 sets
• Set Contents: One draft body, one exhaust fan unit, a duct hose for connecting (φ 100 x 2.5 m), and 1 piece
• * Please contact your facility group for an application for local exhaust equipment
