Thermo Scientific™

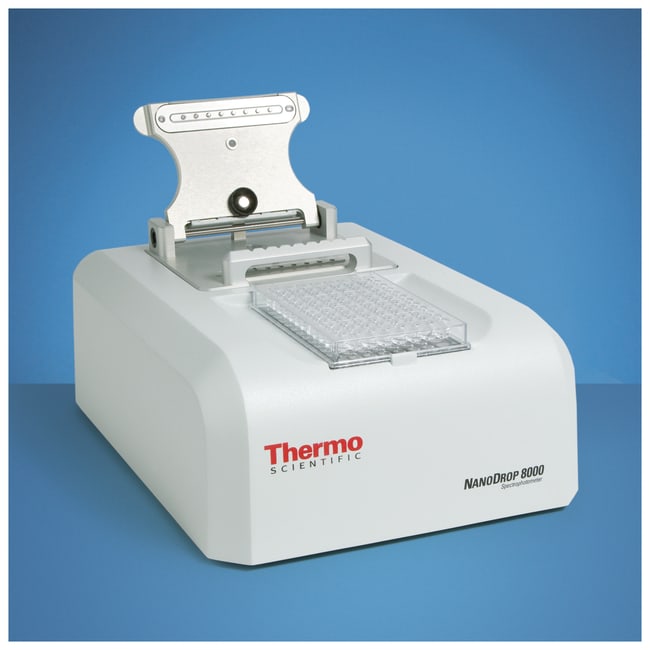

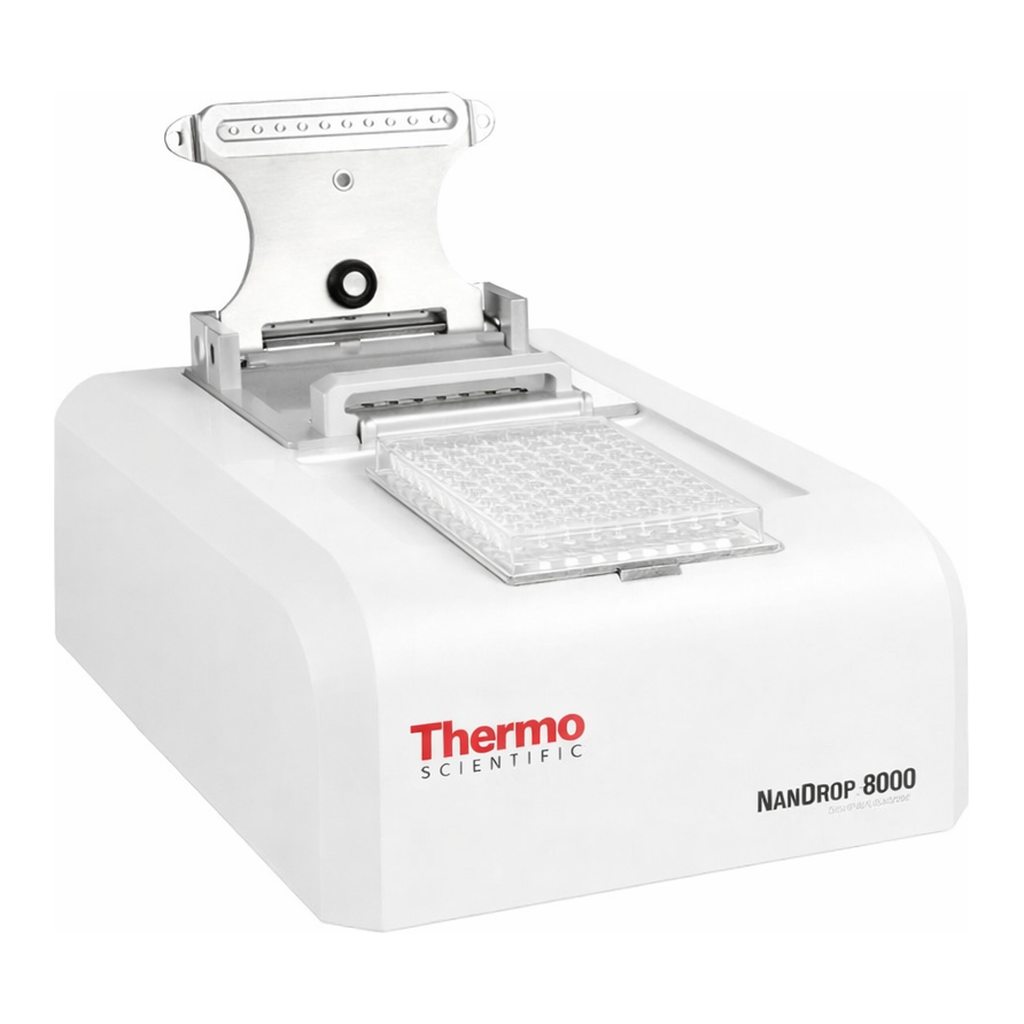

NanoDrop™ 8000 Spectrophotometer

Thermo Scientific™ NanoDrop 8000 is a muti-sample micro-volume UV-Vis spectrophotometer.

New sales of this model have been discontinued. Please see the newest model: the NanoDrop Eight Microvolume UV-Vis Spectrophotometer.

사양

흡수 정확도3% (at 0.74 Abs at 350 nm)

흡수 범위0 to 75 A

인증/적합성UL/CSA and CE

호환성Professional versions of Microsoft™ Windows™ 7 (32 bit and 64 bit), Windows Vista (32 bit), and Windows XP (32 bit).

연결USB

설명NanoDrop 8000 Microvolume UV-Vis spectrophotometer

검출 한계2.5 ng/μL (dsDNA), 0.15 mg/mL (BSA)

검출 범위2.5 to 3,700 ng/μLL (dsDNA), 0.15 - 100 mg/mL (BSA)

검출기 유형2048-element Linear Silicon CCD Array

광원Xenon Flash

유형Microvolume UV-Vis Spectrophotometer

전압12 VDC

Wavelength Range220 to 750 nm

풋프린트24 x 32 cm

용도(애플리케이션)Nucleic acid, protein, cell culture and custom methods

포함USB cable and operating software

측정 시간<20 sec.

모델ND-8000

샘플 수Up to 8

경로 길이0.2 and 1.0 mm

전력 소비12 V DC

샘플 부피(미터법)1 μL

스펙트럼 분해능≤3 nm (FWHM at Hg 546.1 nm)

시스템 요구 사항Microsoft Windows 7 Professional (32-bit and 64-bit), Windows 8 (32- and 64-bit), and Windows 10 Pro (64-bit)

워런티1 year parts and labor

파장 정확도±1 nm

중량(미터법)3.4 kg

Unit SizeEach
