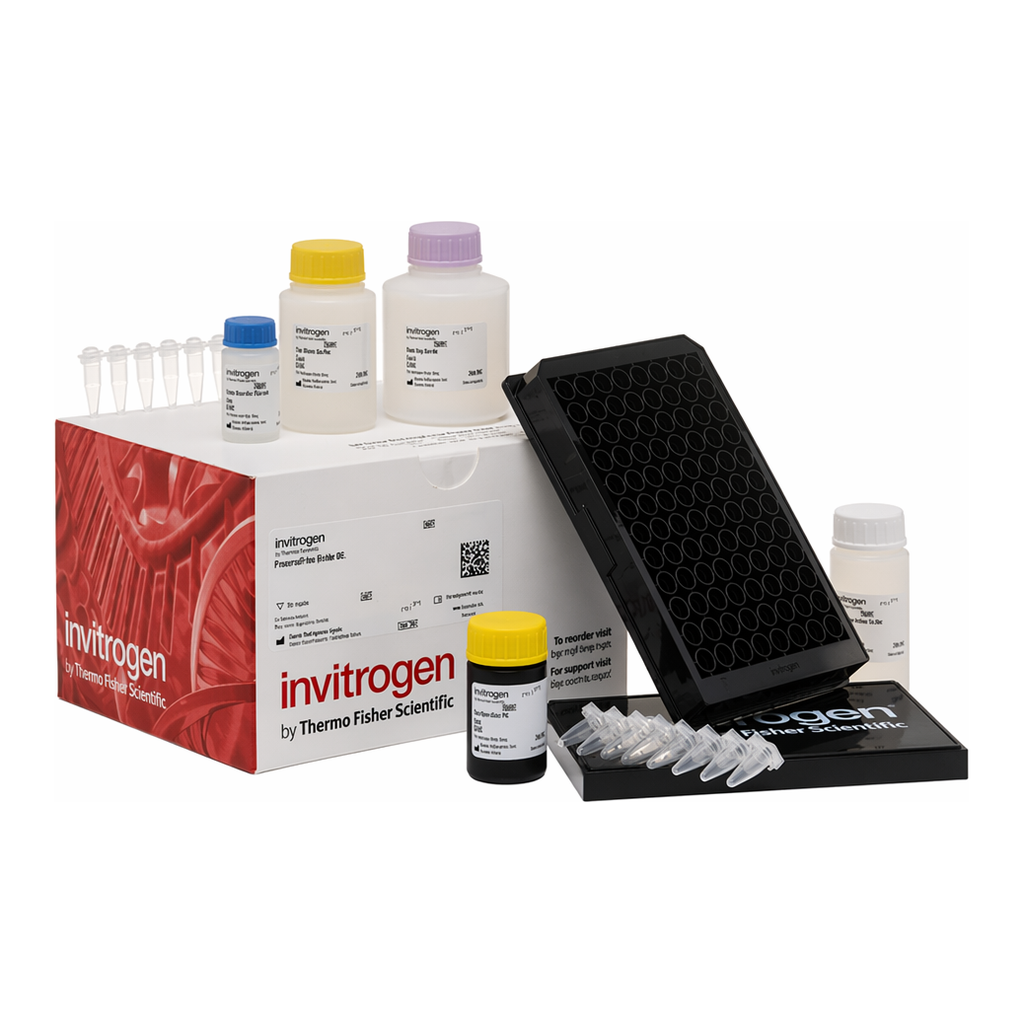

Thermo Fisher Scientific ProcartaPlex Human Kidney Toxicity Panel 2, 9plex

Invitrogen™ ProcartaPlex™ Human Kidney Toxicity Panel 2, 9plex

The ProcartaPlex Human Kidney Toxicity Panel 2, 9plex enables nephrotoxicity research by analyzing 9 protein targets in a single well using Luminex xMAP technology.
Simultaneous detection of these targets provides comprehensive insights into kidney function and nephrotoxicity during drug development studies.

Target List (Bead Region)

• Alpha-1-microglobulin [77]
• Beta-2-microglobulin (B2M) [21]
• Cystatin C [34]
• EGF [56]
• NGAL [14]
• Osteopontin (OPN) [67]
• TFF3 (Trefoil Factor 3) [30]
• TIMP-1 [26]
• Uromodulin [39]

Product Features

• Ready-to-use format with 1X capture and detection reagents
• Reduced pipetting and setup time
• Not combinable with simplexes or other panels
• Complements ProcartaPlex Human Kidney Toxicity Panel 1, 11plex (Cat. No. EPX110-15855-901)
• Extensively tested for analyte combinability, interference, and cross-reactivity
• Supplied with all reagents required for assay performance
• Available across six species: human, mouse, rat, nonhuman primate, porcine, and canine

About ProcartaPlex Assays for the Luminex Platform

ProcartaPlex immunoassays are based on the sandwich ELISA principle, using two specific antibodies binding different epitopes of one protein for simultaneous quantitation via a Luminex instrument.
These multiplex assays require as little as 25 μL of plasma or serum, or 50 μL of cell culture supernatant, and yield analyzed results within four hours.

Key Advantages

• Reproducible, reliable results — validated for combinability and cross-reactivity
• More results per sample — measure multiple targets in a single 25–50 μL sample
• Established Luminex technology — widely referenced multiplexing platform

Technology Overview

ProcartaPlex assays utilize Luminex xMAP (multianalyte profiling) for simultaneous detection and quantitation of up to 65 protein targets in a single sample.
Each bead is internally dyed with red and infrared fluorophores to create unique spectral signatures, identified by Luminex systems (e.g., Luminex 200, FLEXMAP 3D, MAGPIX).
Matched antibody pairs detect the target proteins using biotinylated antibodies and streptavidin–R-phycoerythrin (RPE).
Unlike traditional ELISA, capture antibodies are conjugated to beads, allowing free-floating reactions for enhanced multiplexing efficiency.

Specifications
