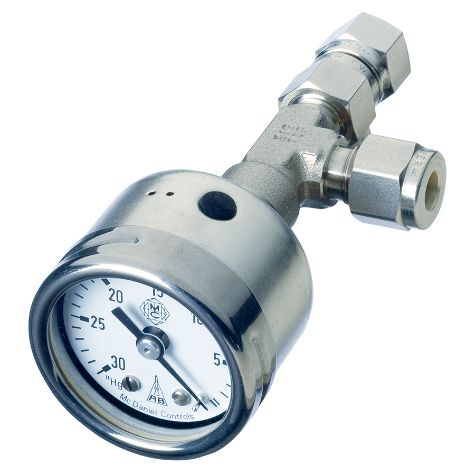

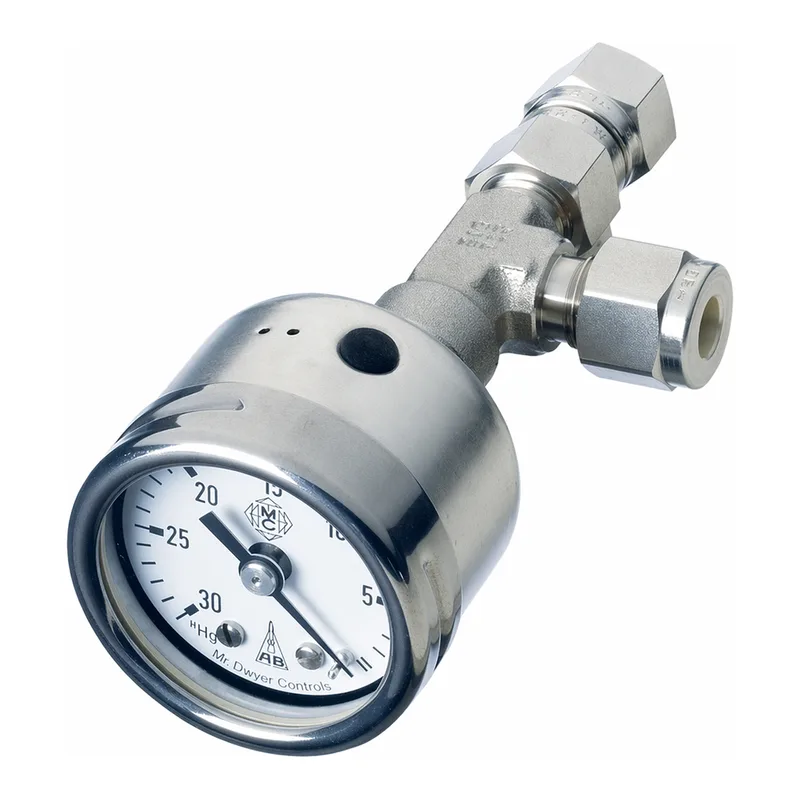

Restek Soil Gas Sampling Kit, 20 minute, Tee fitting w/0.0065in orifice
Restek의 Soil Gas Sampling Kit은 토양 가스 시료를 효율적으로 채취하기 위한 20분 샘플링 키트입니다. 스테인리스 티 피팅과 0.0065인치 오리피스를 포함하며, 누출을 최소화하고 연결이 간편합니다. 2 µm 프릿 필터와 진공 게이지 내장으로 정확한 시료 채취가 가능합니다.
- 카탈로그번호
- 22930
- 브랜드
- Restek
- 판매단위
- pk
카탈로그
1개 옵션 · 카탈로그 번호를 클릭하면 복사됩니다Restek · Restek Soil Gas Sampling Kit, 20 minute, Tee fitting w/0.0065in orifice
Overview
Features & Benefits
Assembled sampler includes:
- Stainless-steel tee with orifice
- Variety of orifice sizes for sampling from 4 minutes to 10 hours
- 1½" vacuum gauge (–30 Hg to 0 Hg)
- 2 µm frit filter for insertion into 1/4" compression sample inlet
Description
This unique grab sampler is specifically designed for soil gas sampling by allowing the connection of tubing coming from the soil gas sample port.
The innovative design minimizes connections and leaks and houses a critical orifice in the tee fitting. It also incorporates a vacuum gauge and 2 µm frit filter.
The 1/4" compression inlet and outlet allow easy connection to the canister valve and to the tubing from the sample port.
Several orifice sizes provide sampling times from 4 minutes to 10 hours on a 6 L canister.
Individual replacement parts are available, providing a cost-effective alternative to replacing the entire sampler.
Sampling Time & Orifice Size
| Canister Volume/Sampling Time | Flow (mL/min) | Orifice Size (in) | Siltek Treated cat.# | Stainless Steel cat.# |
|---|---|---|---|---|
| 1 L / 4 min | 210 | 0.0065 | 22935 | 22930 |
| 1 L / 6 min | 150 | 0.0055 | 22936 | 22931 |
| 1 L / 10 min | 80 | 0.0040 | 22937 | 22932 |
| 1 L / 30 min | 30 | 0.0025 | 26337 | 26336 |
| 1 L / 45 min | 19 | 0.0020 | 22938 | 22933 |
| 1 L / 2 hour | 6 | 0.0014 | 22939 | 22934 |
| 6 L / 20 min | 210 | 0.0065 | 22935 | 22930 |
| 6 L / 30 min | 150 | 0.0055 | 22936 | 22931 |
| 6 L / 1 hour | 80 | 0.0040 | 22937 | 22932 |
| 6 L / 3 hour | 30 | 0.0025 | 26337 | 26336 |
| 6 L / 4 hour | 19 | 0.0020 | 22938 | 22933 |
| 6 L / 10 hour | 6 | 0.0014 | 22939 | 22934 |
Specifications
| 항목 | 내용 |
|---|---|
| Catalog No. | 22930 |
| Product Name | Passive Air Soil Gas Sampling Kit: 20-Minute Sampling Kit, Tee Fitting w/0.0065" Orifice, Stainless Steel |
| Manufacturer | Restek |
