Daihan Science 380℃ Standard Analog & Digital Hotplate “HP-A” & “HP-D”
상품 한눈에 보기
380°C까지 가열 가능한 세라믹 코팅 핫플레이트 아날로그 및 디지털 모델 선택 가능 우수한 온도 균일성과 정밀 제어 기능 제공 CE 인증 및 2년 품질 보증 포함 실험실 시료 건조 및 일반 가열 작업에 적합
브랜드: Daihan Science
✨AI 추천 연관 상품
AI가 분석한 이 상품과 연관된 추천 상품들을 확인해보세요
연관 상품을 찾고 있습니다...
Daihan Science 380℃ Standard Analog & Digital Hotplate “HP-A” & “HP-D”
세라믹 코팅 가열판, 고온 균일성, CE 인증, 보증서 및 추적성 제공
180×180 Plate Analog ~380°C
- Ceramic Coated Plate
- PWM Control System
- 2-Year Warranty

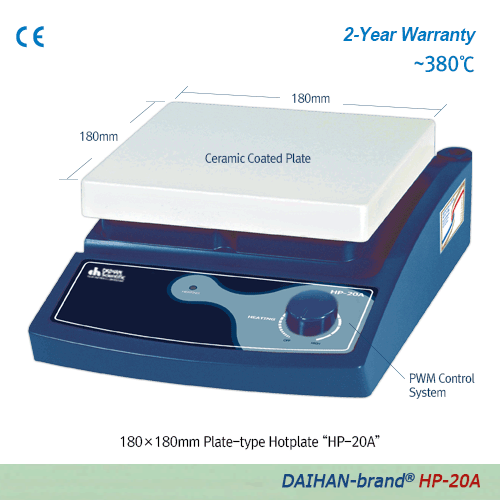

- (I-A) Analog “HP-20A”, 180×180mm Plate-type)*
180×180 Plate Digital Package Set ~380°C
- Ceramic Coated Plate
- Patented Jog-Shuttle Control System
- 2-Year Warranty
- (II-A) Digital “HP-20D” Package-set, 180×180mm Plate-type)*
구성품:
- Holder + Clamp + Clip (CL220)
- Temp. Probe (SS500)
- Rod (RD200)
- Hotplate (HP-20D)
260×260mm Plate
- Analog
- Digital
- 2-Year Warranty
- (I-B) Analog “HP-30A”, 260×260mm Plate*
- (II-B) Digital “HP-30D”, 260×260mm Plate)*
주요 특징
- CE Certified
- PL(Product Liability) Insurance
- Certificate & Traceability: Serial Number, Certificate, Delivery Information, and Traceable Database System
- Excellent for Sample Drying and General Lab Heating Applications
- Superior Temperature Uniformity: Less than 10% on the Plate at Ambient Temperature
I. Analog Control Hotplate “HPA”
- Superior linearity for temperature control by specially designed PWM control circuitry
II. Digital Control Hotplate “HPD”
- Patented Jog-Shuttle Control System
- Digital feedback control by high-performance microprocessor
- LCD Display with Back-Light (0.1°C Display, 0.5°C Control)
- Temperature Accuracy: ±0.3°C at Set Temp
- Safety Circuit: Over Temp Protection
- Timer: 59hr 59min (Continuous ON mode)
- Error Status & Timer-End Alarm
- Locking Mode for Experimental Safety
- User’s Self-Compensation (±20.0°C difference control)
III. Digital Control Hotplate Package-set
Ⅲ-A. “HP-20D” Set:
- Hotplate “HP-20D”
- PT100 External Probe “SS500”
- Stainless-steel Support Rod “RD200” (Ø12×L450mm)
- Holder+Clamp+Clip “CL220”
Ⅲ-B. “HP-30D” Set:
- Hotplate “HP-30D”
- PT100 External Probe “SS500”
- Stainless-steel Support Rod “RD100” (Ø12×L390mm)
- Holder+Clamp+Clip “CL220”
Specifications & Ordering Information
| Spec. | Model | 180×180mm Plate (I-A) Analog “HP-20A” / (II-A) Digital “HP-20D” | 260×260mm Plate (I-B) Analog “HP-30A” / (II-B) Digital “HP-30D” |
|---|---|---|---|
| Plate Size (mm) | 180×180 | 260×260 | |
| Material | Body | Powder Coated Aluminum | Powder Coated Steel |
| Plate | Ceramic Coated Aluminum (Chemical / Acid Resistance, Easy to Clean) | ||
| Temp. Range & Uniformity | Max. 380°C, High Uniformity (≤10%) | ||
| Heating Power / Consumption | 600 W | 1.2 kW | |
| Permissible Temp. & RH % | R/T ±5°C, 85% RH | ||
| Dimension & Weight | 206×307×h99mm, 2.8kg | 286×387×h99mm, 3.3kg | |
| Packing Size & Gross Weight | 400×280×h200mm, 5kg | 430×320×h200mm, 5kg | |
| Electrical Requirements | 1 Phase, AC 120V 60Hz or AC 230V 50/60Hz |
I. Analog Unit Only
| (I-A) “HP-20A” | (I-B) “HP-30A” | |
|---|---|---|
| Cat. No. 230V | DH.WHP03120 | DH.WHP03121 |
| Cat. No. 120V | DH.WHP02120 | DH.WHP02121 |
II. Digital Unit Only
| (II-A) “HP-20D” | (II-B) “HP-30D” | |
|---|---|---|
| Cat. No. 230V | DH.WHP03200 | DH.WHP03202 |
| Cat. No. 120V | DH.WHP02200 | DH.WHP02202 |
III. Digital Package-set
| (III-A) “HP-20D” Set | (III-B) “HP-30D” Set | |
|---|---|---|
| Cat. No. 230V | DH.WHP03201 | DH.WHP03203 |
| Cat. No. 120V | DH.WHP02201 | DH.WHP02203 |
Optional Accessories
| Cat. No. | Description |
|---|---|
| DH.WHP503060 | Temp. Probe “SS500”, PT100, Ø4×L250mm |
| DH.WHP503061 | Teflon Coated Temp. Probe “SS510”, Ø4×L250mm |
| DH.WHP503011 | Stand Rod “RD100”, Ø12×L390 (for HP-30A/30D) |
| DH.WHP503036 | Stand Rod “RD200”, Ø12×L450 (for HP-20A/20D) |
| DH.WHP503012 | Holder / Clamp / Clip “CL220” for Temp. Probe |
기타 사항:
Other specifications are available upon customer’s request.
