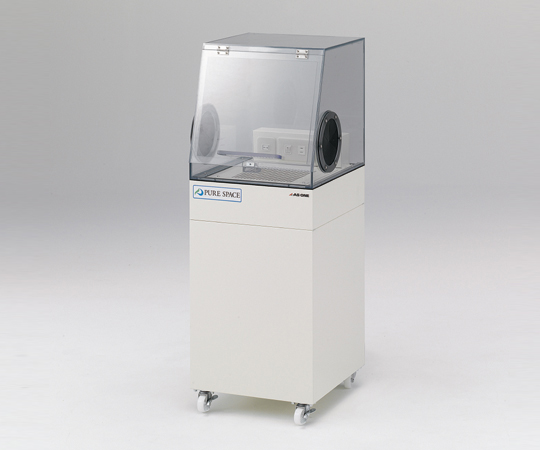

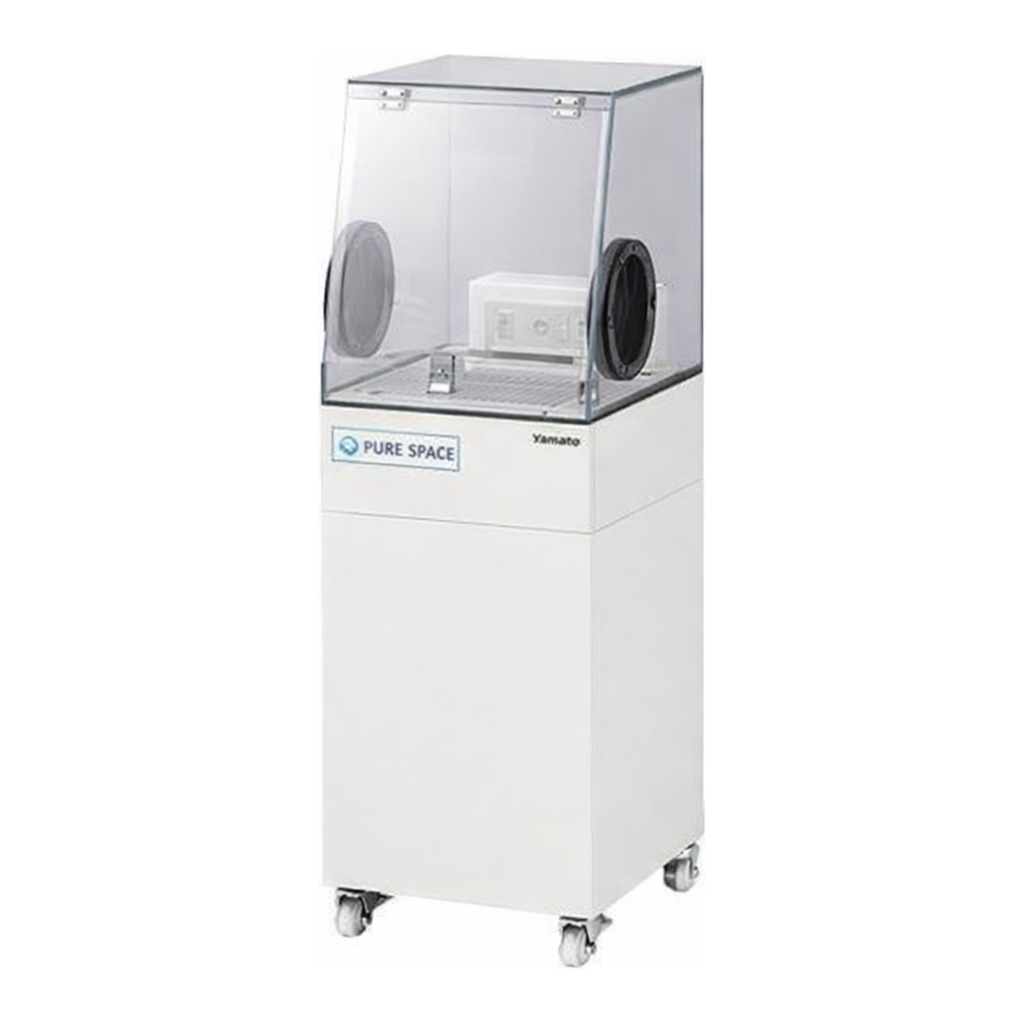

AS ONE Dust Collection Type Anti-Static Gun Blow Device　SJG-WB

AS ONE Dust Collection Type Anti-Static Gun Blow Device　SJG-WB

Spec

• Model number: SJG-WB
• Dust collecting box specification
• Size (mm): 400 x 440 x 1100
• Material: Body/steel (Melamine bake coating), Work box/transparent antistatic PVC (vinyl chloride resin), Slotted opening/neoprene rubber (φ140mm)
• Work box dimensions: 400 x 440 x 400mm (front door opening dimensions/400 x 304mm with magnet catch), Effective work plane/350 x 330mm
• Work plane height: 700mm
• Dust collecting unit size: 440 x 440 x 770mm
• Suction air volume: 1.5m3/min
• Dustproof performance: 10μm or more
• Compressed air inlet: Rc1/4 socket (rear body)
• Compressed air outlet: Rc1/4 socket
• Recommended air pressure: 0.5MPa
• Service outlet: 2P (with door) x with 1 port
• Caster: φ50mm (made of nylon, with stopper)
• Power supply: AC100V50/60Hz code length 3m (3P plug)
• Power consumption: 32W (except for discharging air gun)
• Grounding terminal: kL screw (operation box front), Banana type chip (dust collecting unit back)
• Weight: 27kg
• Accessories: Elbow fittings, ball valve fittings x 1 piece each
• *Air gun other than the above are also available.
• *Depending on your situation, Install the compression air adjustment unit.
• *Correspondence of the exhaust duct specification (φ100mm etc.) is available. Please contact us.
