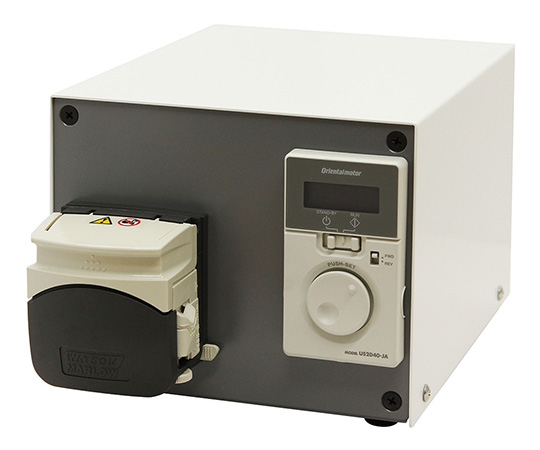

AS ONE Tubing Pump 313/US 200 Type (1 ch)

AS ONE Tubing Pump 313/US 200 Type (1 ch)

Spec

• standards : 313/US 200 Type (1 ch)
• flow rate (mL/min) * : 50Hz/0.4 to 1099 , 60Hz/0.4 to 1259
• *Value at pressure relief/lifting height 0, city water, R.T.. Maximum value: MAX rotation speed/inner diameter Φ 8.0, mm Tube Used, Minimum value: MIN rotation speed/inner diameter Φ 0.5, mm Tube Used
• rotation speed : 50Hz/12 to 186 rpm , 60Hz/12 to 213 rpm
• Number of Mounting pumps Heads: 2 pieces (Standard pumps Head + Extended pumps Head)
• *Inquire if 3 pieces or higher is installed.
• Discharge Pressure (Standard): Silicon Tube/Maximum 0.15 MPa, Merplane Tube/Maximum 0.2 MPa * Depending on Tube material and Size
• Usable tube: Silicon, Merprene, Bioprene, neoprene rubber, Tygon, etc. * Please use a tube with a wall thickness of 1.6 mm/inner diameter Φ 0.5 to 8.0 mm.
• Usable Liquid Viscosity: 200 cP
• Pump priming: Not required
• Forward/Reverse Operation Switching: Possible
• power supply: AC100V 50/60 Hz
• power cord length : 2 m (2P Plug)
