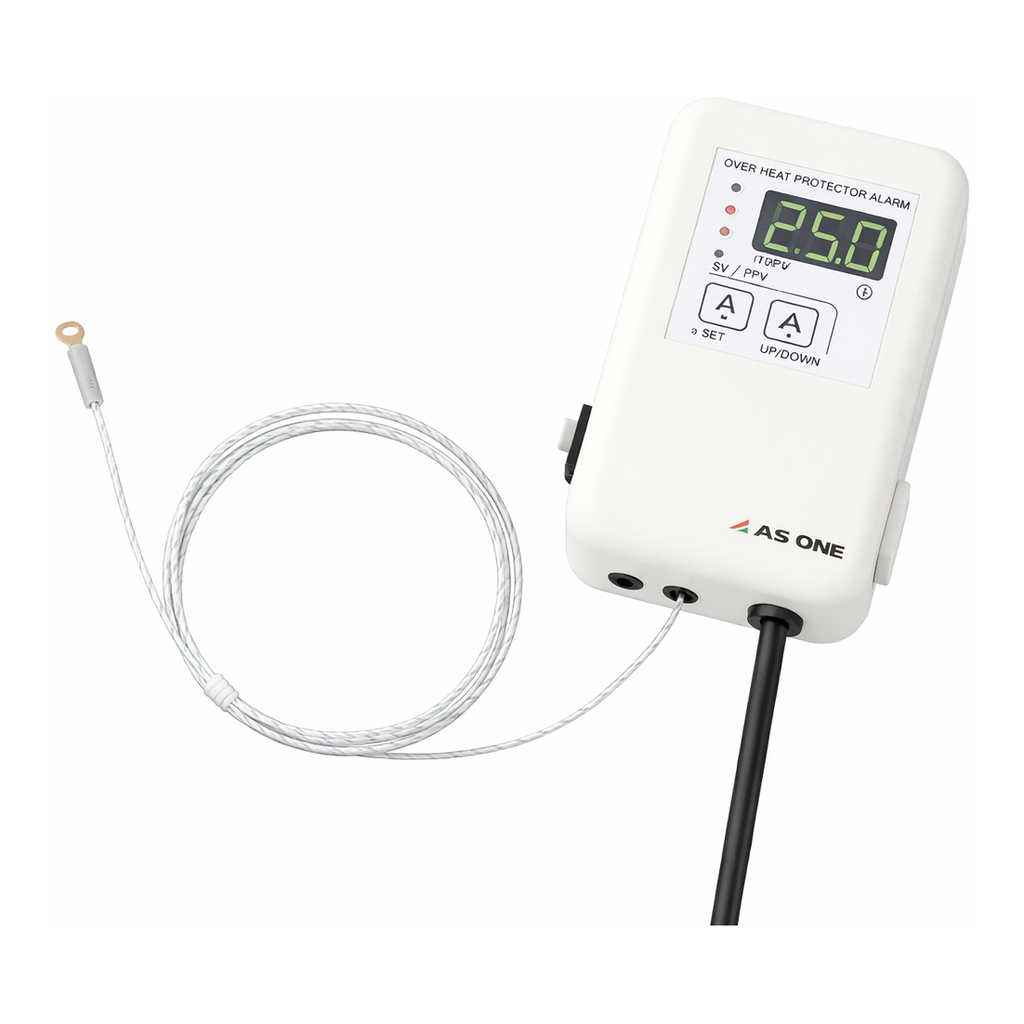

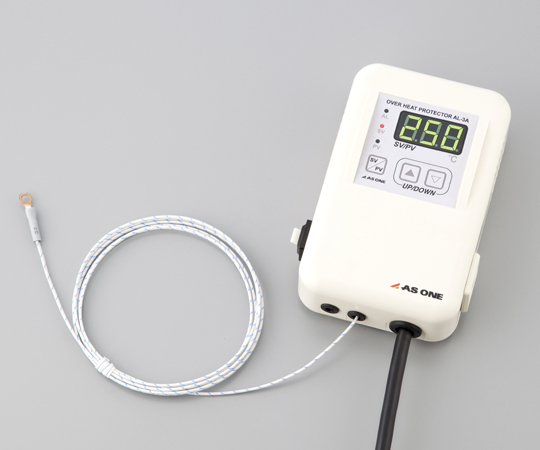

AS ONE Overtemperature Control Device, Alarm Generator　AL-3A

AS ONE Overtemperature Control Device, Alarm Generator　AL-3A

Spec

• Model number: AL-3A
• Settings range: 0 - 999℃ (setting range at the factory is adjusted 0 - 200℃, because heat resistance temperature of included sensor is 200℃. But setting range can be changed for your sensor specification)
• Minimum display unit: 1℃
• Display precision: ±0.5%rdg ±1dgt or ±3℃ (not including sensor error)
• Operation contents: Lamp lighting, internal relay ON or OFF (switchable)
• Temperature sensor: K thermocouple
• Output system: Voltage output by relay contact
• Output rating: 100VAC 50/60Hz MAX12A (resistance load)
• Safety mechanism 15A capacity circuit breaker, burnout circuit at sensor disconnected
• Size: 95 x 150 x 47mm (not including projections)
• Power cord length: 2.0m (3P plug)
• Accessories: Round terminal sensor (K thermocouple)
