Merck Norell Sample Vault Series NMR tubes

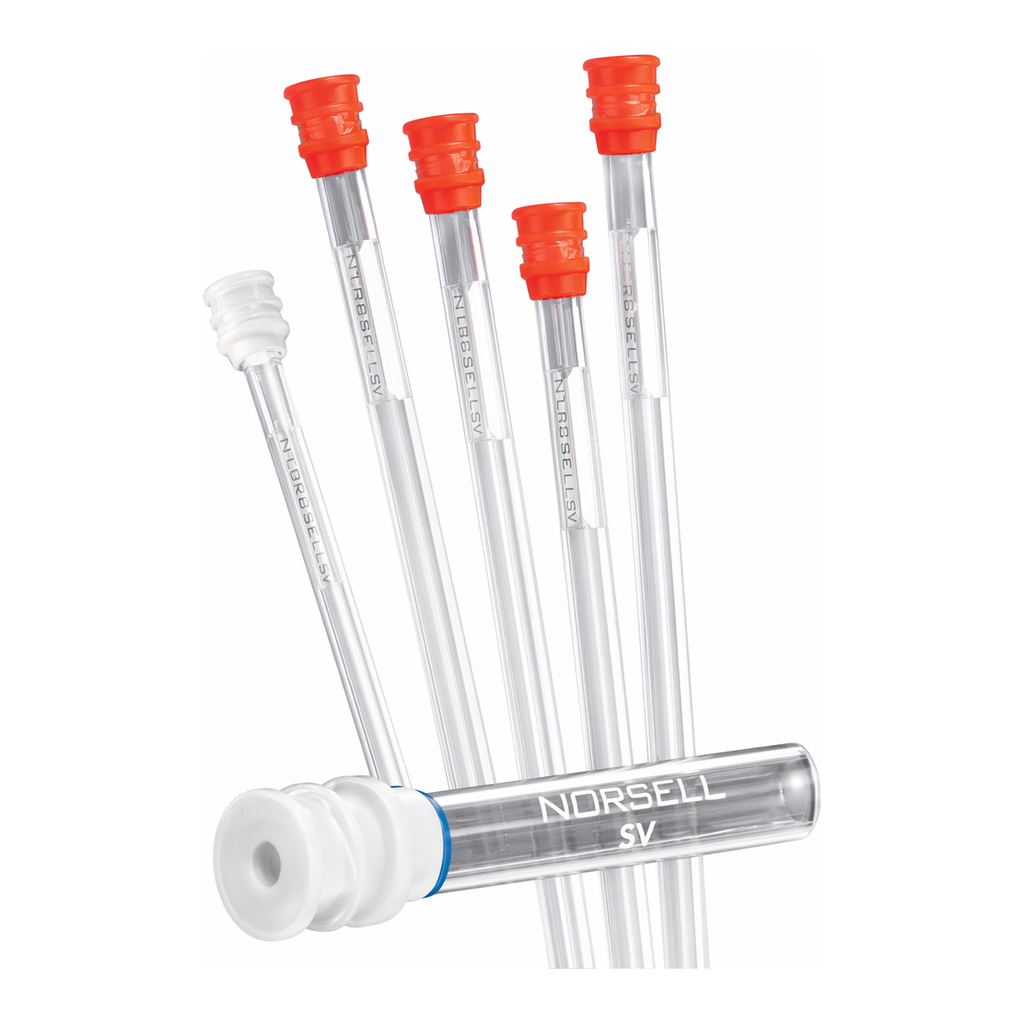

Norell® Sample Vault Series™ NMR tubes

standard wall, closed cap, frequency 700 MHz, diam. × L 5 mm × 178 mm

material

colorless tube

특징

neck thread push fit

포장

pkg of 96 ea

manufacturer/tradename

Norell SVCP-5-178-96PK

파라미터

700 MHz frequency

챔버

60 μm

직경 × 길이

5 mm × 178 mm

벽 두께

0.38 mm

For Bruker® SampleJet™ robotic high-throughput automated systems. NMR tubes with NorLoc™ caps are designed to be used with 96 position carriers using 103.5 mm (4 in.) long NMR tubes with open port caps, or 178 mm (7 in.) long NMR tubes with closed port caps. NorLoc caps have superior holding and sealing capabilities which eliminate cap/tube failure in your instrument.

Patent pending design incorporates a blue band positioned on the NMR tube that aligns with the base of the cap, indicating a properly locked position. The NorLoc cap and Sample Vault Series tube is an integrated closure system for fail-safe delivery of your sample to the magnet. Tubes are available in both 3 mm and 5 mm diameters for use up to 700 MHz and up to 950 MHz.

• Engineered for new generation high-throughput lab automation systems
• Two precision types for up to 700 MHz and up to 950 MHz spectrometers
• Superior NorLoc cap attaches semi-permanently for multiple use and for critical applications
• Choice of either NorLoc closed port cap or open port cap
• Closed port caps are supplied with tubes in a bag, open port caps are installed on the tubes
• Safe for cold refrigeration storage, works with cryo-probes and variable temperature studies
