Merck Corning CrystalEX 96 well protein crystallization plates

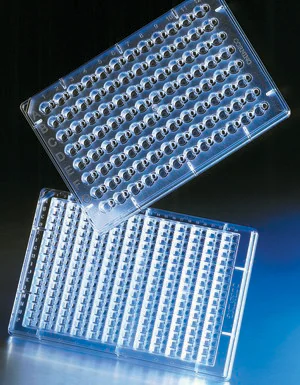

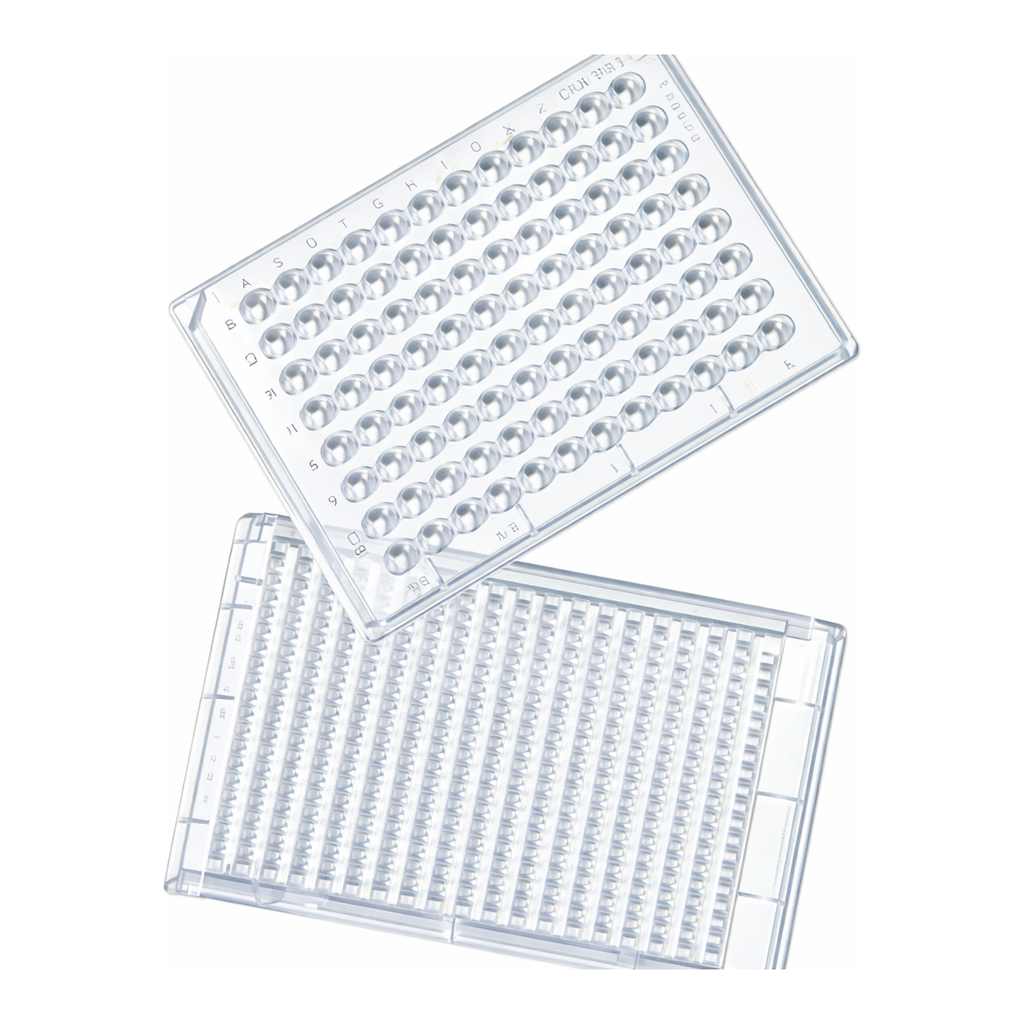

Corning® CrystalEX™ 96 well protein crystallization plates

surface treatment: no, round clear cyclic olefin copolymer (COC), non-sterile, lid: no, case of 50

96 well protein crystallization plate

material

clear plate
cyclic olefin copolymer (COC)
round bottom wells clear
round clear cyclic olefin copolymer (COC)

무균

non-sterile
non-sterile

특징

lid: no
lid: no
surface treatment: no
(skirt)
plate format: 96 wells
protein wells: 1/reservoir well

포장

pack of 10
case of 50

manufacturer/tradename

Corning 3773

저장장치 용적

210 μL

크기

96 wells

웰 용적

10 μL , protein well volume

웰 작업 용적

25-150 μL

색상

clear

적합성

suitable for (sitting-drop vapor diffusion high throughput protein crystallization)

binding type

non-treated surface

• Designed for sitting-drop vapor diffusion high throughput protein crystallization
• Features 96 reservoir wells and 96 corresponding protein wells
• Conical bottom protein wells provide better centering of the protein drop
• Total well volume for the reservoir well is 210 μL; for the protein well is 10 μL
• Working volume for the reservoir well is 25 to 150 μL
• Compatible with 8 and 12 channel manual pipettors, automated liquid handling work stations and imaging systems
• Novel merged well design provides efficient vapor space for protein crystallization
• Manufactured from an advanced polymer with high resistance to commonly used solvents, including acetone, acetic acid, butanone, ethanol, isopropanol, methanol, DMSO, nitric acid (65%), sulfuric acid (40%), hydrochloric acid (36%), and ammonia solution (33%)
• Low background polarization and high optical clarity allows protein crystals to be easily viewed under polarized light with minimal background interference
• Low water absorption of the polymer prevents loss of protein drop volume
