Merck E-Vac aspiration waste system

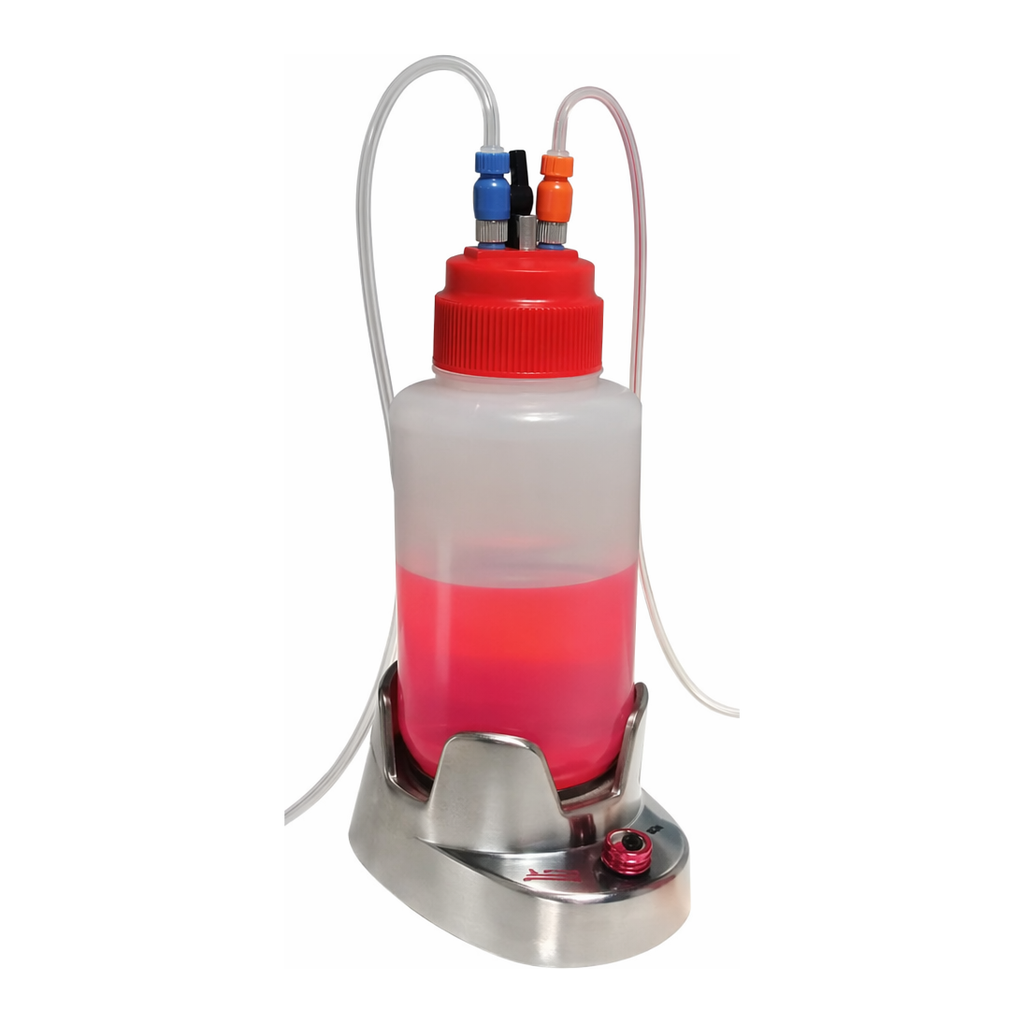

Merck E-Vac Aspiration Waste System

with 4 L Polypropylene Bottle, Quick Release Coupling Lid, Level Detector

Safe, self-contained waste system providing an alternative to traditional in-house vacuum systems.

These compact waste systems are ideal for handling critical or hazardous liquids, supernatants, pathogens, or for use in Class III or IV biohazard laboratories. The quiet, oil-free membrane pump operates within a range of –250 mm to –650 mm Hg. Once the target vacuum is reached, the pump automatically switches off, and it restarts when vacuum pressure is applied—maintaining a constant vacuum pressure. This makes it ideal for gentle aspiration of small plates and dishes, as well as rapid emptying of larger containers.

The stainless-steel housing is easy to clean and UV-resistant, suitable for laminar hood environments.

E-Vac bottles can be autoclaved for 20 minutes at 121 °C to prevent laboratory contamination. The base unit is illuminated for visual inspection of waste levels. Dual hydrophobic filters prevent liquid from reaching the pump housing and contaminating the system.

E-Vac is available with either a 4 L polypropylene bottle or a 3 L safety glass bottle. Both bottle types feature lids with quick-release tubing connectors and a level detection sensor that automatically shuts off the pump when the bottle is full. The polypropylene bottle version is also available with a lid fitted with standard barbed tube fittings.

주요 특징

• Compact, user-friendly design
• Level detection system prevents bottle overfill
• Control knob for infinite vacuum setting from -250 mbar to -650 mbar
• Includes HandE-Vac hand operator with single-channel plastic adapter
• All wetted parts (bottle, lid, tubing, connectors, hand operator) are autoclavable

규격 및 구성

추가 정보

The E-Vac is CE compliant, and the supplied international mains plug (100–240 V, 50/60 Hz) includes adaptors for the US, UK, Australia, and Europe.
