Merck Corning 96 well protein crystallization plates

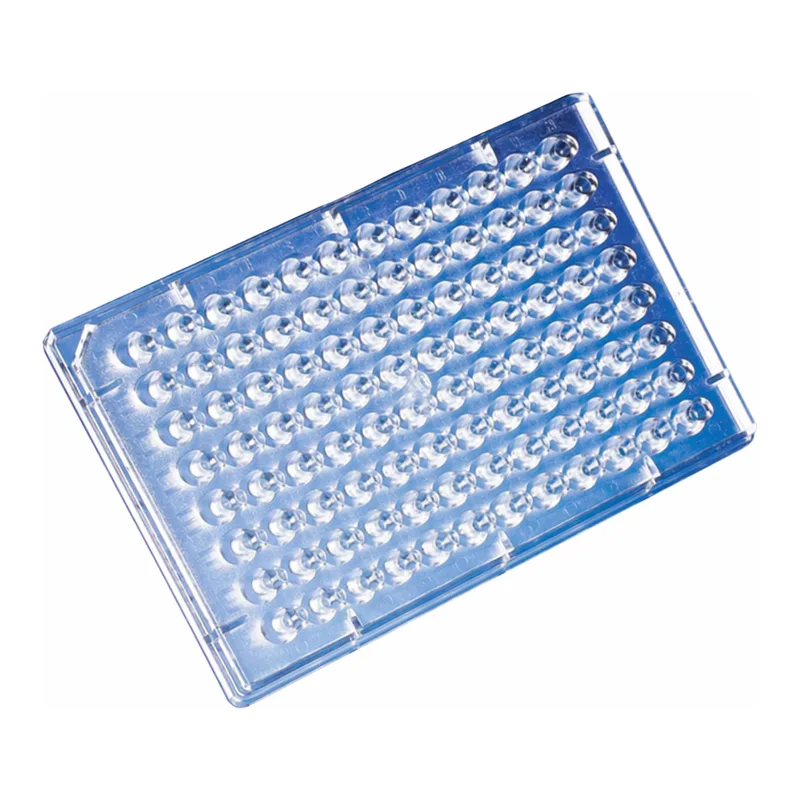

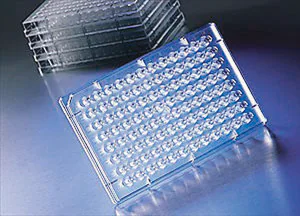

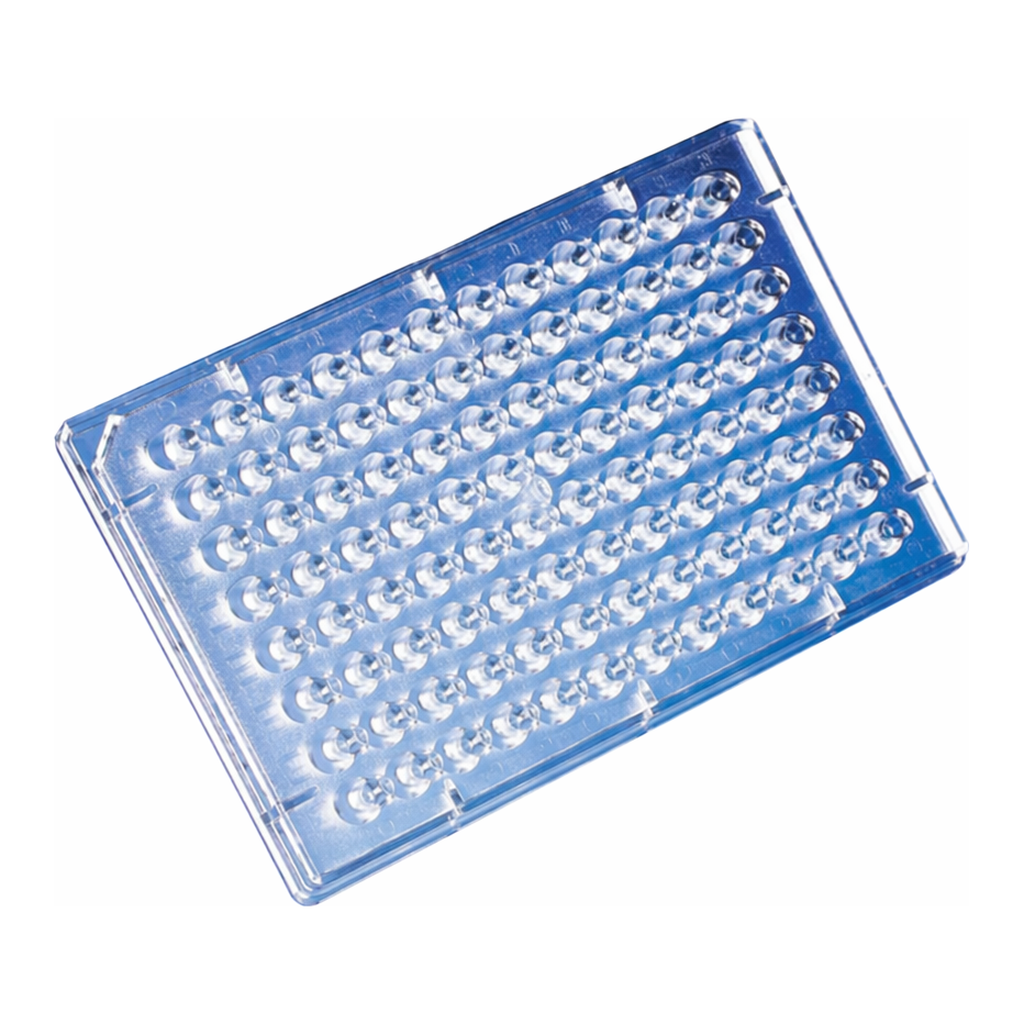

Corning® 96 well protein crystallization plates

COC, non-treated, 3:1 1uL conical flat bottom crystal cup wells, clear, nonsterile

96 well protein crystallization plate

material

clear plate
conical bottom clear wells
cyclic olefin copolymer (COC)

무균

non-sterile

특징

lid: no
(protein wells: 3/reservoir well)
plate format: 96 well

포장

pack of 10 ea
case of 50 ea

manufacturer/tradename

Corning 3550

저장장치 용적

100 μL

크기

96 wells

웰 용적

1 μL , protein well volume

색상

clear

적합성

suitable for (sitting drop vapor diffusion high-throughput (HT) protein crystallization)

binding type

non-treated surface

• Each well contains three 1 μL conical flat bottom Crystal Cup protein wells and one 100 μL reagent reservoir
• Crystal Cup well design facilitates centering and collecting protein crystals
• Low volume 100 μL reagent reservoir saves on reagent costs
• Designed for sitting drop vapor diffusion high throughput protein crystallization
• Manufactured from an advanced Cyclic Olefin Copolymer (COC) with high resistance to commonly used solvents, including acetone, acetic acid, butanone, ethanol, isopropanol, methanol, DMSO, nitric acid (65%), sulfuric acid (40%), hydrochloric acid (36%), and ammonia solution (33%) and improved transparency
• Allows protein crystals to be easily viewed under polarized light with minimal background interference
• Low water absorption of the polymer prevents loss of protein drop volume
• Reservoir numbers are embossed on each individual well for easy identification
