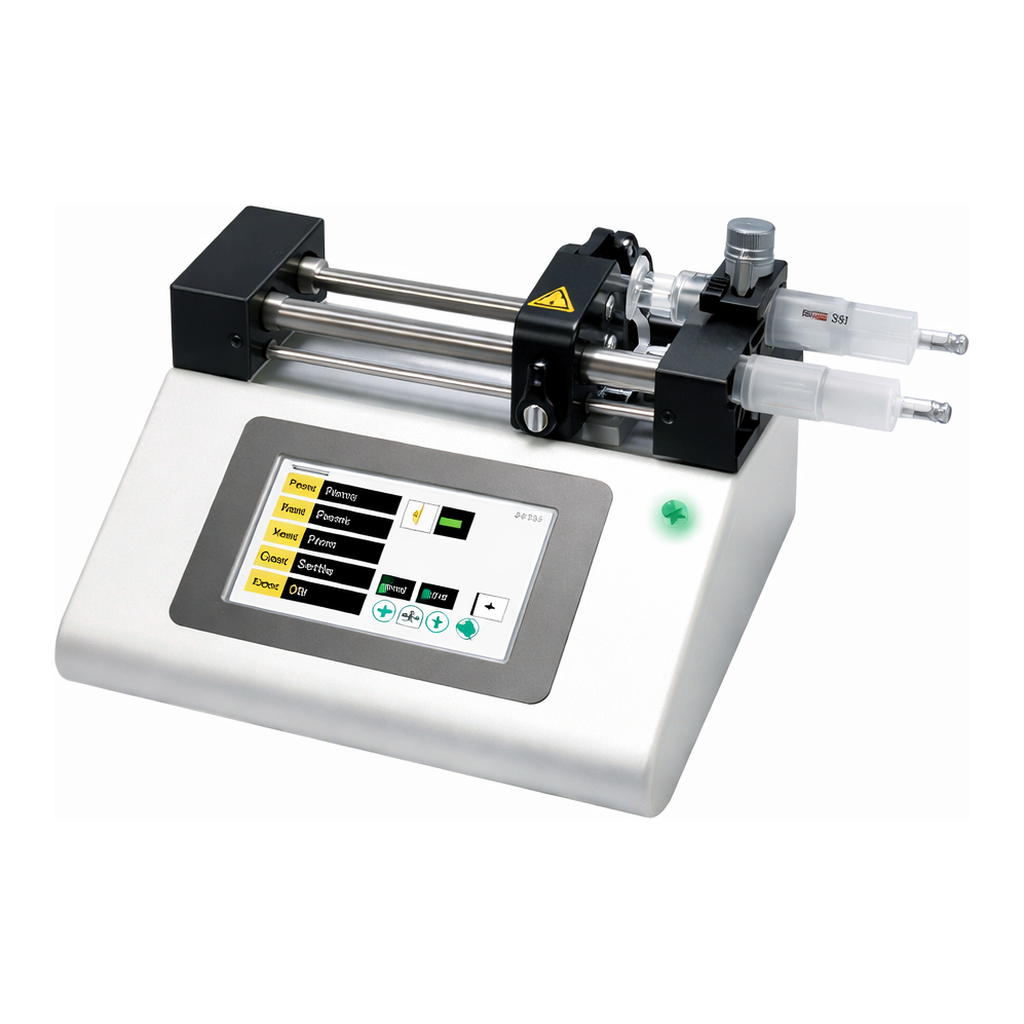

Merck KDS Legato 180, dual syringe picoliter infuse/withdraw pump

KDS Legato™ 180, dual syringe picoliter infuse/withdraw pump

AC/DC input 100 - 240 V AC, UK plug (3-pin)

특징

CE compliant
accuracy± 0.35%
1 channel

manufacturer/tradename

KD Scientific 788180

파라미터

-10-70 °C temp. limit (storage)
4-40 °C temp. limit (operating)

크기

22.6 cm × 19.05 cm × 15 cm

용적

0.0005-10 mL

중량

2.66 kg (5.9 lb)

Dual syringe infuse/withdraw optimized for low flow with program options for 2 programs. 50 steps each. Accomodates syringes 0.5 μL to 10 mL. User definable flow rates with selectable target volume or time values to control the total infusion volume.

Features:

• Holds one or two syringes from 0.5 μL to 10 mL
• High resolution color touch screen
• Unparalled ease of use
• Touch pad lock feature
• LED light on front panel
• Full metal chassis
• Built in syringe table
• Up to 30 lbs linear force
• Advanced microstepping techniques
• Built in RS485 interface
• USB port
• I/O & TTL interface
• Continuous mode of operation
• Spill dam
• Programmable
