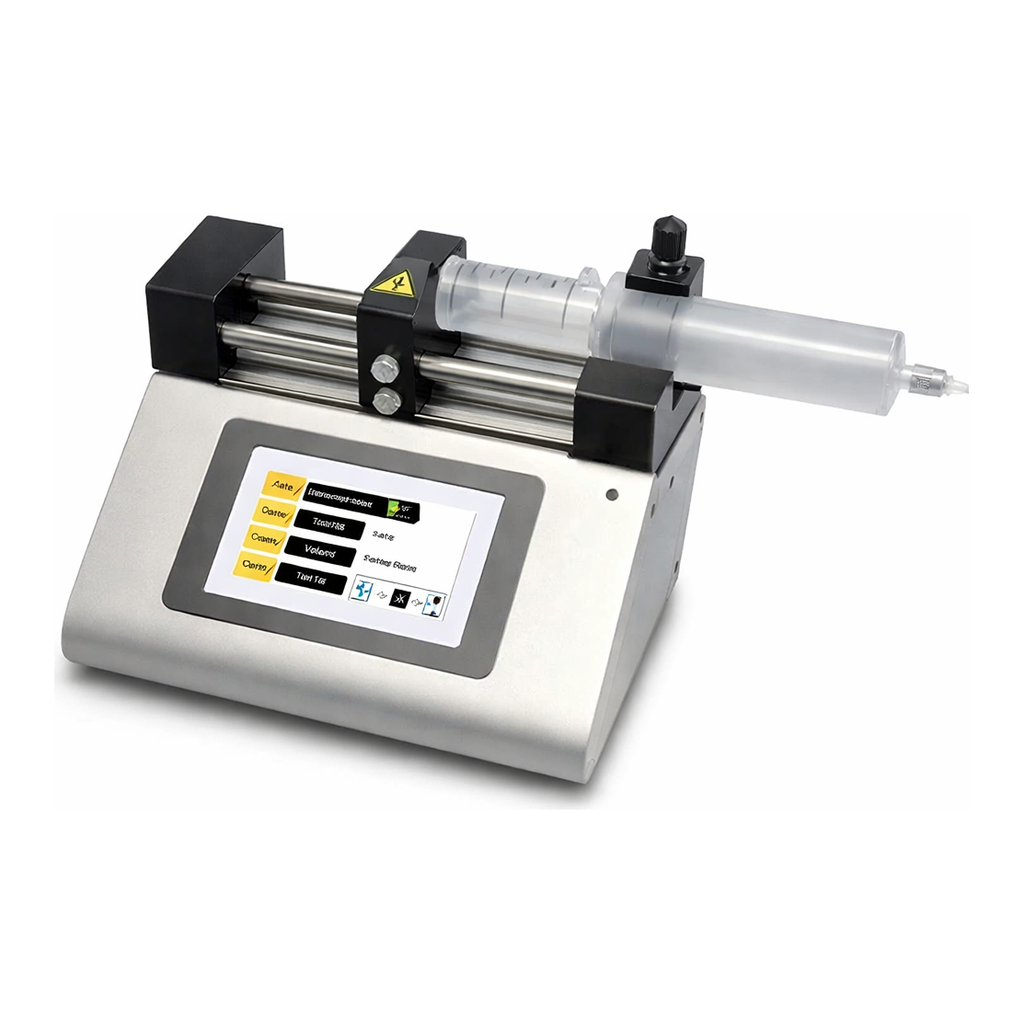

Merck KDS Legato 100, single syringe infusion pump

KDS Legato™ 100, single syringe infusion pump

AC/DC input 100 - 240 V AC, EuroPlug (flat 2-pin)

특징

CE compliant
accuracy± 0.5%
10 channels

manufacturer/tradename

KD Scientific 788100

파라미터

-10-70 °C temp. limit (storage)
4-40 °C temp. limit (operating)

크기

22.6 cm × 19.05 cm × 15 cm

용적

0.5-60 mL

중량

2.66 kg (5.9 lb)

Infuse only single syringe pump. Accommodates syringes from 0.5 μL to 60 mL. User definable flow rates with selectable target volume or time values to control the total infusion volume.

Features:

• Holds one syringe from 0.5 μL to 60 mL
• Stall detection
• High resolution color touch screen
• Unparalleled ease of use
• Password protected touch display
• Run LED light on front panel
• Full metal chassis
• Built in syringe table
• Up to 30 lbs/13 kg linear force
• Advanced microstepping techniques
• Built in RS485 interface
• USB port
• I/O & TTL interface
• Continuous mode of operation
• Spill dam
