Merck Diazald kit with Clear-Seal joints

Diazald® kit with Clear-Seal® joints

joint: ST/NS 19/22

조인트

joint: ST/NS19/22

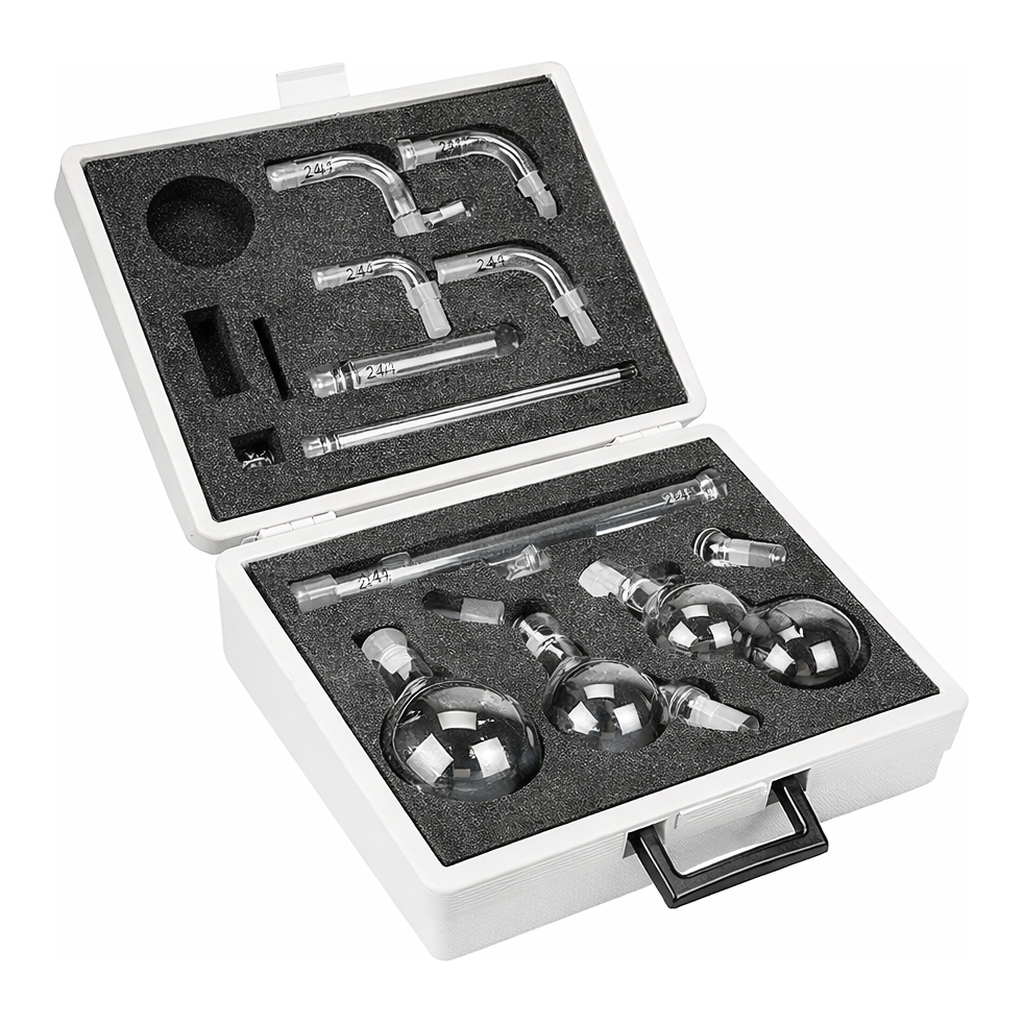

The Diazald kit is a set of distillation glassware designed for the safe preparation of diazomethane (~100 mmol). Glassware without sharp edges or ground-glass joints is recommended by de Boer and Backer [Org. Syn., Coll. Vol. 4, 250 (1963)]. The Diazald kit features 19/22 Clear-Seal joints; these joints do not require grease even for vacuum applications, thus avoiding a source of contamination.

The glassware in the kit should be washed with care and without the use of wire brushes which will scratch the inner surface. For further information, request Technical Information Bulletin No. AL-180 and for a review on the preparation and reactions of diazomethane, see Aldrichim. Acta, 16, 1, 1983.

Call or visit our website for pricing on replacement parts.

For technical and safety information about Diazald and Aldrich diazomethane generators see Technical Information Bulletin AL-180.

NOTE: We are unable to supply certain Diazomethane precursors in some countries. Check availability of starting materials prior to glassware purchase.
