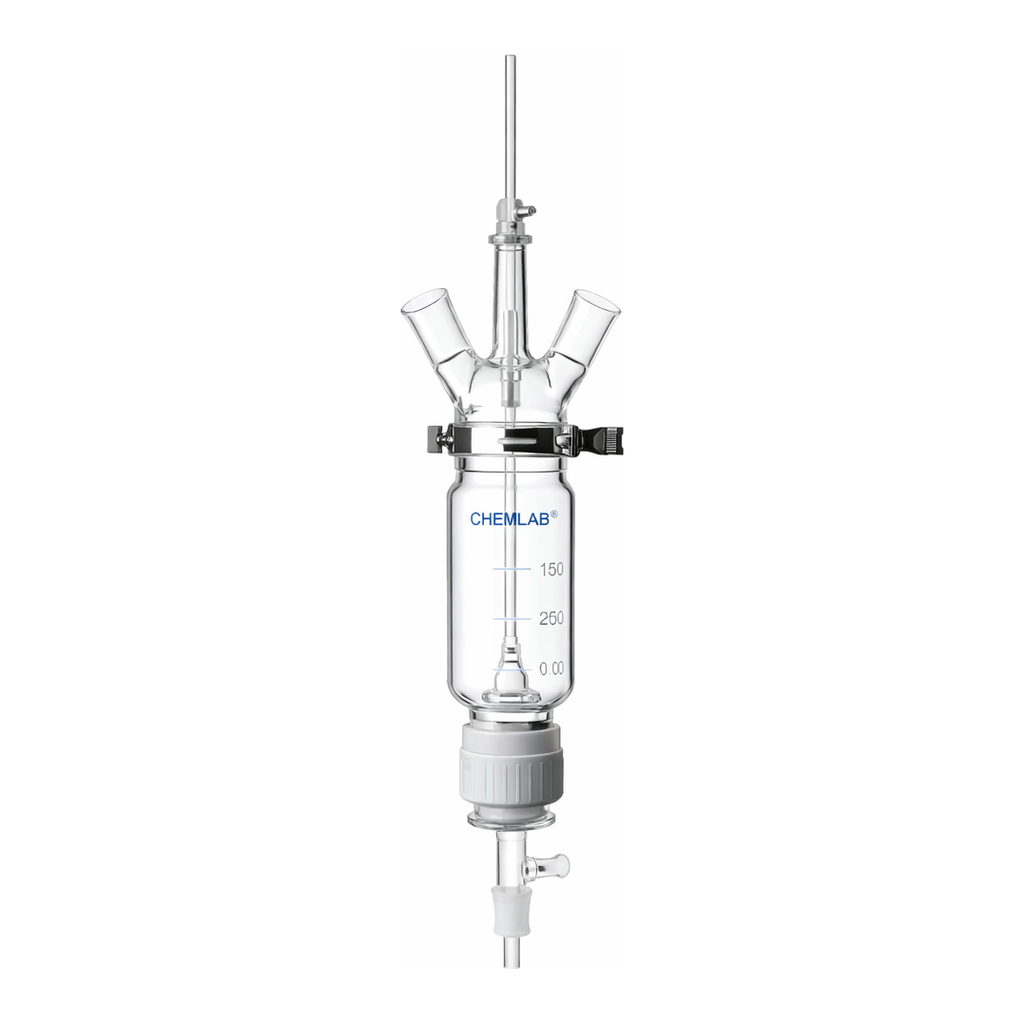

Ace filter reactor system
capacity 1 L
용량
1 L
Complete filter reactor assembly allows single or multi-step reactions and filtrations in the same vessel. Features heavy wall glass, interchangeable filters, mechanical agitation and 4 in. or 6 in. Schott flanges.
Features: 3 x 24/40 joints on 60 mm head, 4 x 24/40 joints on 100 mm head
Applications:
- Oxidation/reduction reactions where the particulate can be drawn down to a filter cake
- Nanotechnology where the material must be contained and the filtrate is the actual product or nano-particle needed
- Simple bioreactor as gases can be introduced through pressure head via a pressure or NPT fittings and tubing
- Paints/pigments other viscous solutions
System includes:
- Heavy-wall glass reactor body and head, CAPFE o-ring and SS quick-release clamp
- Ace Thred PTFE bottom filter adapter, o-ring, and filter support, PTFE thread adapter, o-ring and PTFE bottom valve
- Non-flaking stir shaft bearing
- Glass stir shaft with PTFE agitator assembly
- Addition funnel
- West condenser
- Support package including holed plate, stand, chain clamp, and holder
- PTFE stoppers
- Chuck adapter for IKA stirrer motor
