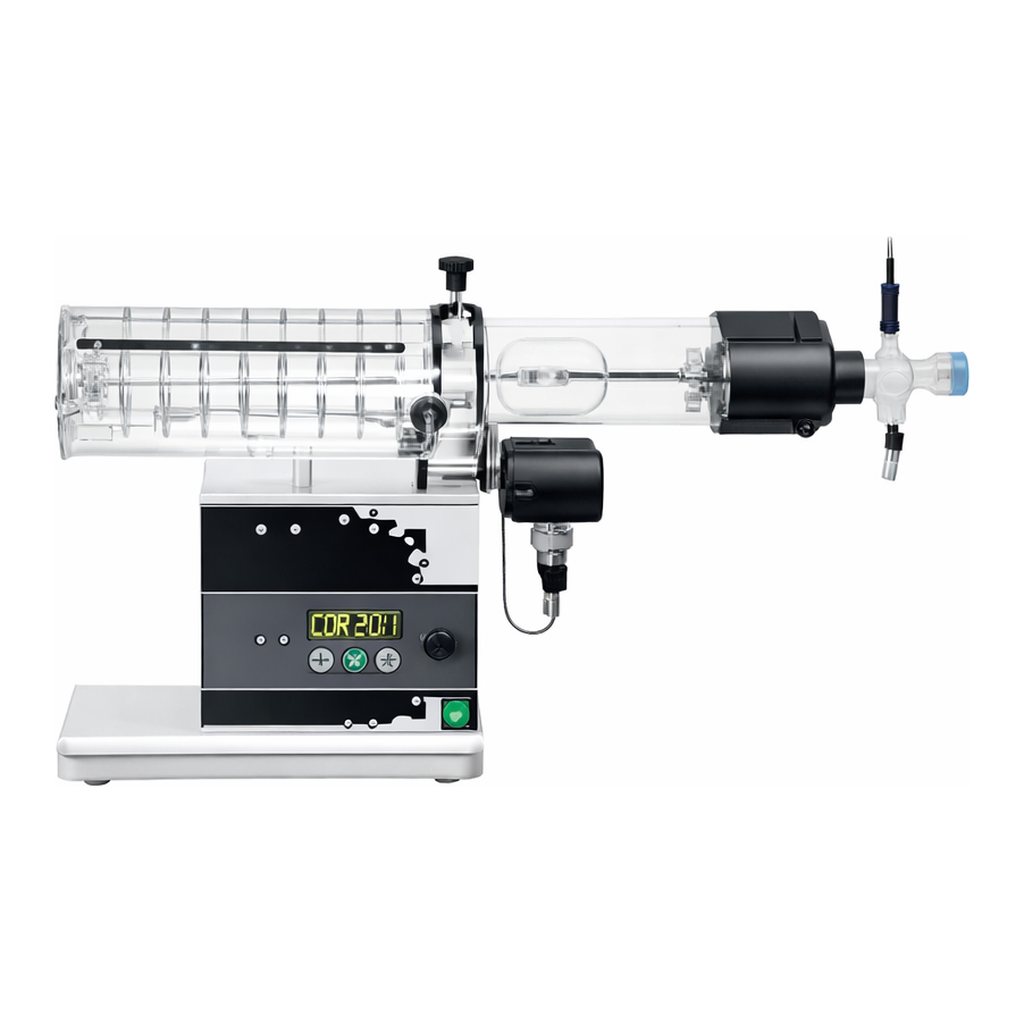

Merck Büchi glass oven for micro distillation, B-585

Büchi® glass oven for micro distillation, B-585

temperature and time can be programmed at 3 levels

AC/DC input

110 V / 230 V AC

manufacturer/tradename

Büchi 046601

너비 × 높이 × 깊이

25.6 in. (65.0 cm) × 11.8 in. (30.0 cm) × 11.8 in. (30.0 cm)

The Büchi micro distillation system is ideal for drying, distilling, and the sublimation of small-volume samples from ambient temperatures up to 300°C.

Fast heating, safety, and versatility are just some of their convenient features/benefits: Transparent sample vessels let you easily observe sample reactions; stainless steel sleeves protect glassware and distillation tube.

• Includes 3 x 20 mL ball-tube assembly, ball-tube drive unit and 60 mL rotation drying flask
• Fast heating to 300°C in 10 min
• Steady vacuum for difficult sample solvents
• Shorter evaporation vessel eliminates cross-contamination and improves reproducibility
• Transparent sample vessel for complete visibility of sample during entire process
• Stainless steel protective sleeve ensures safety
• Temperature regulation from 40°C to 300°C, ±5°C
• Reaches -70°C for freeze-drying and sublimation with accessory circulator
• For small-scale distillation from 10 mL to 60 mL
• Rotation speed up to 50 rpm for uniform evaporation
• User-programmable distillation profiles
