Merck Scienceware table-top Buchner funnel

Scienceware® table-top Buchner funnel

I.D. 10 1/4 in., porosity perforated, Fixed plate

manufacturer/tradename

Bel-Art

I.D.

10 1/4 in.

전체 높이

178 mm (7 in.)

림에서 플레이트 높이

127 mm (5 in.)

공극 크기

porosityperforated

Porous filter plate funnels:

• Large capacity, PE funnels are a one piece design with a choice of fixed or removable Fritware porous filter plates supported by a multiple ring grid
• Filter plates are made of HDPE 6.4 mm (19/32 in.) thick
• A non-porous ring at the periphery of the plate seals filter paper when used
• Vacuum connector accepts 12.7 mm (19/32 in.) I.D. tubing
• Available with medium or coarse porous filter plates
• Use below 52°C (125°F)

**
Perforated filter plate funnels:**

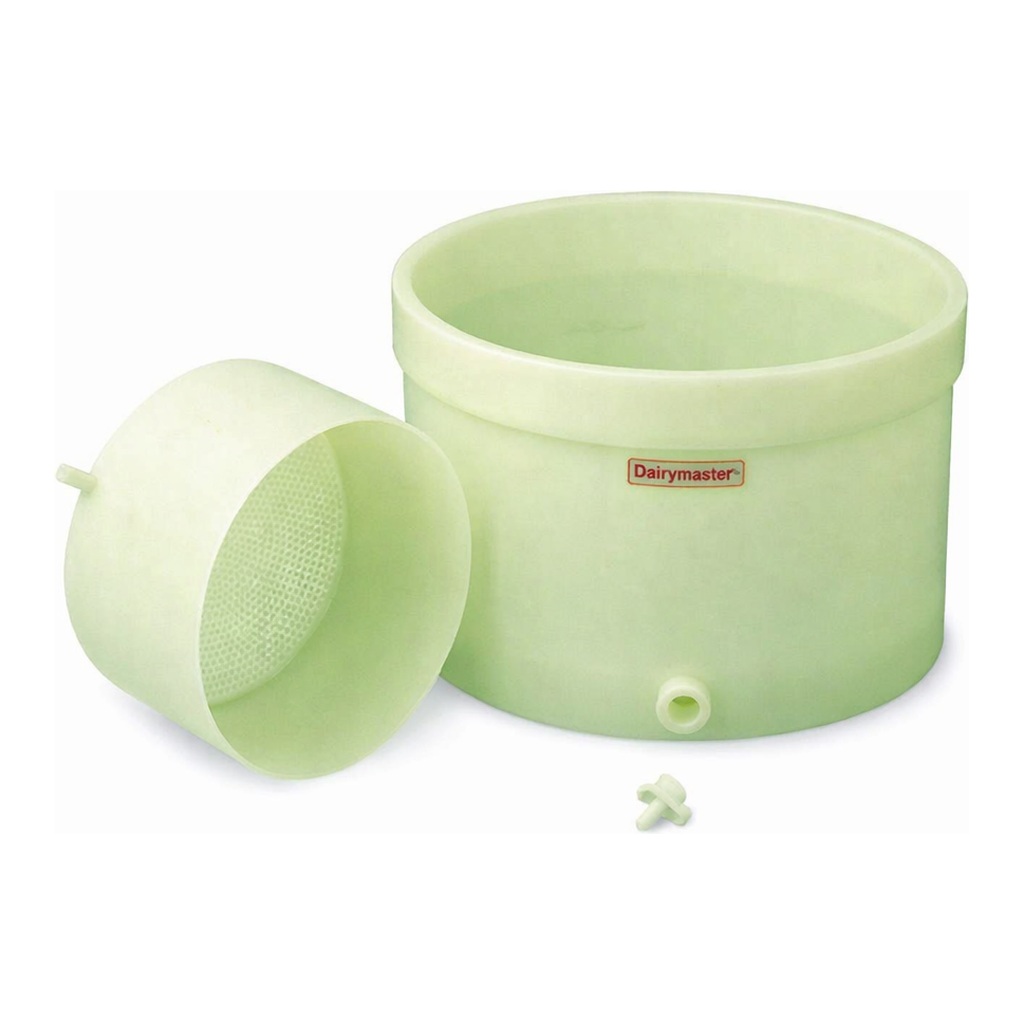

• Similarly, these funnels are available with fixed or removable perforated filter plates
• Filter plates are made of HDPE 4.8 mm (3/16 in.) thick with 4.8 mm perforations on 11 mm (7/16 in.) centers
• The fixed version is for coarse filtration or use with cloth or paper filters
• The removable filter plate can be used in precious metals recovery
• Use below 52°C (125°F)
