Merck Duran sintered disc filter funnel

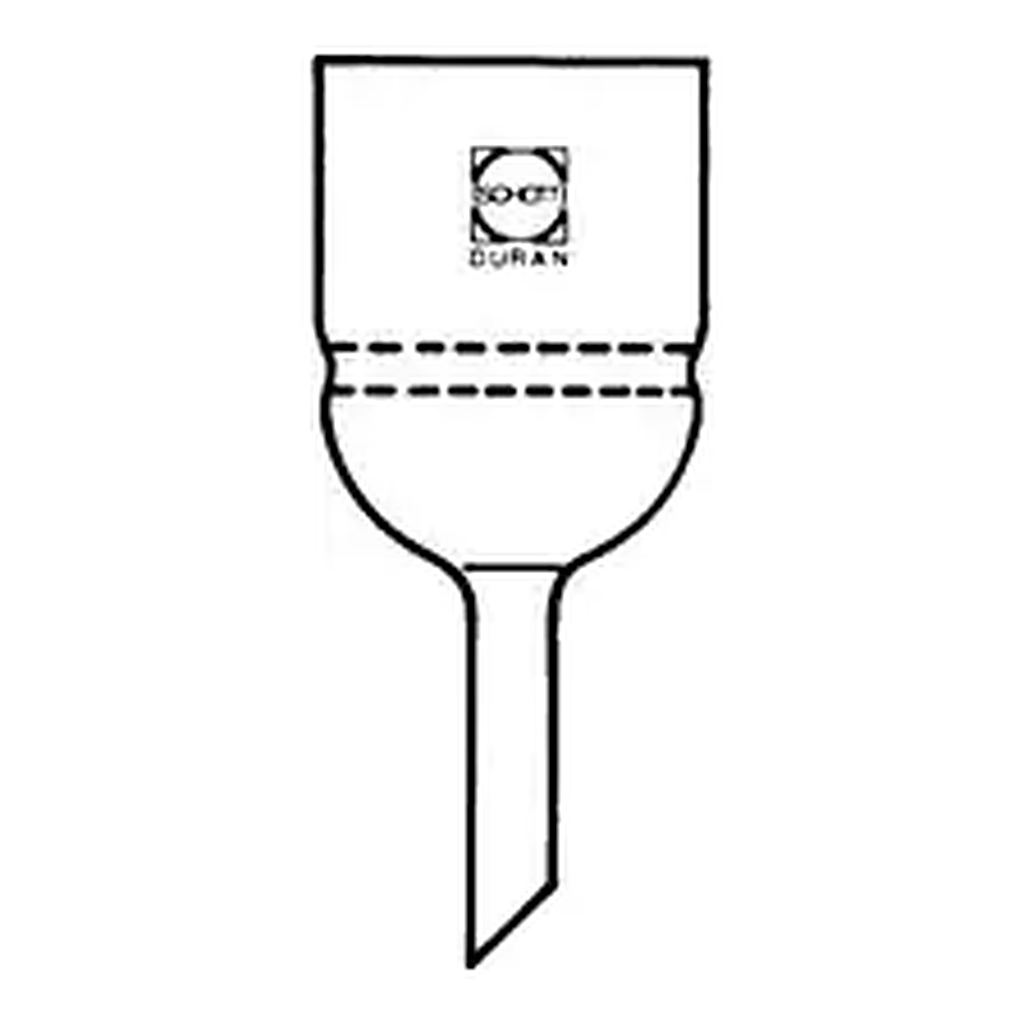

Duran® sintered disc filter funnel

capacity 50 mL, nominal max pore size 1.0-1.6 μm

material

(Both funnels and frits are made from borosilicate glass)

manufacturer/tradename

DURAN
Schott

availability

not available in USA and Canada

용량

50 mL

디스크 직경

35 mm

공극 크기

1.0-1.6 μm nominal max pore size

Especially useful where filter paper would be attacked by filtered material.

Sintered discs with max. pore sizes in the range 40 to 100 μm are often used for preparative work and mercury filtration, 16 to 40 μm discs for analytical work with medium precipitates and 10 to 16 μm for fine precipitates. 1.0 to 1.6 μm discs are for ultra-fine filtration of biological solutions as they remove bacteria from liquids that would decompose if heated.

Porosity chart for Duran filter funnels:
Grade 2: 40-100 μm nominal max. pore size
Grade 3: 16-40 μm nominal max. pore size
Grade 4: 10-16 μm nominal max. pore size
Grade 5: 1.0-1.6 μm nominal max. pore size
