Merck Ace vacuum manifold with Firestone valve

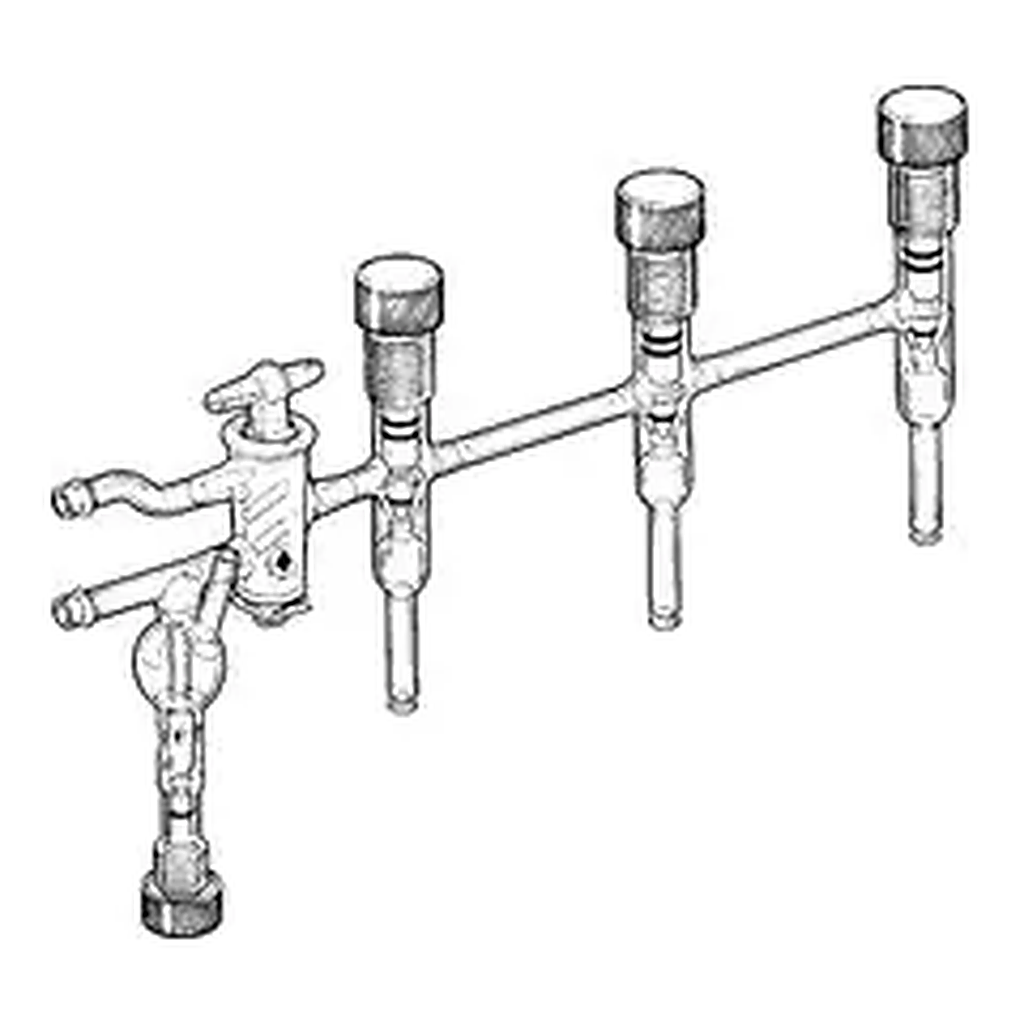

Ace Vacuum Manifold with Firestone Valve

제조사 / 트레이드네임

• Ace Glass 876527
• 공급업체: Merck Sigma

특징

• 4-포지션 진공/가스 매니폴드
• 한쪽 끝에 Firestone 급속 퍼지 밸브 장착
• 0~5 mm 고진공용 PTFE 스톱콕 포트
• 3/8 in. O.D. Swagelok® 튜빙 연결
• 각 연결부는 #11 Ace-Thred용 O-ring 홈 포함 (O-ring 제공)
• PTFE 플러그 및 UHDPE 핸들, PTFE O-ring 사용

제품 설명

Vacuum/gas manifold with a Firestone rapid purge valve at one end and 0 to 5 mm high-vacuum, easy action PTFE stopcock ports with 3/8 in. O.D. Swagelok® tubing connections.
Each connection also has an O-ring groove (O-rings supplied) for use with #11 Ace-Thred.

The Firestone valve eliminates the need for a second tube. Simply connect one 10 mm O.D. arm to vacuum, the other to gas source, and, by a half-turn of the stopcock plug, alternate between vacuum and gas.
Shut-off float on gas side of valve prevents pressure build-up when system is purged.
Plugs are PTFE with UHDPE handles and PTFE O-rings.
