Merck Fluoropore Membrane Filter

Fluoropore Membrane Filter

1.0 µm pore size, hydrophobic PTFE, 13 mm membrane

material

PTFE membrane
plain filter
white filter

agency

in accordance with NIOSH 6006

특징

hydrophobic

manufacturer/tradename

Fluoropore®
Millipore

파라미터

100 mL/min-cm2 water flow rate
130 °C max. temp.
16 L/min-cm2 air flow rate

필터 직경

13 mm

두께

150 μm

gravimetric extractables

0.5%

기질

Fluoropore®

공극 크기

1.0 μm pore size
85 % porosity

bubble point

≥0.5 bar, air with methanol at 23 °C

배송 상태

ambient

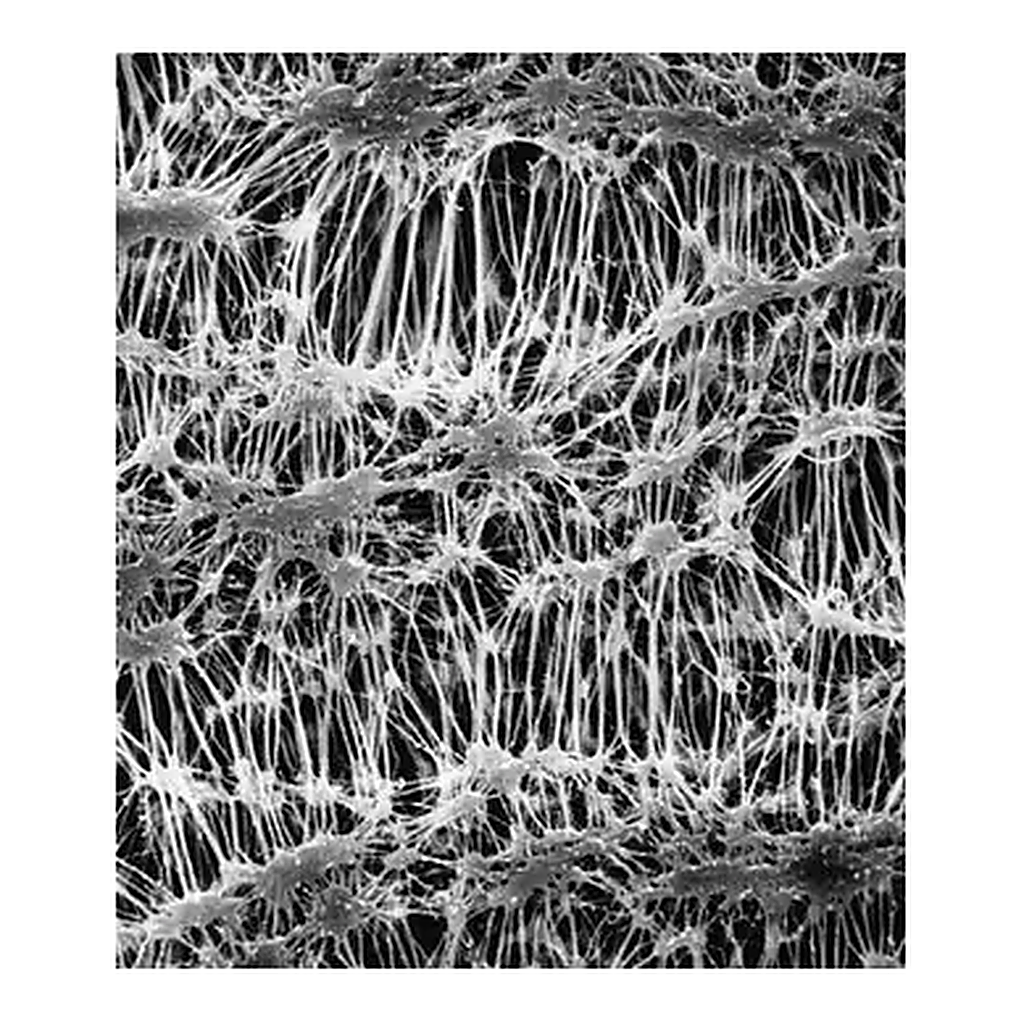

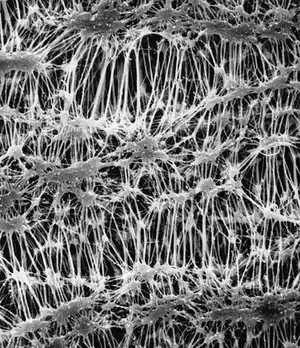

Our Fluoropore® membrane is a hydrophobic, polytetrafluoroethylene (PTFE) polymer membrane bonded to a high density polyethylene support to improve the handling characteristics of the filter for normal applications. Fluoropore membranes provide broad chemical compatibility, high flow rates and consistency. (Please note that catalogue numbers containing FHUP are unlaminated, or produced without a backing.)

Our Omnipore membrane is a hydrophilic PTFE membrane that is compatible with virually all solvents, acids, and alkaline solutions.

Features & Benefits:
- Biologically and chemically inert
- High porosity yields high flow rates
- Hydrophobic and hydrophilic PTFE varieties available for filtration of aqueous and organic-based samples

Applications:
- Fluoropore Membrane: Clarifying Acids, Bases and Solvents; Air Monitoring; Filtering and Venting Gases; UV Spectroscopy

- Omnipore Membrane: Filtration of Aqueous Solutions, Clarifying Acids and Alkaline Solution
