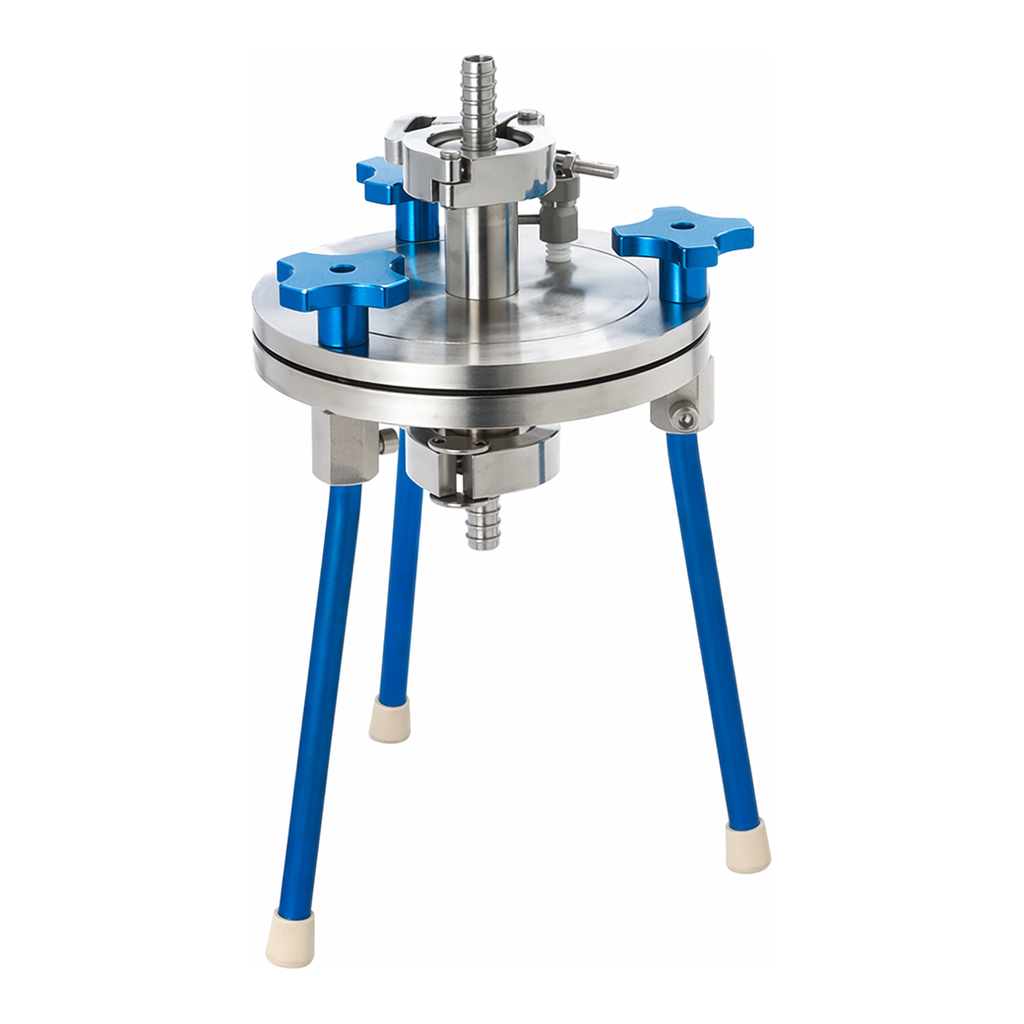

Filter Holder 142 mm, stainless steel
Filter Holder 142mm, stainless steel
Quality Level
material
316 stainless steel
PTFE seal
anodized aluminum leg(s)
파라미터
14 bar max. inlet pressure (200 psi)
7 bar max. differential pressure (100 psid)
높이
27 cm , plus inlet connector
직경
18.4 cm
필터 직경
142 mm
여과 면적
127 cm2
prefilter diam.
124 mm
중량
6.4 kg (14.1 lb)
피팅
1.5 in. inlet sanitary flange for 14 mm I.D. hose (with clamps and adapters supplied)
1.5 in. outlet sanitary flange for 14 mm (9/16 in.) I.D. hose (with clamps and adapters)
application(s)
filtration
호환성
for use with Standing Stainless Steel Filter Holder
배송 상태
ambient
The Stainless steel filter holders are designed to ultraclean or sterilize liquids or gases by pressure filtration. PTFE-faced support screens permit autoclaving with membranes in place.
YY3009000 Filter Holder, 90 mm, stainless steel
Replacement Parts
XX2504705 Hose Adapter, 1/4 in. NPTM to 3/8 in. I.D.
XX4204708 Vent/Relief Valve
YY3009053 O-rings, 90 mm filter housing, PTFE
YY3009054 Support Screen, PTFE-coated
YY2209058 Underdrain Support, 90 mm
YY2209059 Support Legs
