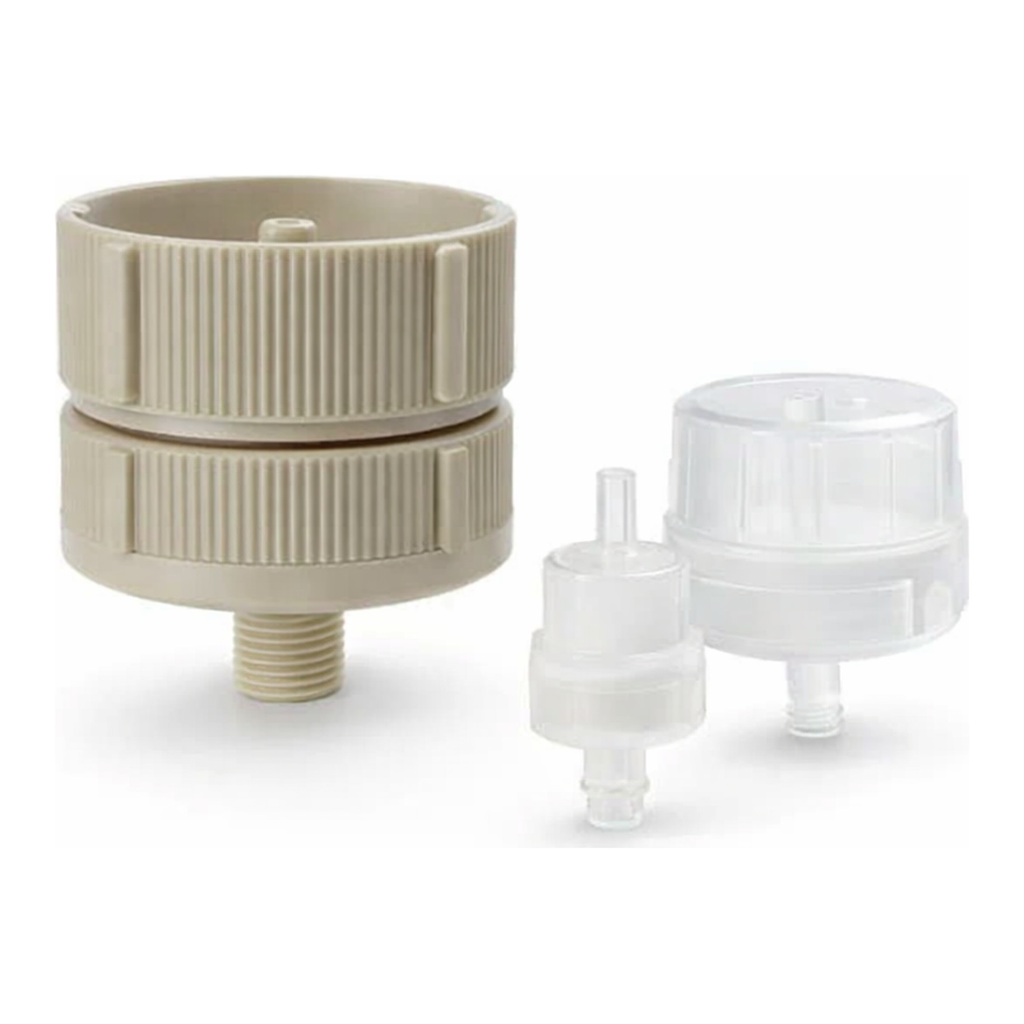

Merck Swinnex Filter Holder

Swinnex Filter Holder

Swinnex Filter Holder, 25mm

Quality Level

100

material

polypropylene device
silicone gasket
silicone seal

manufacturer/tradename

Swinnex®

파라미터

121 °C max. temp.
3.5 bar max. inlet pressure (50 psi)

길이

3.7 cm

직경

3.2 cm

필터 직경

25 mm

여과 면적

3.4 cm2

prefilter diam.

22 mm , thick depth prefilter

피팅

female Luer-Lok® inlet connection
female Luer-Lok® inlet fitting
male Luer outlet slip

application(s)

filtration

호환성

for use with Sterifil Aseptic System

배송 상태

ambient

Make your own syringe filter! Swinnex filter holders give you the flexibility to select the membrane type and diameter that are most appropriate for your application. For sterile filtration, autoclave you Swinnex filter holders with the membrane in place. Ultraclean or sterilize small volumes of liquids dispensed by a syringe or install in-line to filter larger volumes.

Features & Benefits:
•Available in three sizes for a range of process volumes
•Autoclavable with filter in place for sterile filtration

SX0001300 Swinnex Filter Holder, 13 mm
SX0002500 Swinnex Filter Holder, 25 mm
SX0004700 Swinnex Filter Holder, 47 mm

Replacement Parts
SX0001301 Silicone Gaskets for 13 mm Swinnex Filter Holder
SX0002501 Silicone Gaskets for 25 mm Swinnex Filter Holder
XX2702510 Support Screen, 25 mm, polypropylene
XX1104715 Support Screen, 47 mm, polypropylene
XX1104707 O-ring (5-329) for Swinnex 47 mm Filter Holder, silicone
SX0004701 Base O-ring for Swinnex 47 mm Filter Holder, silicone
SX00047RK Replacement Parts Kit for Swinnex 47 mm Filter Holder
