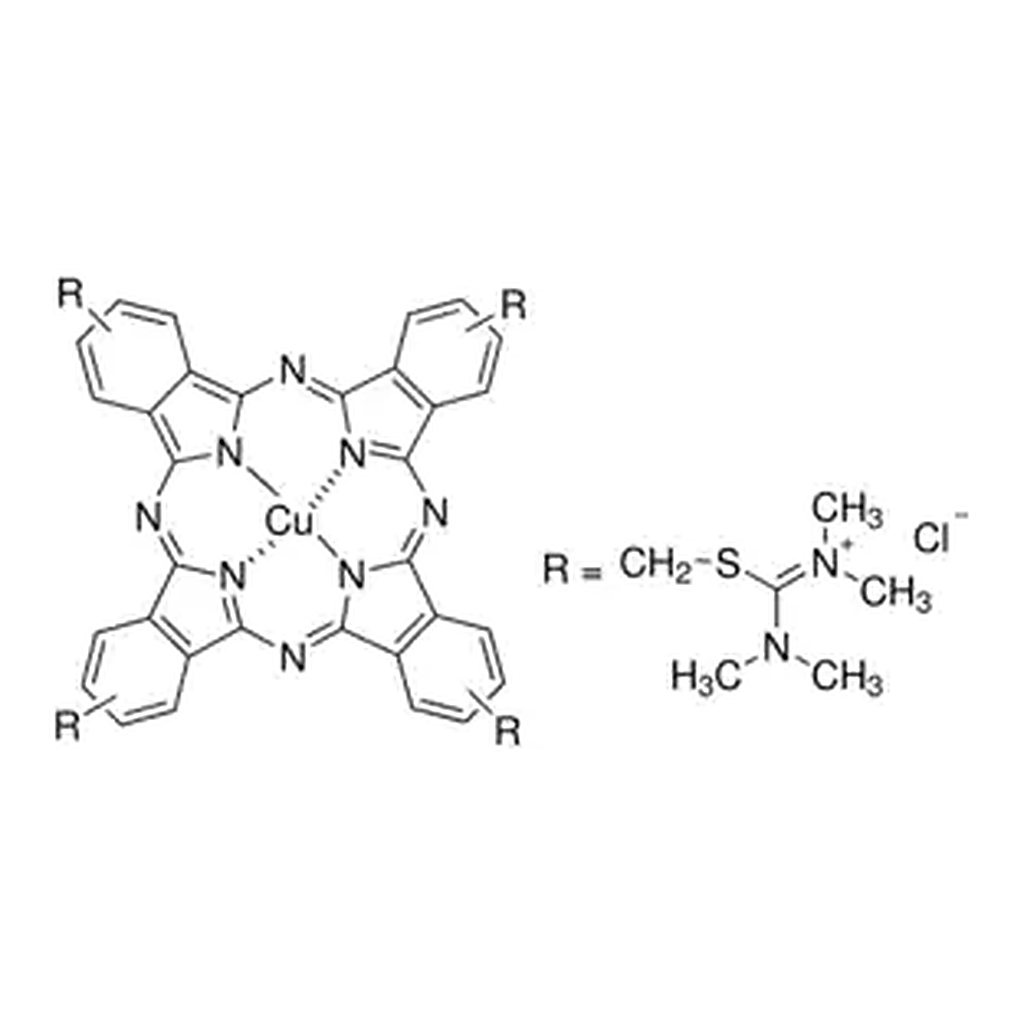

Merck Alcian Blue 8GX

Alcian Blue 8GX

certified by the Biological Stain Commission

Alcian Blue, Ingrain Blue 1

Quality Level

200

Grade

certified by the Biological Stain Commission

form

powder

구성

Dye content, ≥50%

solubility

water: 1 mg/mL, blue

εmax

195-400 at 617-630 nm

application(s)

diagnostic assay manufacturing
hematology
histology

저장 온도

room temp

SMILES string

[Cl-].[Cl-].[Cl-].[Cl-].CN(C)C(\SCc1ccc2c3nc(nc4n5[Cu]n6c(nc7nc(nc5c8cc(CS\C(N(C)C)=[N+](\C)C)ccc48)c9ccc(CS\C(N(C)C)=[N+](\C)C)cc79)c%10ccc(CS\C(N(C)C)=[N+](\C)C)cc%10c6n3)c2c1)=[N+](/C)C

InChI

1S/C56H68N16S4.4ClH.Cu/c1-65(2)53(66(3)4)73-29-33-17-21-37-41(25-33)49-57-45(37)62-50-43-27-35(31-75-55(69(9)10)70(11)12)19-23-39(43)47(59-50)64-52-44-28-36(32-76-56(71(13)14)72(15)16)20-24-40(44)48(60-52)63-51-42-26-34(18-22-38(42)46(58-51)61-49)30-74-54(67(5)6)68(7)8;;;;;/h17-28H,29-32H2,1-16H3;4*1H;/q+2;;;;;+2/p-4

InChI key

CKLBXIYTBHXJEH-UHFFFAOYSA-J

Alcian Blue 8GX has been used for the staining of sulfated proteoglycans in murine MPC (mesenchymal progenitor cell) nodule. It has been used for the staining of sulfated proteoglycans in bovine articular chondrocytes.
