Merck Corning HTS Transwell 96 well permeable supports

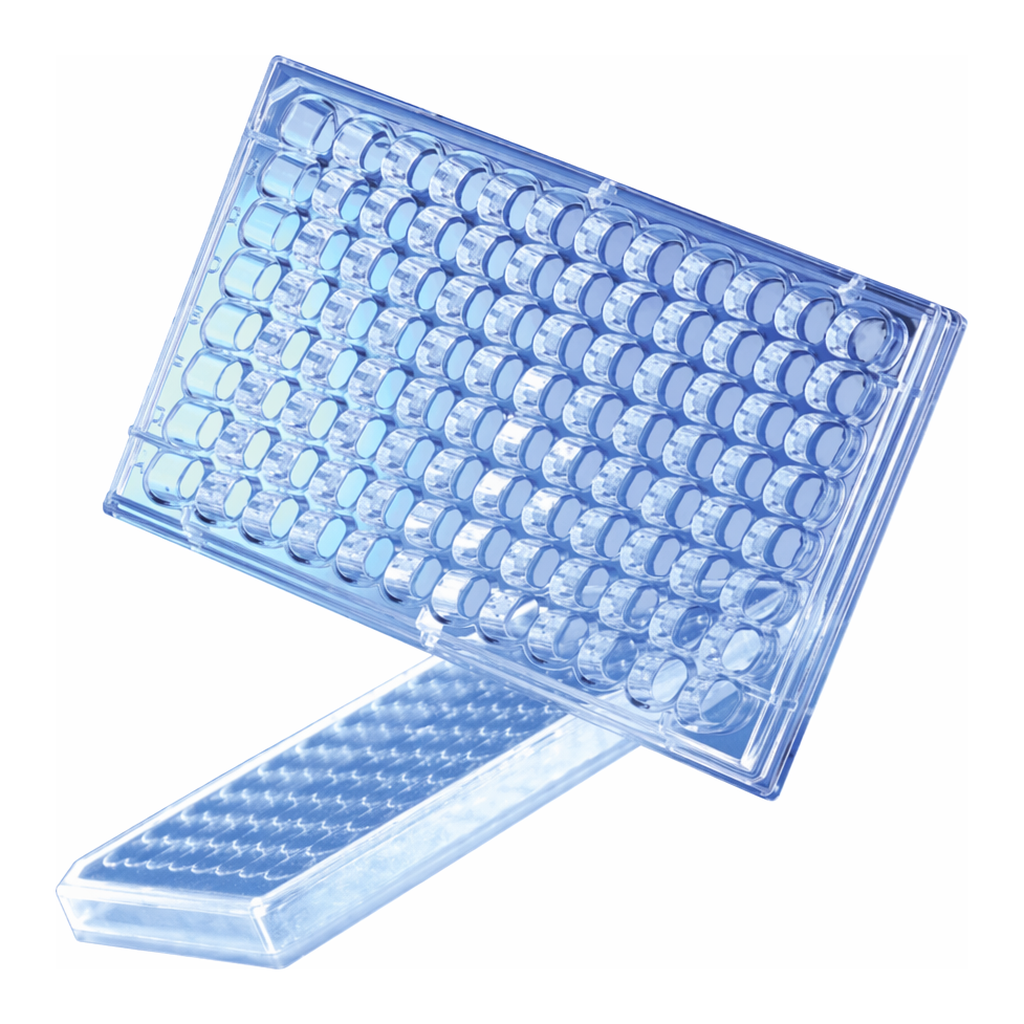

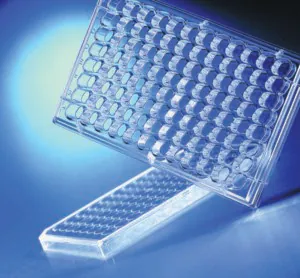

Corning® HTS Transwell® 96 well permeable supports

HTS Transwell-96 Permeable Support with 3.0 μm pore polycarbonate membrane, TC-treated, sterile, 8/cs

corning transwell, transwell corning

material

flat bottom wells clear
polycarbonate membrane
polystyrene
round wells

무균

sterile

특징

lid
(skirt)
plate format: 96 well

포장

pack of 4
case of 8

manufacturer/tradename

Corning 3386

삽입물 작업 용적

0.08 mL

멤브레인 직경

4.26 mm

멤브레인 두께

10.0 μm

크기

96 wells

웰 작업 용적

0.235 mL

색상

clear plate

공극 크기

3.0 μm pore size

표면적

0.14 cm2 (cell growth area)

binding type

Tissue Culture (TC)-treated surface

• HTS Transwell®-96 permeable supports have an array of 96 wells with permeable inserts connected by a rigid robotics-friendly tray
• Product includes HTS Transwell®-96 permeable support insert, receiver plate (96 wells for growth or assay steps) and 1 sterile lid; 8 sets per case
• 3.0 μm pores size PC (polycarbonate) membrane
• Membrane area for cell growth or cell migration is 0.143 cm² which is 20-50% greater than other brands
• Large apical and basolateral access ports
• Automation optimized design with multi-channel feeder ports, improved gripping surface and bar coding
• All membranes are treated for cell attachment
• Receiver plates are untreated
• Lid – minimizes evaporation and protects against contamination
