Merck Grace Bio-Labs SecureSeal hybridization chambers

Grace Bio-Labs SecureSeal™ hybridization chambers

wells, 8, well diam. × depth 9 mm × 0.8 mm, ports diam. 1.5 mm

material

clear polycarbonate backing (0.25mm thickness)
red silicon chamber

무균

non-sterile

특징

wells 8

manufacturer/tradename

Grace Bio-Labs 621505

등판 두께

0.25 mm

외부 길이 × 너비

51 mm × 26 mm

포트 직경

1.5 mm

웰 직경 × 깊이

9 mm × 0.8 mm

웰

8

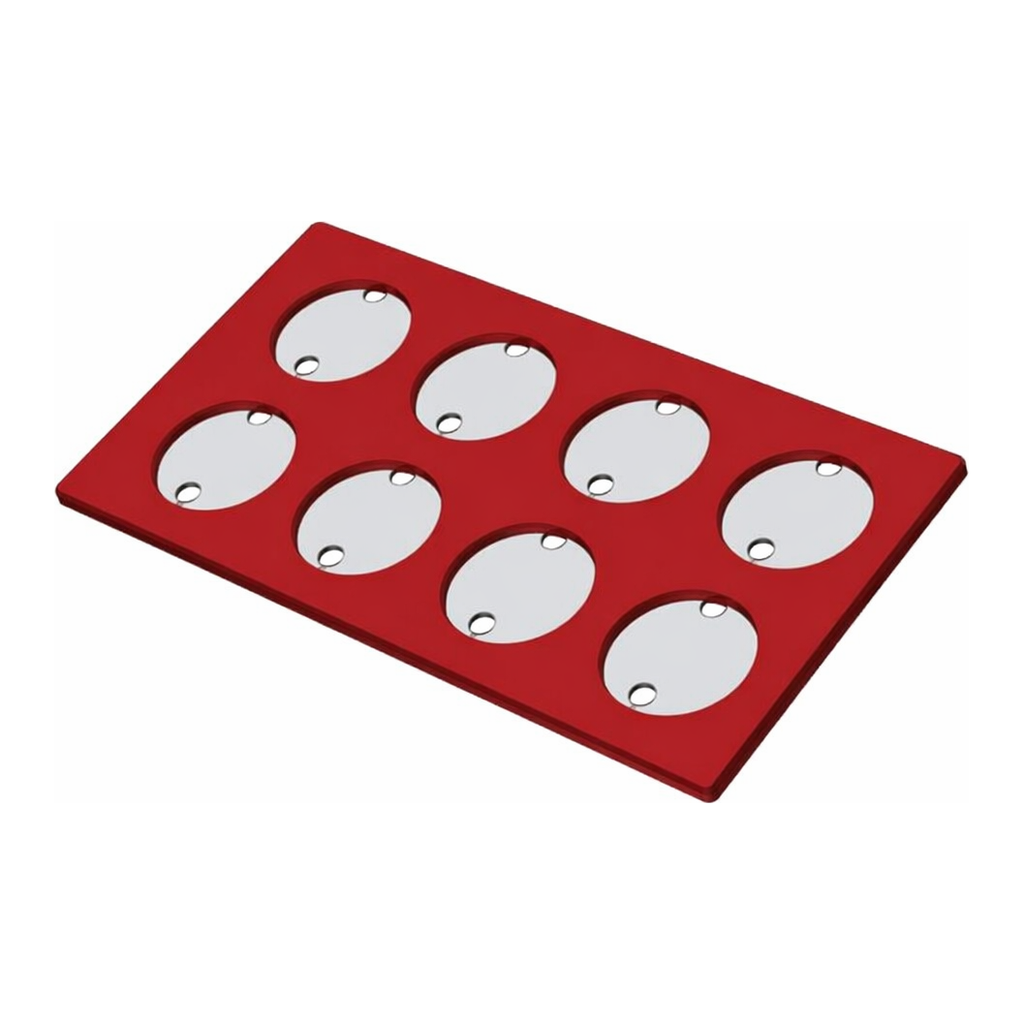

SecureSeal Hybridization Chambers are thin, silicone-gasketed chambers providing optimal surface-to-volume fluid dynamics for hybridization assays on large or multiple specimens and microarrays on glass or film coated slides. These adhesive-backed chambers are designed for single-use, very-low volume incubations and are ideal for autoradiographic, fluorescent or chemiluminescent end-point applications requiring small, enclosed fluid volumes. The SecureSeal Adhesive is a double sided tape with a silicone adhesive surface on one side (covered with a clear PET liner) and an acrylic adhesive on the other surface (covered with a paper liner).

SecureSeal chambers form removable, peel-and-stick enclosures to isolate specimens affixed to glass microscope slides. The chamber design minimizes friction, promotes reagent mixing, and facilitates uniform hybridization. Sealable access ports in the chamber surface allow for the addition and removal of reactants. SecureSeal adhesive bonds chambers to glass in seconds and removes cleanly and easily even after heating. Adhesive Seal Tabs create leak-proof chambers that are temperature resistant. Each package includes illustrated instructions for use and 120 adhesive port seals. Additional seal tabs are sold separately GBL629200). Press fit tubing connectors provide affordable and easy means to connect SecureSeal Hybridization Chambers to pumps and other devices for fluidic exchange.

Note: If you are using Cy5 of Alexa Fluor 647 direct-labeled DNA probes, please refer to fluorescent friendly chambers
